Stable Heavy Duty Cantilever Rack For Faster Throughput And Available Work Area

Stable Heavy Duty Cantilever Rack For Faster Throughput And Available Work Area
Features Gallery Product Description Request A Quote
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Steel Heavy Duty Cantilever Rack


Corrosion Protection Cantilever Rack


ODM Cantilever Racking System

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-CRS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description


 Stable Heavy Duty Cantilever Rack For Faster Throughput And Available Work Area

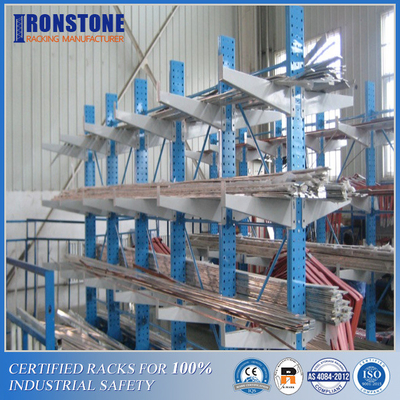

A cantilever rack is a type of storage system used for organizing and storing long and bulky items such as pipes, lumber, and steel bars. It is designed with arms or beams that extend horizontally from a vertical column, creating a structure that resembles a cantilever.




The main advantage of a cantilever rack is its ability to store items without the need for vertical obstructions, such as support beams or columns, that might hinder access to the stored materials. This allows for easy loading and unloading using forklifts or other material handling equipment.




Cantilever racks typically consist of the following components:


                      Stable Heavy Duty Cantilever Rack For Faster Throughput And Available Work Area 0


1. Vertical Columns: These upright structures provide support and stability for the rack system. They are usually made of heavy-duty steel and can be anchored to the floor for additional stability.



2. Arms/Beams: These horizontal members extend from the vertical columns and support the load. They are available in various lengths and can be adjusted or removed to accommodate different-sized items.



3. Brace Sets: These diagonal braces are used to connect the vertical columns together, adding rigidity and stability to the rack system.





                   Stable Heavy Duty Cantilever Rack For Faster Throughput And Available Work Area 1




Cantilever racks are often used in industries such as manufacturing, construction, lumber yards, and warehouses where long and heavy items need to be stored efficiently. They offer easy access to stored materials and can be customized to fit specific storage requirements.



When considering a cantilever rack system, it is important to take into account factors such as the weight and dimensions of the items to be stored, the available floor space, and any specific requirements for load capacity and accessibility.





Place of Origin China (Mainland) Brand Name Ironstone

Model Number

Type Heavy Duty Cantilever Rack Scale Heavy Duty Capacity 1000-3000kg/layer
Material Amercian Standrad Steel Color Customized Certification RMI/ AS4084/ CE/ ISO9001
Use long items storage Feature Corrosion Protection Width Customized
Height Custom As Client Export Experience 12 years Finish Painting/Hot dip Galvanized





Cantilever racks are the preferred racking solution for the orderly storage of heavy, bulky products in a variety of lengths and size proportions. Cantilever rack systems have horizontal load carrying arms that extend outward from a single column, whereas pallet rack designs include front columns.



Cantilever racks enable full horizontal access with no lost storage space owing to rack structure because they are not confined by front columns. This ease of access improves retrieval efficiency while reducing potential damage caused by horizontal or vertical obstructions.




Why Choose a Heavy Duty Cantilever Rack?


Our Engineering Department always designs and reviews Bluff Manufacturing's bespoke Cantilever Racks to ensure that the weight distribution of your products is safe and stable in the cantilever rack. In some circumstances, the structure of the arm or base may require additional size, strength, or bracing to properly store the load, depending on the shape, density, weight distribution, and overhang of your product. The evolution of the storage solution is determined by your needs, your site, and your product.





              Stable Heavy Duty Cantilever Rack For Faster Throughput And Available Work Area 2
