Warehouse Storage Rack Cantilever Racking Design Cases For Industrial Usage
Product details
The storage of longer and larger volumn products have ever put a lot of warehouse owners in dilemma until they meet cantilever rack. As an outstanding storage solution to long, odd-shaped products including lumber, pipe, metal bars and tubes, warehouse cantilever rack has solved the problem that standard pallet rack fails with front columns standing on the way. Dealing with hard-to-handle materials, cantilever rack leaves an easy and quick operation of product moving and placing.
Arm and column specifications
| Cantilever Arm Load Capacity (Kg) | |||||
| Arm Length(mm) | |||||
| Height | 800 | 1000 | 1200 | 1400 | 1600 |
| H120 | 1500 | 1380 | 1020 | 750 | 570 |
| H150 | 1500 | 1500 | 1250 | 1190 | 910 |
| H180 | 1500 | 1500 | 1250 | 1250 | 1250 |
| Cantilever Rack Column Capacity(Kg) | |||
| Specification(mm) | Height (mm) | Capacity(kg) | |
| Single-sided | Double-sided | ||
| 305*96 | 2500 | 6800 | 13600 |
| 3000 | 6400 | 12800 | |
| 3500 | 5900 | 11800 | |
| 4000 | 5600 | 11200 | |
| 4500 | 5400 | 10800 | |
| 5000 | 5100 | 10200 | |
| 5500 | 4500 | 9000 | |
| 6000 | 4200 | 8400 | |
| Cantilever Rack Column Capacity(Kg) | |||
| Specification(mm) | Height(mm) | Capacity(kgs) | |
| Single-sided | Double-sided | ||
| 350*96 | 5000 | 8500 | 17000 |
| 5500 | 8100 | 16200 | |
| 6000 | 7700 | 15400 | |
| 6500 | 7200 | 14400 | |
| 7000 | 6700 | 13400 | |
| 7500 | 6300 | 12600 | |
| 8000 | 5800 | 11600 | |
| 8500 | 5400 | 10800 | |
| Cantilever Rack Column Capacity(Kg) | |||
| Specification(mm) | Height(mm) | Capacity(kg) | |
| Single-sided | Double-sided | ||
| 410*96 | 5500 | 12500 | 25000 |
| 6000 | 12000 | 24000 | |
| 6500 | 11000 | 22000 | |
| 7000 | 10000 | 20000 | |
| 7500 | 9500 | 19000 | |
| 8000 | 9200 | 18400 | |
| 8500 | 8700 | 17400 | |
| 9000 | 7500 | 15000 |
|
Ranging from light duty to heavy duty, Ironstone can offer you customized cantilever solutions with various sizes and configurations that can meet your specific storage demands.
Required information before design
For accurate design, we need the following information from our clients:
(a) Warehouse layout (including length, width, ceiling height), inside constructions such as pillars and doors;
(b) Storage unit specifications such as package size, weight, and shape;
(c) Required rack types ( single-sided or double-sided?, column height, arm length and quantity, bracing distance, etc).
(d) Expected surface treatment ( color, powder coated or galvanized).
(e) Required accessories (eg. column protector, wire decks, support bars, brackets, etc).

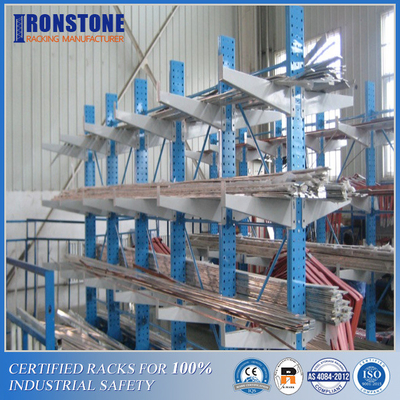

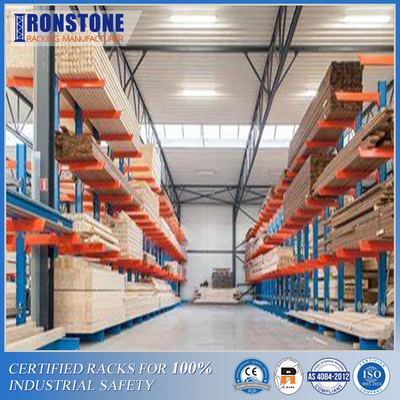

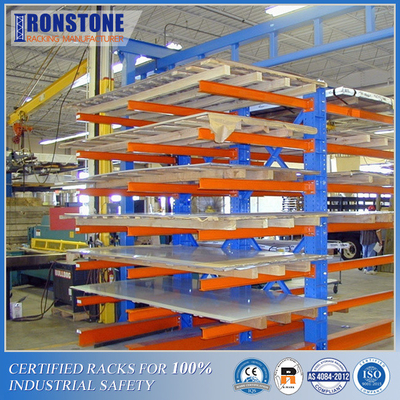

Ironstone design and installation cases
As a professional rack manufacturer, Ironstone will offer you free CAD design that fits into your warehouse layout and storage requirement. Our services include but are not limited to consultation, design, production, delivery, installation, and maintenance. Most of all, we can offer you excellent quality products at unbeatable prices, especially for large orders.
