ODM And OEM Supported Cantilever Rack Systems With Free CAD Design For Bulky Storage

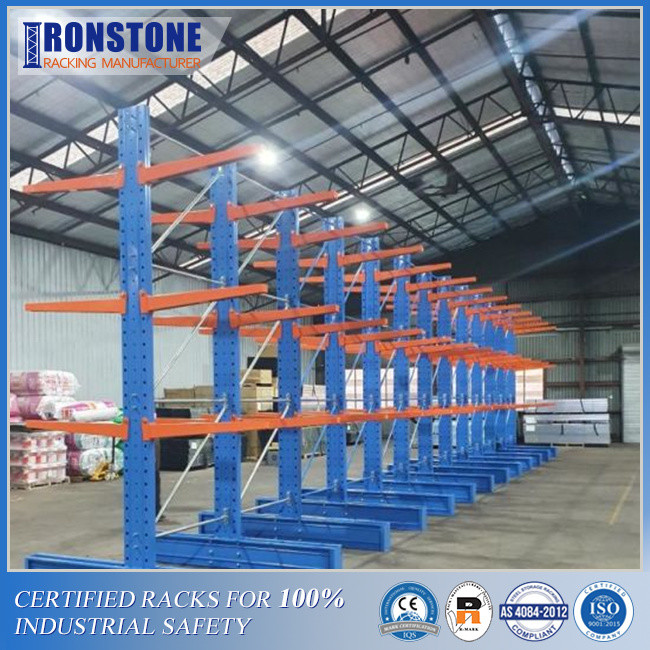

Cantilever rack system, a freestanding storage solution, has horizontal weight-bearing arms and vertical columns. Accessible directly from the front, the cantilever system is friendly to fast loading and unloading of bulky items with long shapes and volumes without interferences.
| Product | Categories | Specifications | Surface treatment | Application cases |
|
Cantilever racking system |
Single-sided cantilever Double-sided cantilever Roll-formed cantilever Structural cantilever |
Height: 2.5m~9.0m Load capacity: 4t~15t Adjacent two holes distance: 50~100mm |
Galvanized, Powder coated |
Furniture storage, Large board and sheet storage |
As a versatile system, cantilever racks can store large furniture such as tables, couches, mattresses, beds, carpets and cabinets which also called furniture racks in some locations. Using cantilever racks, either single-sided or double-sided, any kind of warehouse can be utilized with proper design.
Ironstone provides ODM and OEM support for cantilever racking systems that solve your hard-to-store product problems easily.

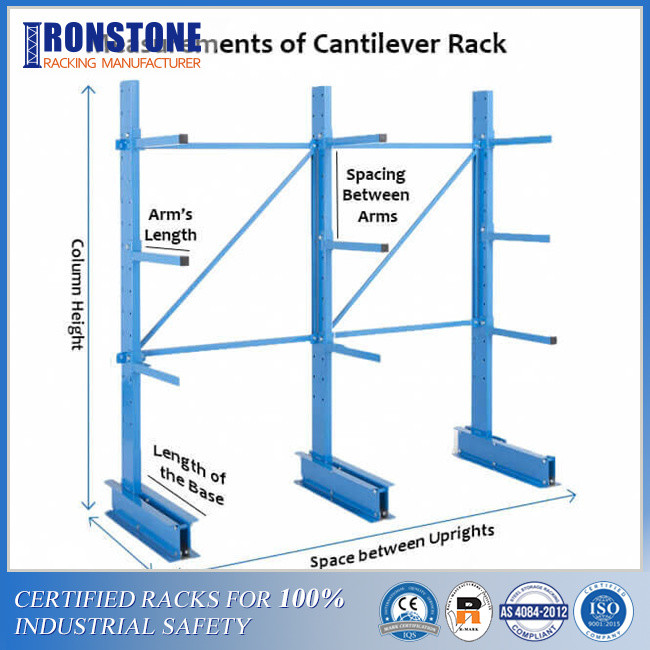

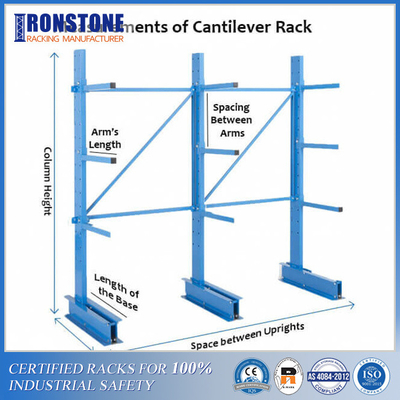

Cantilever rack columns can be made from roll-formed and structural steel. The commonly used column width ranges from 250mm to 340mm with different depths offering versatile weight capacity. The holes on the columns are evenly distributed for arms adjustment.
Cantilever rack baseplates have single-side and double-side types installed at different sites. The base length should be longer than the related arm for structural stability.

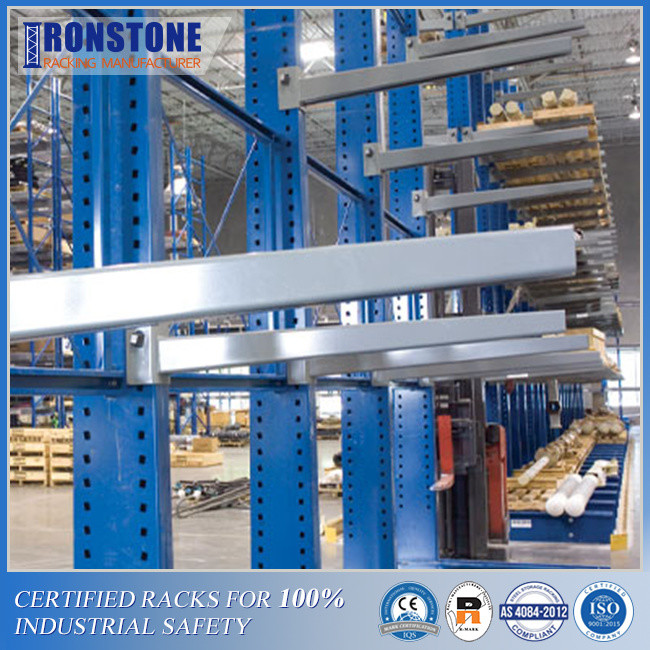

Cantilever arms are installed at the uprights for weight bearing with different lengths and vertical distances. You can choose the proper cantilever arm material, quantity, and length according to your load weights, types, and dimensions. Ironstone cantilever arms are engineered with straight or inclined shapes as customer's request. Ironstone rotation-proofing arms can resist accidental impacts and crashes.
