Warehouse Lumber And Pipe Storage Heavy Duty Cantilever Racking Systems
Introductions

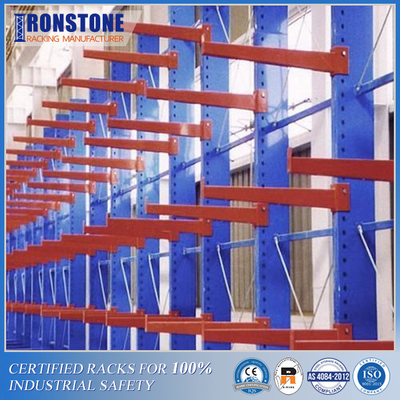

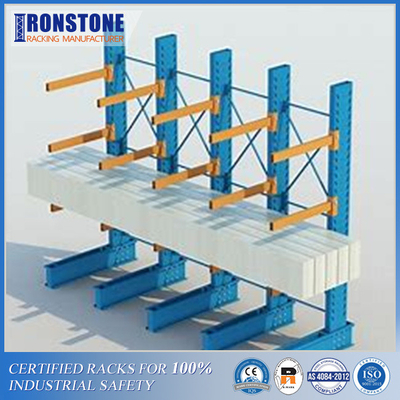

Cantilever rack has vertical posts with stable bases and horizontal arms extended out to store products. Vertically, arms can be adjusted to different distances up and down.Two columns with connecting bracings form a basic storage unit of rack system, called start bay. One single post ajoint with bracings forms an add-on bay. One start bay and many add-on bays permit continuous storage positions for long-length, large bulky items.And the cantilever rack is easy to install, indoor and outdoor storage can be carried out, with strong applicability.
Specifications of cantilever rack
| Name | Cantilever rack | Material | High Strength Steel |
| Arm levels | 2~10 tiers per bay | Color | (RAL Code) Green, Orange, Blue, Yellow, Etc. |
| Upright Frame Height | 2500mm~10000mm | Weight Capacity | 200~1200kg per arm |
| Arm Length | 800mm~1500mm | Frame Distance | 500mm~1600mm |
| Finish | Epoxy Powder Coated or Hot-dipped Galvanized for Corrosion Prevention | ||
| Usage | Long and Bulky Cargoes Storage | ||
| Package | Plastic stretch film, Corrugated paper, Cartons, Wooden bars, Crates, Metal strips, etc. | ||
| Accessories | Bolts and nuts, upright protectors, decks, etc. | ||
| Certification | RMI/AS4084-2012 /CE/ ISO9001 | ||
| Delivery Time | 7~25 days as per order quantity | ||
| Assemble & Installation | Detailed assembly instructions or dispatching installation engineer for project installing at site. | ||

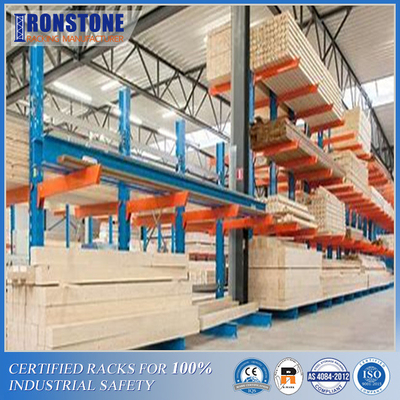

Products that are suitable for cantilever racking systems
• Lumber
• Steel or PVC Pipe
• Furniture
• Wood or plywood sheet
• Long, heavy materials
Features
♦ Forklift friendly with easy loading and unloading.
♦ High space utilization rate for irregularly shaped large volume product.
♦ Both single-sided and double-sided cantilever racks are available and offers flexible option.
♦ Large bases can also be used for product storage positions.
♦ Quick and easy installation and reconfiguration.
♦ Both powder-coated and galvanized surface treatments can be customized as you wish.
Limits
► Relatively expensive initial investment compared to the selective rack.
► Not so friendly to pallet product storage.
► Enough aisle space should be left for material handling.
