Safe Loading And Retrieval Push Back Racking Storage System

USD $0.85/KG
Safe Loading And Retrieval Push Back Racking Storage System
Features Gallery Product Description Request A Quote
Name: Push Back Rack
Material Type: High Strength Steel-/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Design, Installation, Maintenance
High Light:

Adjustable Push Back Racking System


15m Push Back Racking System


Q355 steel push back storage rack

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: LIFO-PB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Adjustable High-Density Gravity Push Back Storage Rack for Convenience





Push back rack is a rack system with high density and selectivity. It provides a variety of choices to suit certain purposes and can be a useful storage solution for a wide range of products.



Ironstone specialists can examine your space and products to determine whether a pushback rack is the best storage solution for you, and ultimately give you the best material handling solution and layout. Read on to find out how pushback rack works, its major features, its benefits, and if it's perfect for your business.




Name Push back rack Material Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available




How It Work?



Push back rack employs carts that move along sloping tracks. Each pallet is put onto a cart from the system's front. The first pallet is progressively moved until it is aligned with the next available cart using the next pallet. When the front pallet is unloaded, the next pallet glides forward to be picked.

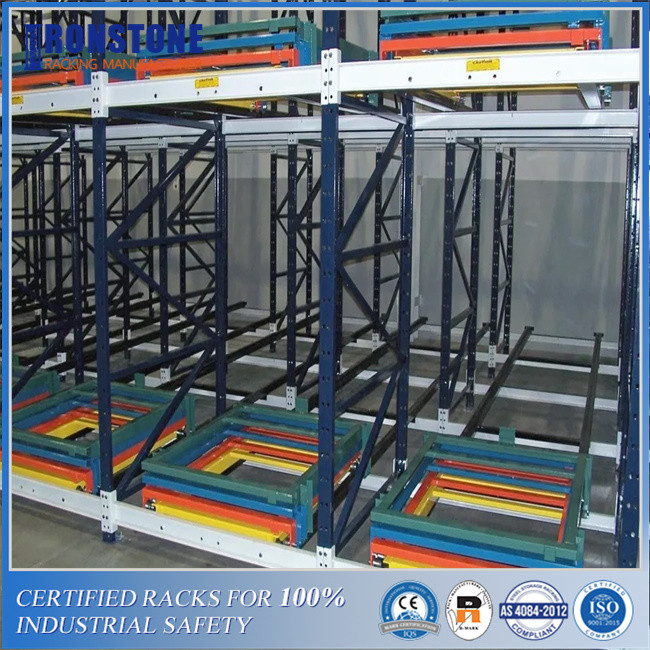

Safe Loading And Retrieval Push Back Racking Storage System 0


Key Features




♦ Designed for inventory that is last-in, first-out.



♦ The warehouse cube is used to limit the amount of aisle space necessary.



♦ Density is high.



♦ 2-6 pallets are possible.



♦ Can be as high as required.



♦ Bay widths can be adjusted to accommodate single-wide or double-wide pallet rows.

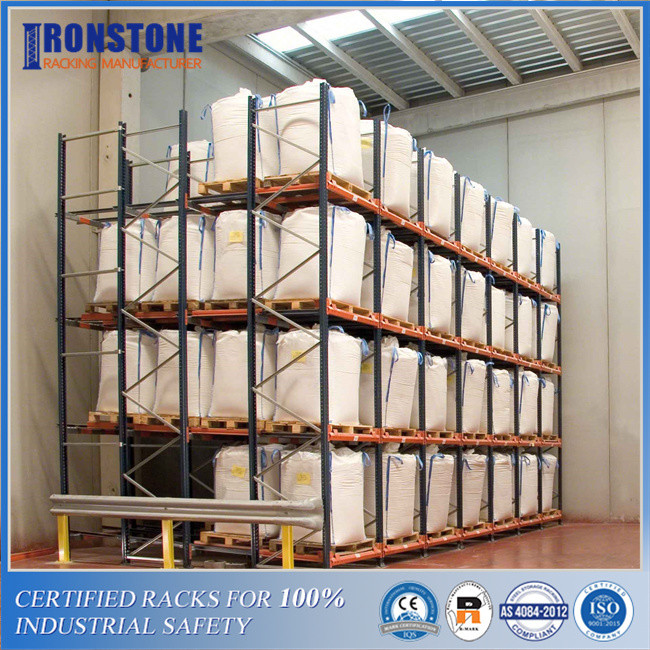

Safe Loading And Retrieval Push Back Racking Storage System 1




Is A Push Back Rack System Appropriate for Your Business?




Push back racks can provide numerous advantages to the correct operation. Discover which procedures a push-back rack is best suited for.


► Pushback racking is ideal for businesses that store many pallets of the same SKU. Each lane may carry a single SKU, which makes choosing more efficient.


► Because of its high density, it is suited for use in high-value storage spaces such as coolers and freezers.


► Furthermore, companies that use high-quality pallets will benefit from this system. In order for this rack system to function properly, high-quality pallets must be used.

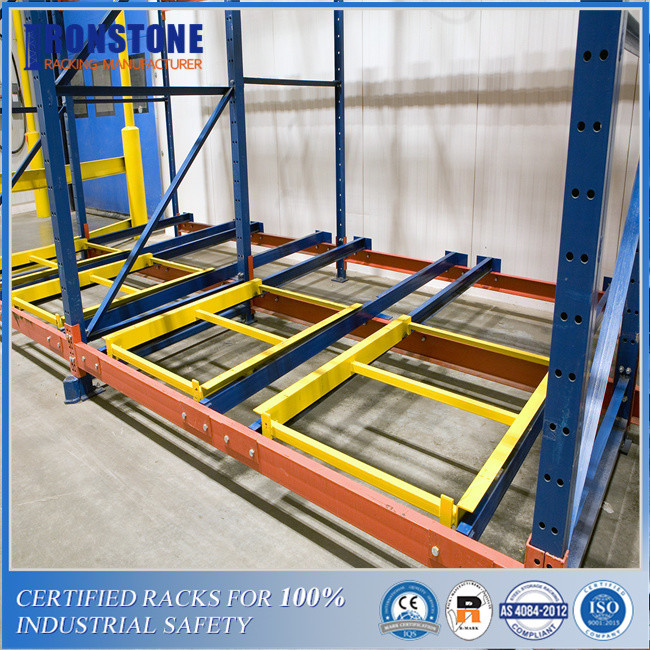

Safe Loading And Retrieval Push Back Racking Storage System 2







Push back rack may be advantageous to your operation if you require high-density storage.



♦ High selectivity, reduced pick time, and personnel costs.


♦ High density within each bay.



♦ Loading and unloading require only one aisle, boosting overall warehouse density.


♦ Because lift trucks do not need to drive into the system, they cause less truck and product damage than drive-in systems.





Warehouse CAD Layouts for Efficiency




With our warehouse planning services, we can help you speed up the process of creating a warehouse racking system. Quality CAD designs make the permitting process easier and help you make the most of your warehouse space. Starting without a proper CAD Layout might cause a lot of issues during installation, resulting in inefficiencies or usability issues in your warehouse space.



This is especially true for large warehouse racking operations. Our warehouse planning experts will create complete CAD drawings of your space, as well as permit-ready drawings for your pallet rack installation.

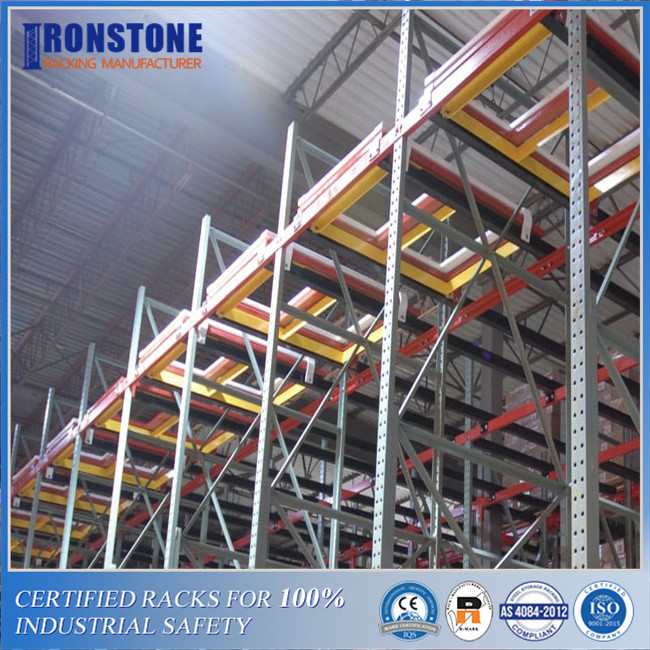

Safe Loading And Retrieval Push Back Racking Storage System 3
