Advanced Gravity Push Back Racking System With Excellent Productivity

Advanced Gravity Push Back Racking System With Excellent Productivity
Features Gallery Product Description Request A Quote
Name: Push Back Pallet Racking System
Material Type: High Strength Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 600kgs~2000kgs/level
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

1000mm Beam Push Back Racking


Push Back Racking System 700mm Depth


1000mm Beam push back storage

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: PBPRS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Effective Push Back Pallet Racking System with Increased Productivity and Safety




Push-back pallet racking is a high-density storage solution using nested wheeled carts that move along a slightly inclined track attached to standard pallet racking. Pallets are loaded and unloaded from the same side for a LIFO (last in, first out) stock cycle. Push-back pallet racking is typically designed to store pallets from 2 to 6 deep, double the storage capacity of standard selective racking.




Name Warehouse rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation

Detailed assembly instructions are available

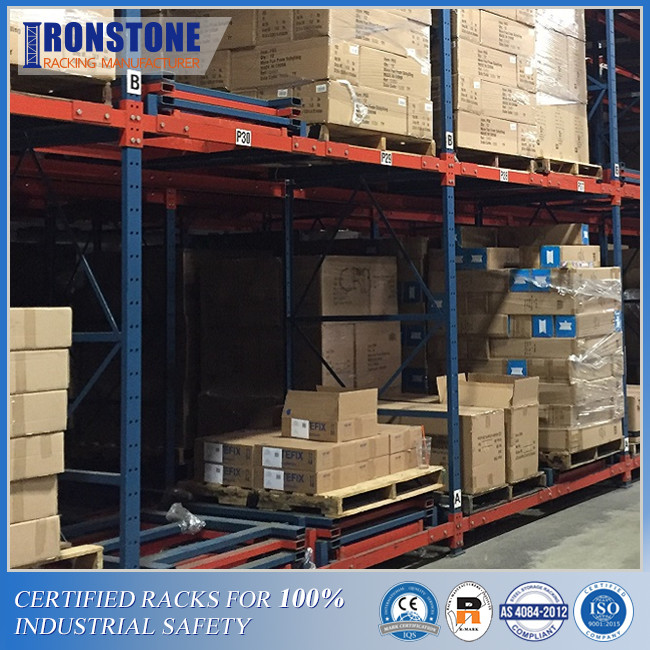

Advanced Gravity Push Back Racking System With Excellent Productivity 0




For optimum productivity and to ensure worker safety, your warehouse team should be fully trained in proper push-back racking operating procedures. When operating a push-back pallet racking system, staff should follow some of the following basic procedures:



  • Ensure all forklift operators are well-trained.


  • Carry out pallet quality checks.


  • Use GMA-style wooden or plastic pallets.


  • Ensure no veneer is loose or falling off.


  • Check product loads, check loads for overhang and secure loose cartons, flaps, or shrink wrap.


  • Ensure load weight is below-rated load capacity.

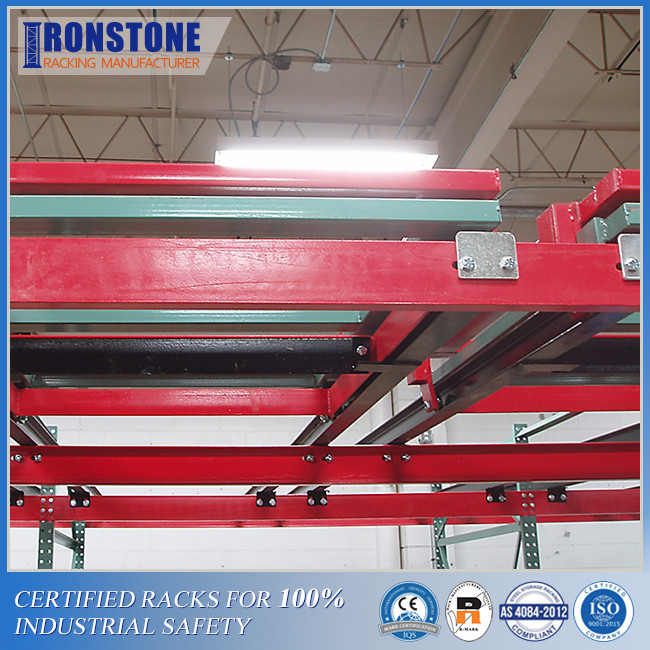

Advanced Gravity Push Back Racking System With Excellent Productivity 1




Proper Loading in Push Back Pallet Racking System:



1. Forklift - lift the pallet load approximately 3 to 4 inches above the first car - enter the system and place the pallet in the center of the first car. Exit the system slowly.



2. Align the base of the 2nd pallet with the base of the 1st pallet, just above the exposed trolley, and as you place the 2nd pallet on top of the 2nd trolley, gently push the 1st pallet backward and so on until you reach the last pallet in the system.

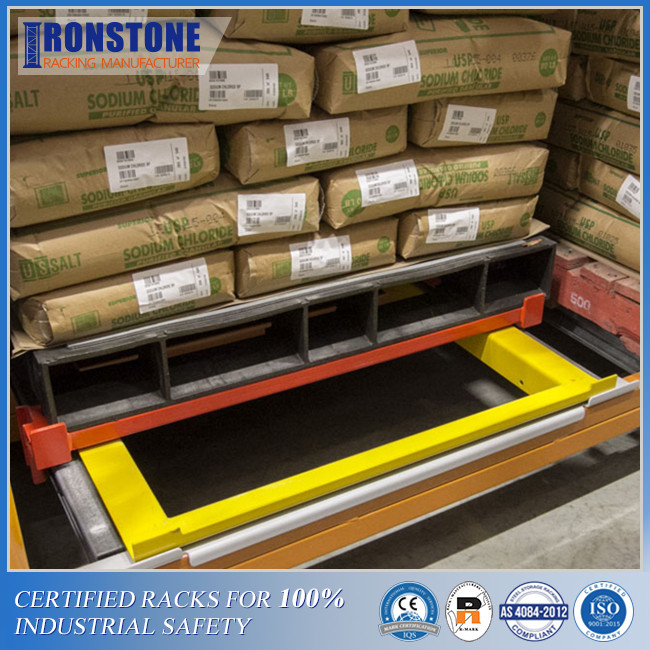

3. The last pallet will not sit on the trolley - it will sit directly on the push-back rail. Again making sure the load is in the center of the lane, lower the last pallet onto the track, making sure it is behind the pallet stop.




Proper Unloading in Push Back Pallet Racking System:



1. Central forklift with the front pallet of the system, slowly enter the lane. Lift the front pallet 3-4 inches to clear any pallet stops or obstructions.



2. Slowly extract the pallet, allowing subsequent loads and the trolley to slide forward to the aisle face at a controlled speed.



3. Unload the remaining pallets of the system in accordance with step 1.
