Easy Integrating Gravity Push Back Rack For High Efficient Storage

Easy Integrating Gravity Push Back Rack For High Efficient Storage
Features Gallery Product Description Request A Quote
Name: Push Back Pallet Rack System
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Design, Installation, Maintenance
High Light:

LIFO Push Back Racking System


1000kgs Roll Back Racking


LIFO pallet rack back

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: LIFO-PB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

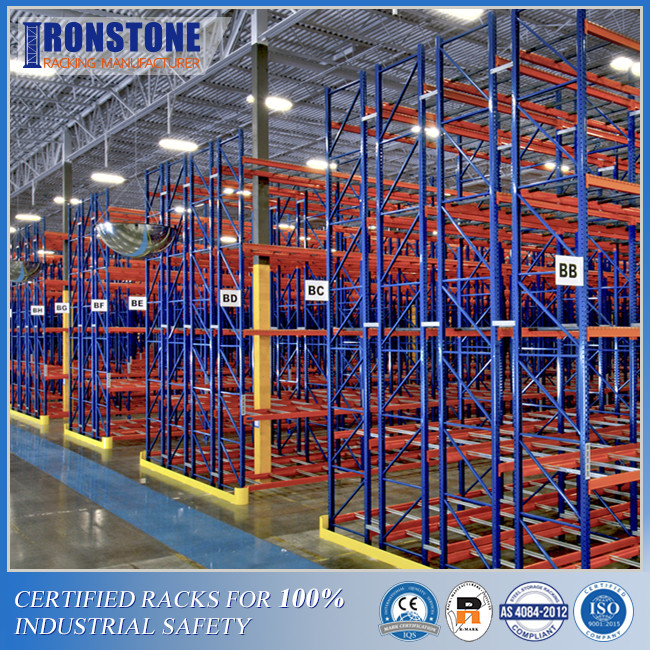

High-Density Effective LIFO Push Back Pallet Rack System for Industrial Storage




Push-back racking is a high-density pallet storage system using a selective racking structure with a track and cart system. Pallets are placed on trolleys and pushed backward to create storage from 2 to 6 pallets deep.

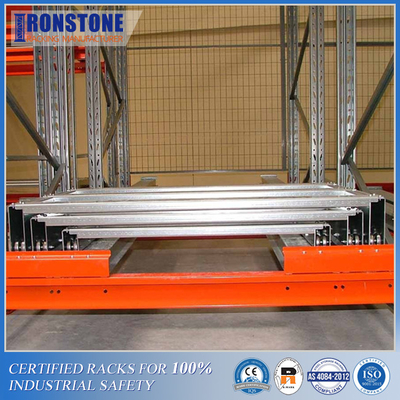

Pallets are placed on nested trolleys or pallets that can be pushed backward along the racks themselves. The rails are inclined and fed by gravity so that the most recently added load is always at the front of the rack. The pallets are easily loaded and unloaded for "LIFO" (last in, first out) rotation.



Picking is done by removing the front pallets, which allows the back of the pallets to advance. The advantage of the push-back rack-over-drive or rack-over-drive type is the ease of access. Each pallet on each level can be a different SKU without having to use only the entire lane and can provide up to 90% more storage space than selective racking.




Name Push back rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available




Easy Integrating Gravity Push Back Rack For High Efficient Storage 0



How does push-back pallet rack work?

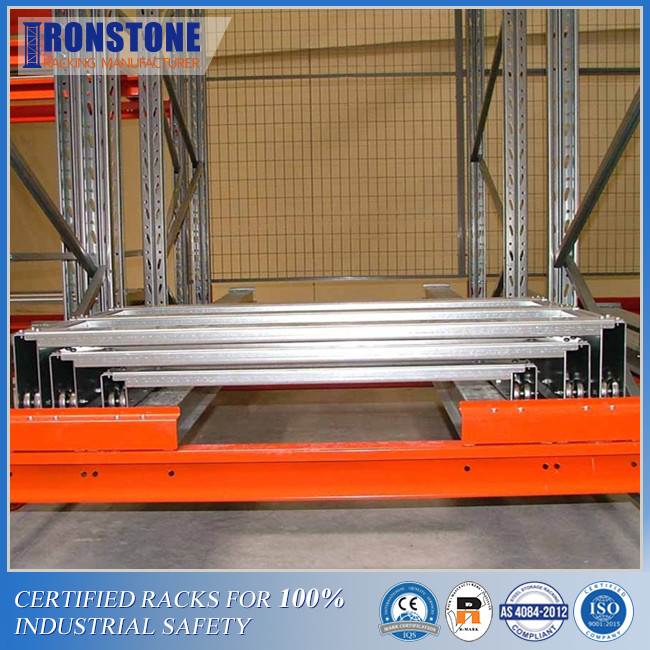

In push-back racking, the racking uses trolleys that move along inclined tracks. Each pallet is loaded onto the trolley from the front of the system. To use the next pallet, the first is pushed slowly until it is aligned with the next available trolley. When the previous pallet is unloaded, the next pallet slides to the front for picking.





Characteristics of Push Back Pallet Rack System:



  • Designed for last-in, first-out inventory


  • Reduces the amount of aisle space required by using warehouse cubes


  • Low density


  • Range from 2-6 pallets


  • Will not have high visibility


  • Variable bay width can be used to accommodate single or double-width pallet rows​



Easy Integrating Gravity Push Back Rack For High Efficient Storage 1

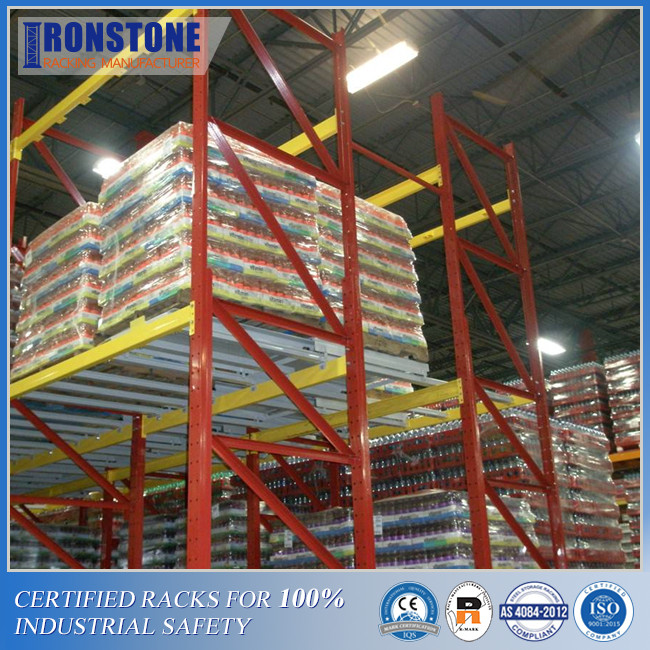

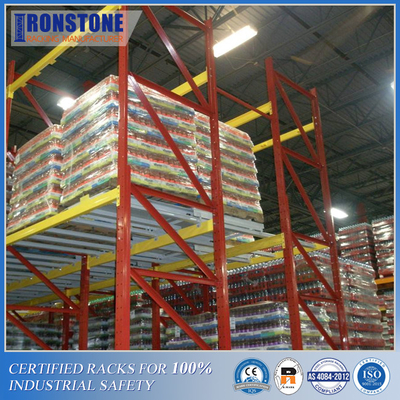

In short, push-back racking increases storage density and allows a high level of storage space in a much smaller area. When a new pallet is added, the current load is pushed back and the new pallet takes its place at the front.



Push racking is a great option when you are looking for a medium to high density storage solution. It allows for more efficient use of space as the storage area is compressed into a tighter area than traditional standard pallet racking, which may require many separate rows to store the same number of pallets.

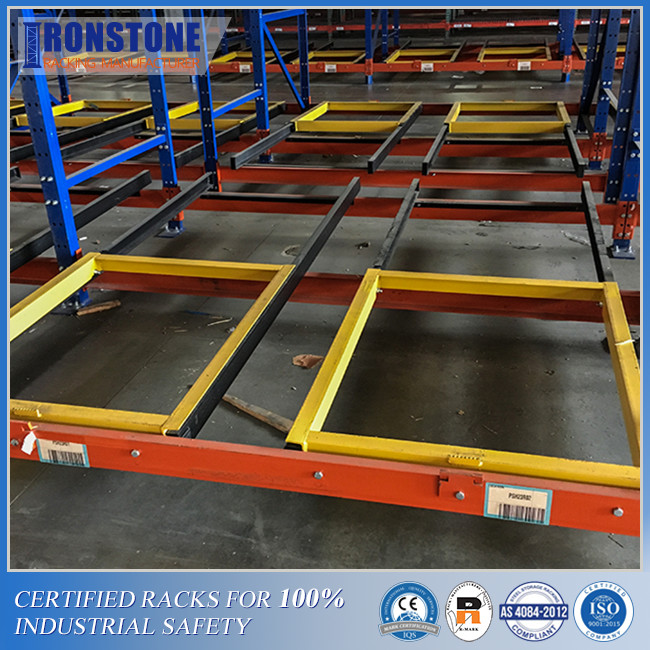

Push-back pallet racking combines the density of drive-in racking and single lane of selectivity. Wheeled trolleys are stacked in the picking aisles of each lane. A pallet is placed on the top trolley, then the next pallet is loaded and the forklift gently pushes it back to reveal the trolley below. This process continues until all the trolleys have been used and the last pallet is placed on the rails. When the pallets are picked up, the back pallets automatically flow forward, producing an efficient process.
