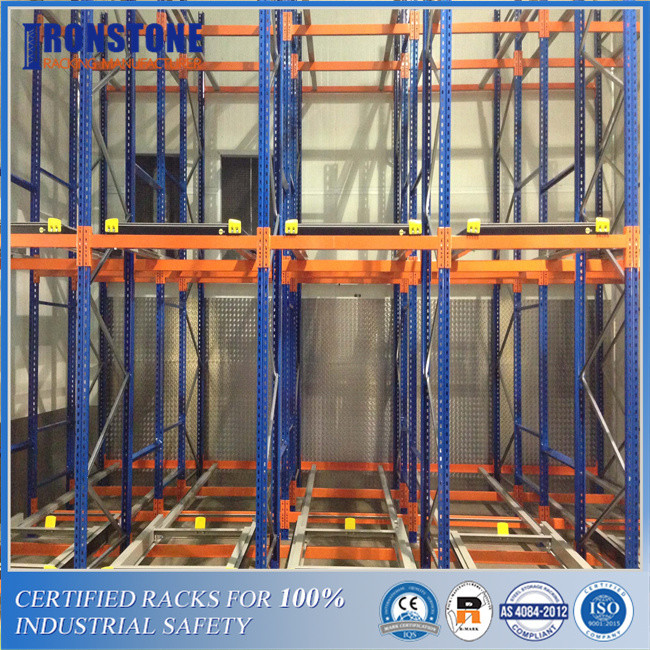

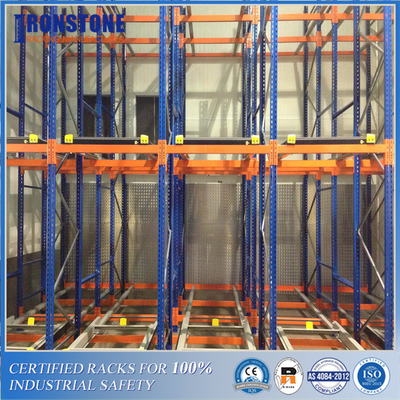

Warehouse Push Back Pallet Racking System For Flexible Storage

Warehouse Push Back Pallet Racking System For Flexible Storage
Features Gallery Product Description Request A Quote
Name: Push Back Pallet Racking
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Design, Installation, Maintenance
High Light:

Push Back Pallet Racking System


Adjustable Q355 Pallet Racking System


2000kgs Push Back Racking System

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: LIFO-PB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Adjustable Warehouse Push Back Pallet Racking System For Flexible Storage





Pushback Pallet Rack systems allow forklift operators to store goods by loading from a single aisle. They are available in 2,3,4,5, and 6 Deep configurations. Pallets of merchandise are loaded onto Pushback carts to operate Push back rack systems. To make place for more merchandise, these carts are pushed upstream in the Pushback rack lane on structural steel rails.



The pallet is pushed one pallet position deeper in the pushback rack system as it is loaded from the forklift aisle side of the system. A Pushback Rack system/ Lane with up to six pallet positions can be made by repeating this technique. The final pallet will rest directly on the Pushback flow rails in the flow lane.



As an illustration, this means that a system with two (2) deeps will only have one cart. In the closest position to the aisle, the first pallet will rest directly on the pushback rails. There will only be two carts in a three (3) deep system. Once more, the first position will rest directly on the Pushback rails. The same general principle holds true for all Pushback system depths up to six deep.

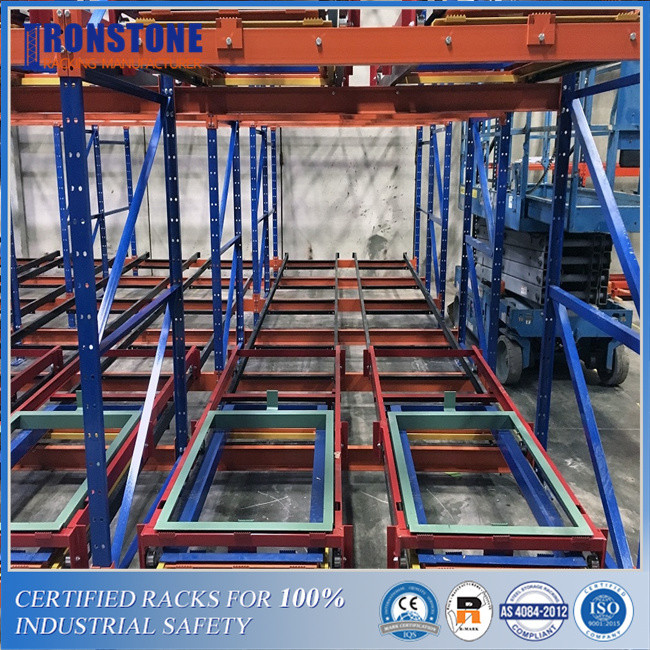

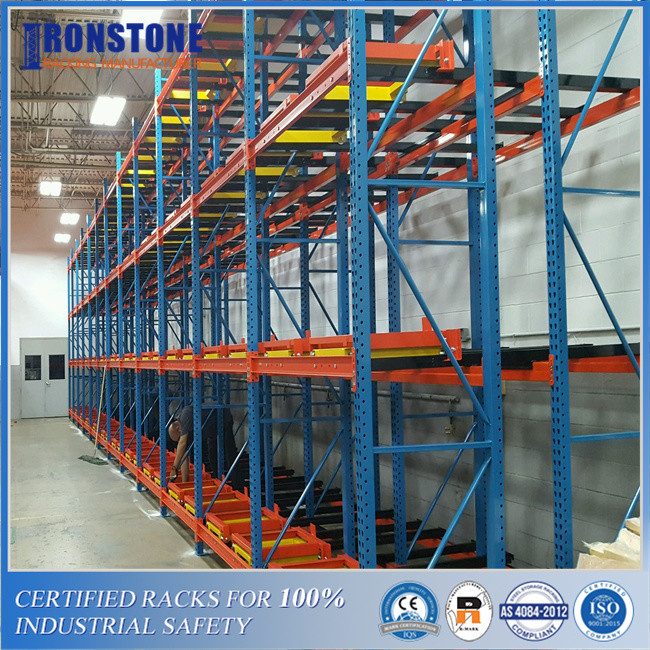

                     Warehouse Push Back Pallet Racking System For Flexible Storage 0Warehouse Push Back Pallet Racking System For Flexible Storage 1




You only need to lift the front pallet slightly and back up with the forklift to remove it from a pushback rack system or lane in order to choose or pluck specific products from it. All of the pallets moving upstream in this procedure fall automatically from gravity. With the help of a Last-In-First-Out (LIFO) inventory management system, this method enables simple accessibility.



Name Push back rack Material Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available




In comparison to other conventional pallet rack systems, a pushback rack system allows you to store a lot more goods in your warehouse while preserving product selectivity and drastically lowering the amount of travel aisle space needed! When storing your merchandise, the pushback rack is far more flexible than the more conventional drive-in pallet racking.



Each storage lane on Pushback racks moves independently from the products placed above or below it. Without disturbing other products above or below, several pick facings and a variety of SKUs can be stored and retrieved. In contrast to Drive-In Rack systems, Pushback Rack systems never require forklift operators to enter the rack.

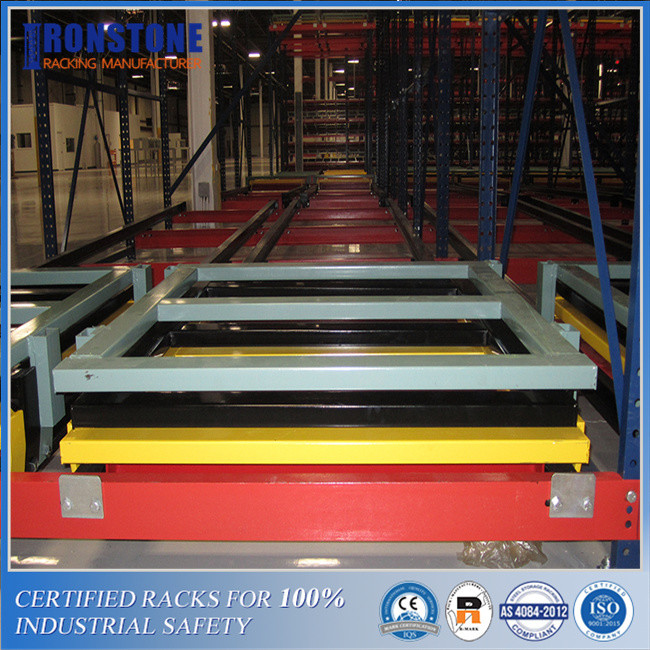

                                                                       Warehouse Push Back Pallet Racking System For Flexible Storage 2


In the end, storing more stuff in less space saves you BIG MONEY! Utilizing the cubic feet in your warehouse while minimizing the necessary forklift aisle area is possible with the Pushback rack system.







♦ Improved cube utilization of our warehousing area.


More product storage than conventional selective pallet racks by up to 90%.


Up to 300% more Selectivity than drive-in pallet racks.


Faster pick rates are produced by enhanced selectivity and high store density.


Visual inventory is made simpler by color-coded carts.


For quicker product access, you can keep different SKUs on multiple levels.


Last-In, first-out (LIFO) inventory control.




Effective Warehouse Layout and Design


At Ironstone, we use a variety of tools to provide our customers with designs and layouts that are unparalleled, including the most up-to-date CAD computer technology and the good old-fashioned pen, pencil, and full pot of coffee. Modern systems integration consulting is also offered by Ironstone's Automation Team.



Have a project that needs assistance with layout, design, engineering, equipment, controls, and programming? For companies searching for a turn-key solutions provider, Ironstone specializes in offering systems integration, warehouse management, and logistics solutions. We can work with you to develop a personalized distribution or fulfillment strategy that is more effective.




Warehouse Push Back Pallet Racking System For Flexible Storage 3




At Ironstone, customer service is the top priority. We do this through creative and effective design and project assistance. Our layout and design specialists are excellent at evaluating your facility to guide you toward the finest solutions. You may maximize the use of your facilities with the help of this supplementary service without going over your budget.



When you give us your business, we want you to feel confident that we'll be there for you when you need us because we have the staff, the know-how, and the technology.
