Immediate Access And Visibility Push Back Rack System With Picking And Loading

Immediate Access And Visibility Push Back Rack System With Picking And Loading
Features Gallery Product Description Request A Quote
Name: Push Back Pallet Rack
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Design, Installation, Maintenance
High Light:

RMI Gravity Push Back Rack System


RAL Push Back Rack System


3000kg Push Back Warehouse Racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: LIFO-PB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Industrial High-Quality Gravity Push-Back Rack System



As a kind of gravity racking system, push back rack is also known as press-in or push-in rack. It is composed of bracing, upright and a number of trolleys, the trolley is fixed on a guide rail, which has a certain angle with horizontal plane (generally about 3 degrees). This system is a high-density storage solution and is designed for last-in, first-out (LIFO) inventory management.



Push Back Racking is an efficient, multi-product storage solution that utilizes the last-in, first-out method (LIFO), which allows for increased density per SKU. Push Back Racks decrease replenishment times drastically since the next pallet flows forward after the first pallet is picked.



Name Push back rack Material Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available







When stocking, the forklift pushes the trolley with the cargoes stored to the rear, and then places the cargo to be stored on the trolley that has been vacated. When picking up, the cargoes on the front trolley are taken away, the rear trolley under the action of gravity will automatically slide out to replace the position of the cargoes that have been shipped, so as to complete the picking up action.

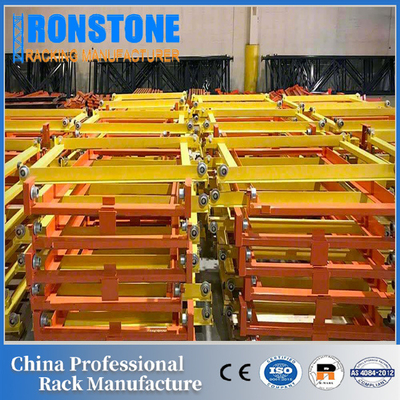

When no cargo are placed, the trolley is freely stacked together. Due to the height difference, the movement of each trolley is not affected by the other trolley.




Immediate Access And Visibility Push Back Rack System With Picking And Loading 0







1. Usually used for a warehouse where storage space is extremely limited, but must increase the storage capacity of it, or places where products picking requirements are not high.



2. Put back rack system is composed of tray trolley and other typical structure, tray trolley has the characteristics of flow, products from one end of the rack in and out, and follow the advance after the order, which is suitable for large quantities of less varieties of cargoes storage.



3. When storing and transporting products, the forklift only operates at the lower end of the rack without entering it. This kind of rack has the typical characteristics of high storage density and fast storage and transportation speed.



4. Companies that store multiple pallets of the same SKU are good candidates for pushback racking. Each lane can hold a particular SKU, making picking more efficient.







1. When the number of pallets of a product is large and does not require "first in, first out" management, this rack can simplify the work procedure, the benefit of which is quite significant.



2. It can shorten the picking time, does not need special handling equipment.



3. because the storage area is more and the channel is less, the space utilization rate and productivity are very high, and the access is also more flexible and convenient.



4. Push back rack system can avoid cargo damage in loading and unloading operations with high-density storage racks.
