Easy Retrieval Push Back Rack System For LIFO Inventory Rotation

Easy Retrieval Push Back Rack System For LIFO Inventory Rotation
Features Gallery Product Description Request A Quote
Name: Push Back Pallet Racking System
Rack Type: Dynamic Semi-automatic Storage Racking System
Stock Rotation: First-in And Last-out(FILO)
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
High Light:

Ironstone Push Back Racking System


Push Back Racking System ODM


ODM push back shelving

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: EC-PB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Economic Customizable Push Back Pallet Racking System for Industrial Storage





Choosing the right type of warehouse racking system is essential to maximise your storage space and increase the efficiency of your operation. Many factors need to be considered, such as the amount of storage, the speed of loading and unloading, and whether your products require specific storage.



If you have a lot of things to store and you need easy access to them for quick rotation, a push-back racking system may be ideal.




Product name Push back pallet rack Material High strength steel
Rack layers Customized ranged from 2 to 15 Rack type Gravity taken racks
Upright frame height 2500mm~15000mm Weight capacity 500~3000kg per level
Suitable pallets Standard pallets and customized sizes Storage depth Customized, 2 to 6 pallets depth
Finish Epoxy powder coated for corrosion prevention
Feature Palletized cargoes storage and retrieval facilitated with trolley
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available




Easy Retrieval Push Back Rack System For LIFO Inventory Rotation 0

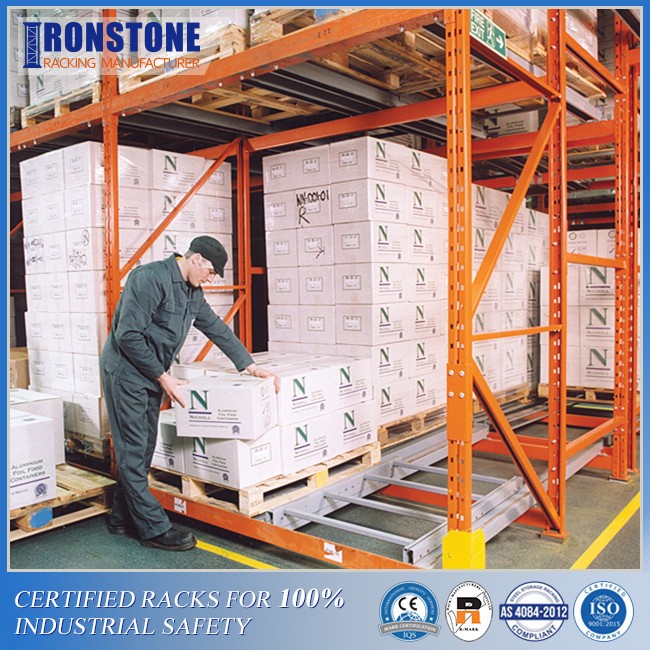

With stacking racks, the pallets are placed on trolleys and rails. When storing a new pallet it pushes back the previously stored pallet. Pallets can be stored from 2 to 6 pallets deep. When unloading the rear push rack, the operator lifts the pallets off the track, which is tilted to facilitate pallet retrieval, and the remaining pallets are moved forward. The pallets are removed one after the other until the aisle is cleared.



This process conforms to the LIFO (last in, first out) method, since the earlier loaded pallets being pushed back for newer ones.





What Are Push Back Racking Systems Used for?




Push-back rack systems are ideal for a wide range of industries and applications, including:



  • Perishables


  • Staging


  • High-density storage


  • Beverages


  • Pharmaceuticals


  • Manufacturing


  • Automotive



Easy Retrieval Push Back Rack System For LIFO Inventory Rotation 1




Benefits and Limitations of Push Back Racking Systems



Push back racking system is efficient and versatile, with some minor limitations in terms of available options. They can help you make the most of your space without increasing processing time or slowing down product cycles. The following is an analysis of the pros and cons.





Benefits of Push Back Racking System:



  • Higher density


  • Compatible with standard forklift trucks


  • Pallets move in order of gravity


  • Faster loading and unloading than other systems


  • Easy stock rotation


  • Reduces stock loss


  • Save up to 90% of warehouse space compared to traditional pallet racks


  • Low maintenance costs


  • Can be used with other types of racking systems




Limitations of Push Back Racking System:



  • Some pallets will be behind others, limiting choice


  • Limited compatibility with expiring products




Applications of Push Back Racking Systems:



  • Fragile goods: Operators do not need to enter the racks to remove products, reducing the risk of damage to inventory. If you have fragile items in your inventory, this feature is essential.


  • High density and high rotation storage: Push back racking systems allow you to store more items with better selectivity than other high density systems. If you need to store and quickly access large quantities of products, push-back racking is an ideal solution.


  • Limited space: If optimizing your warehouse space is necessary, a push back racking system is the right choice. It allows you to store more products in less space, while providing you with a great option for your small facility with limited available space.


  • Cold Storage: Cold storage and other temperature controlled storage areas can be expensive to operate and maintain. If you have a cold warehouse, you can use a push-back racking system to store more products and therefore require less space to accommodate your inventory.
