Labor-saved Push Back Industrial Rack System With High-speed Access

Labor-saved Push Back Industrial Rack System With High-speed Access
Features Gallery Product Description Request A Quote
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

FILO High Density Warehouse Storage Systems


Warehouse Storage Systems ODM OEM


FILO ODM storage racking solutions

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: HD-PB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Push Back Pallet Racking For High Density Storage Solution




Push back pallet rack is a semi-automated storage solution by making use of gravity. It contains inclined rails and a series of nested wheeled carts. Pallets will be placed on carts and these carts will move up or down angle rails when pallets are loaded or unloaded from the system.



Push back pallet racking system is ideal for warehouses in which space utilization and storage density are crucial such as cold storage and climate-controlled environments.

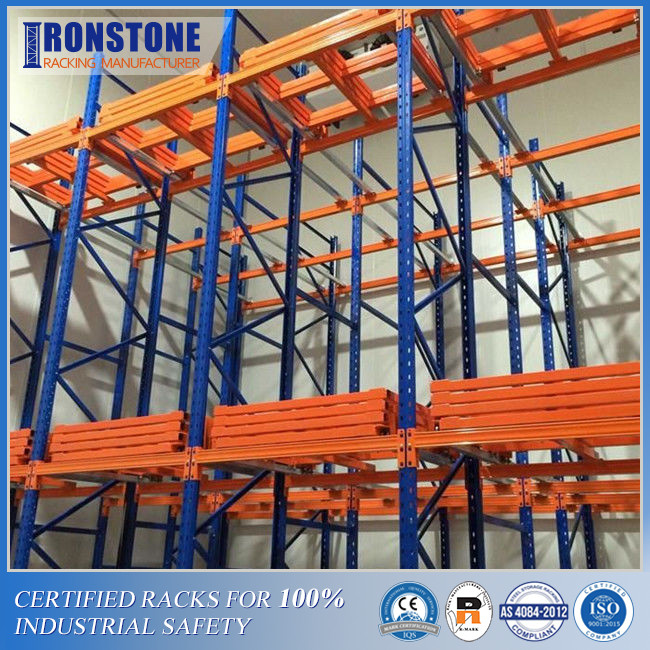

             Labor-saved Push Back Industrial Rack System With High-speed Access 0




In push back pallet racking system, forklift operators only need to transport pallets to the pick face and do not have to drive into the system, reducing the number of aisles in the system and enhancing working efficiency.



Additionally, the nesting color-coded carts give this type of storage system higher selectivity because different SKUs can be distinguished by the color of carts. Therefore, multiple groups of SKUs can be stored on each row.



Name Warehouse rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 1800mm~5000mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, Corrugated paper, Cartons, Wooden bars, Crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, Decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available




Labor-saved Push Back Industrial Rack System With High-speed Access 1



How does push back pallet racking system work?



For loading, the forklift operator puts pallets on carts directly. The first pallet will be placed on the top cart, and the second pallet will push the first pallet at the pick face back one position, and et cetera. It should be noted that the last pallet will directly rest on the rails.



As for unloading, front pallets work as brakes for back pallets. When the operator removes the pallet in the front position, the back carts with pallets will glide toward the pick face in one position for unloading.  Thus, it creates a last-in, first-out high-density storage system.



Push-back rack can be a wall as a single-sided system if against a wall or as a double-sided system if built in the center of a facility. Push-back racking systems can be tailored to fit any operation and can store up to six pallets deep. It can accommodate almost any type of forklift. Because trucks never enter the system, damage to the uprights is minimal and requires little to no maintenance to the system.



The nested carts require low vertical space which gives plenty of vertical storage space for pallets in the system. Each cart is outfitted with stainless steel wheels and is durable for heavy loads or cold storage.




                         Labor-saved Push Back Industrial Rack System With High-speed Access 2




Advantages and Features of Push Back Pallet Racking System



  • Excellent space utilisation.


  • Ideal for bulk storage, order consolidation, and despatch.


  • High Density, up to 6 pallets deep.


  • First pallet in, last pallet out (FILO).


  • Offers better use of available storage space than most systems.


  • Allows storage of more SKUs.


  • Saves on labor – forklift drivers don’t have to remove obstructive pallets.


  • Allows for quick and easy loading/unloading of pallets.


  • Each lane is LIFO, but FIFO can easily be configured with the proper design.


  • Forklifts never have to enter the rack, promoting safety and saving time.
