Collision Minimised Push Back Rack With Safe Operation

Collision Minimised Push Back Rack With Safe Operation
Features Gallery Product Description Request A Quote
Name: Push Back Pallet Rack And Pallet Flow Rack
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Similarity: Gravity Taken, Inclined Rails
Material Handling Equipment: Traditional Forklifts
High Light:

Q355 Pallet Flow Racking System


Pallet Flow Racking System 1m Depth


Q355 gravity flow pallet rack

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: HQ-PB and PF Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Customized Gravity Driven Push Back Pallet Racking and Pallet Flow Racking




In modern warehouses and distribution centers, storage capacity and efficiency are the most important factors in maximizing a facility. The desired types of steel storage pallet racks include selective, push-back, drive-in, drive-through, pallet flow, cantilever, work platforms, and any other related systems. Here are some common details about warehouse pallet racks.




Specifications of warehouse racks



Name Warehouse rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available



In which, both push-back pallet racking systems and pallet flow racking systems are commonly used in a lot of areas with similar prices and here is a comparison between them, which may help you to choose wisely.







♦ High-density storage capacity


Like push-back pallet racks, the pallet flow rack system also offers increased storage density with its multiple pallets and fewer aisles.



♦ Automatic pallets movement via gravity

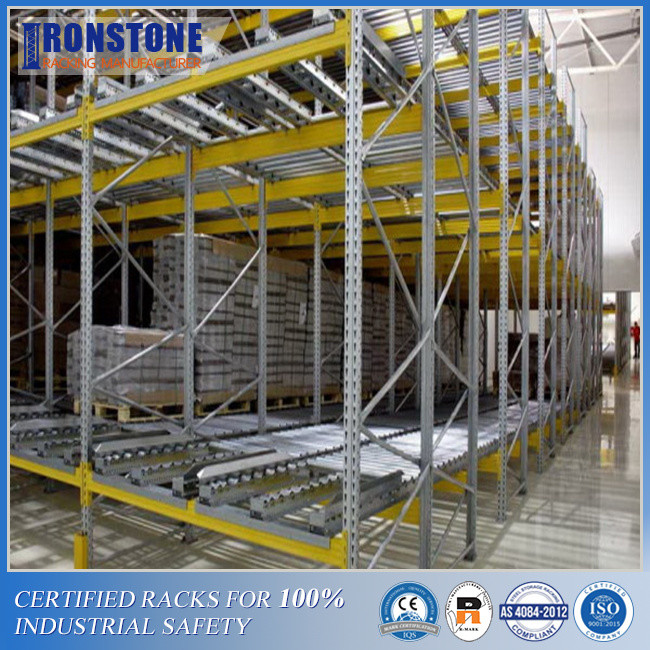

In a pallet flow rack system, pallets are also stored on inclined lanes, which support and allow the pallets to roll down from one side to the picking end automatically via gravity.

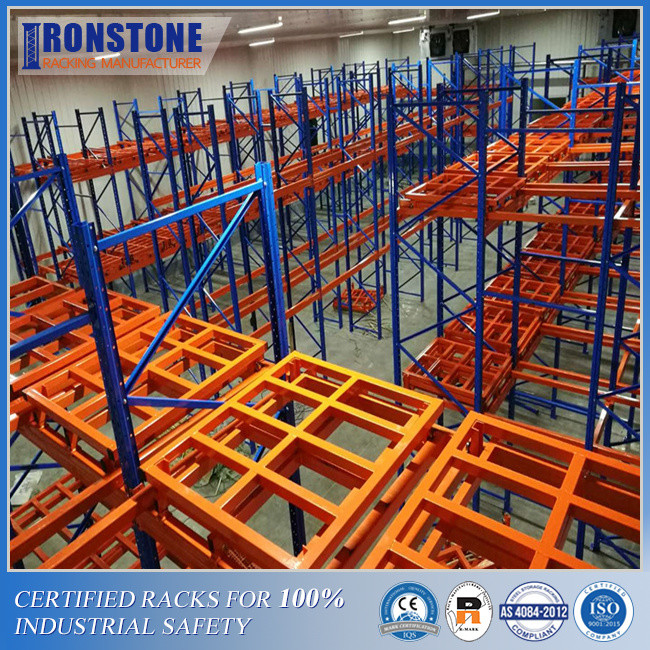

Collision Minimised Push Back Rack With Safe Operation 0






♦ Different configurations



• Pallet flow rack system can store up to 12 pallets deep while push-back pallet racks can only store 6 pallets max per lane.



• Pallet flow rack system has two aisles for separate loading and picking while push-back pallet racks only have one front for both loading and unloading.



Pallet flow rack systems are usually equipped with complex motion and braking systems to control the speed of the moving pallets while push-back pallet racks can only depend on the forklifts when unloading.



♦ Different stock rotations



• Pallet flow rack system follows a First-in/First-out(FIFO) stock rotation principle with two aisles while push back pallet racking system obeys the Last-in/First-out rule.



• Pallet flow rack system offers a faster pallet selection and quicker inventory turnover than push-back racks.



♦ Different storage products



• Pallet flow rack system is a perfect solution to time/date sensitive products while push back pallet racking system is not suitable for perishable products.



• Pallet flow rack system is better for the storage and retrieval of fragile items such as glass or carbonated beverages owing to its barking system.

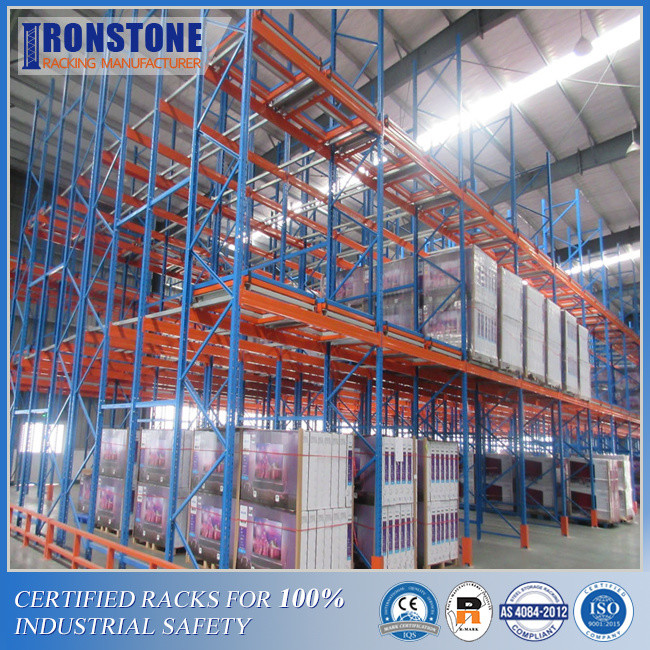

Collision Minimised Push Back Rack With Safe Operation 1




Usually, in small warehouses, especially in freezers and cooler rooms, push-back pallet racks tend to be more popular. While perishable products requiring fast stock rotation can benefit more from pallet flow racking system for its excellent handling efficiency.



Actually, push-back pallet rack can often integrate with pallet flow forming an intelligent storage system to satisfy your personal demands. You can be creative for your storage combinations and configurations as long as they are functional and safe.
