Solid And Robust Construction Push Back Pallet Rack System

Solid And Robust Construction Push Back Pallet Rack System
Features Gallery Product Description Request A Quote
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 2.1~10.5Mts, Width: 1.35~1.5Mts, Customizable As Request
Load Capacity: 500kgs~2000kgs/pallet
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Q355 Push Back Racking System


Push Back Racking System 2m Width


Q355 heavy duty racks for warehouse

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: HQ-PB Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Certified High-Quality Push Back Pallet Racking System for Effective Storage




Push back pallet rack system is a type of high-density storage solution which allows pallets to be stored 2-6 pallets deep. It follows the principle of LIFO and improves storage density at the expense of reducing selectivity.



Push back pallet rack is composed of an inclined rail and a series of nested carts on which pallets are placed. The first stored pallet will be placed on the top cart, the second pallet will be put on the second cart, and so on. But it should be noted that the last stored pallet will be directly laid on the rail, which means the number of carts is one less that the number of pallets in a lane.



Advantages High-density storage
First operation
High selectivity
Applications Cold storage
Food & Beverage
Customer packaged goods
Food manufacturing & Distribution
High seismic areas
Industries with high pallet counts / mid-level SKU counts


Features of Push Back Pallet Rack System:



  • Excellent space utilization rate, it provides high-density storage where pallets are stored up to 5 deep;



  • First pallet in, last pallet out;



  • Higher cost because of its special components;



  • Quick stock rotation, forklifts only work at the end of the system, saving the time of working in different aisles;



  • Saves on labor, pallets move forward automatically under the force of gravity after the previous pallets are picked up;



  • Advisable for storing medium quantities of homogeneous products;

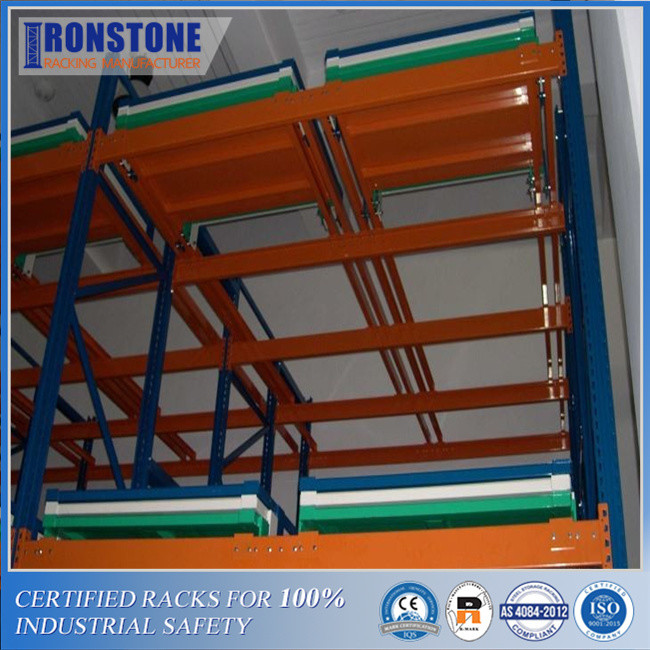

Solid And Robust Construction Push Back Pallet Rack System 0




Material handling equipment: counterbalance forklift truck



Maintenance: Its requirements for maintenance are not high, but there is a special component, namely the cart, which plays an important role in the system. therefore, besides regular checks, extra careful inspection of carts is necessary.

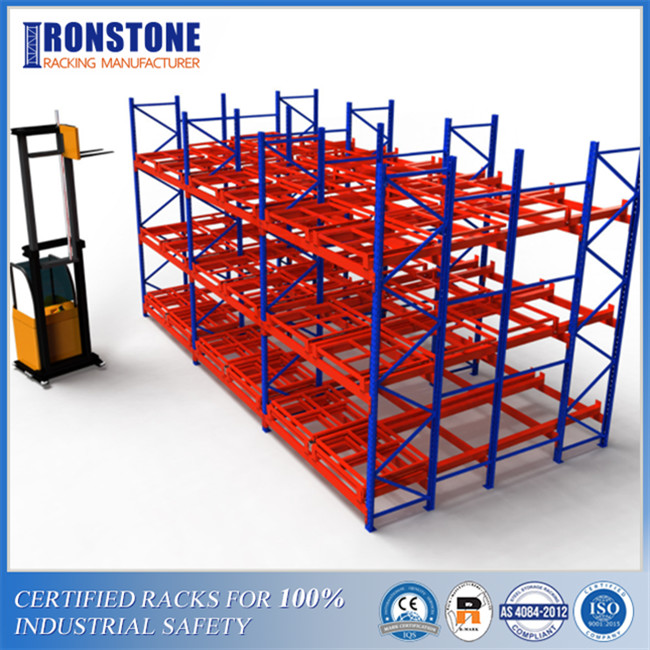

Solid And Robust Construction Push Back Pallet Rack System 1



How does push-back pallet rack work?



When it is time to load pallet, forklift operator will place the first pallet on the top cart in the lane. When the second pallet is loaded, the second pallet will push the first pallet forward one position and sits on the second if in a 3-6 deep system or sits directly on the rail if in a two deep system. This process continues until the lane is full.



When it is time to unload pallet, the forklift operator lifts the outermost pallet off and reverses slowly, and then the next pallet will comes forward and into the front position. This operation repeats until the lane is empty.



How to select the right depth of push back rack:



Normally, push back rack is 2 to 6 deep. In order to make the best use of push back system, it is advised that the number of the same SKU is at least 4-5 times the depth of the storage lane. For example, if you use 2 deep push-back pallet racks, then there should be at least 8-10 pallets of the same SKU in your facility.



Likewise, for 6 deep push-back pallet racks, you should have SKU with 24-30 pallets. Usually, the warehouse will be designed to combine different depths of push-back racks to take full advantage of the limited floor space.

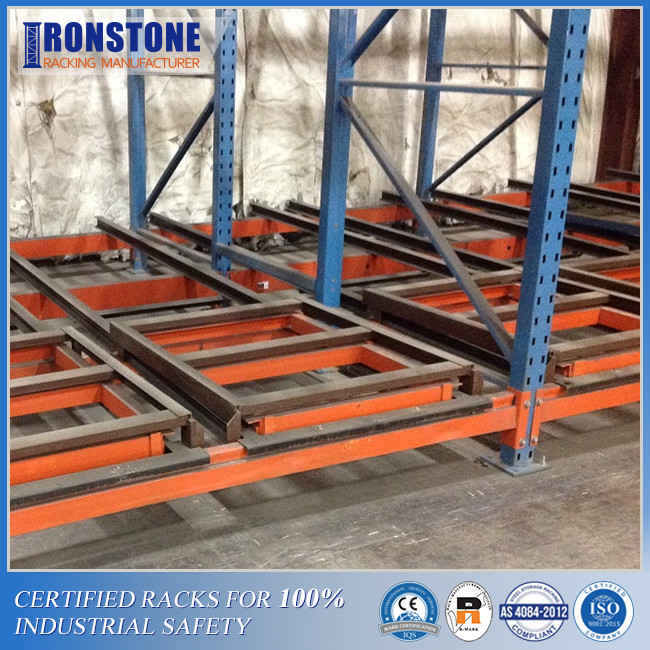

Solid And Robust Construction Push Back Pallet Rack System 2
