RMI (R-Mark) Certified Customized Cantilever Racking System With Various Options

RMI (R-Mark) Certified Customized  Cantilever Racking System With Various Options
Features Gallery Product Description Request A Quote
Name: Lumber Rack
Material Type: High Strength Steel/Amercian Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Q355 Extra Heavy Duty Cantilever Racks


Heavy Duty Cantilever Racks 1500kgs


Q355 cantilever shelving system

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-CRS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, Corrugated paper, Cartons, Plywood Pallet, Bubble film, and Metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Customized RMI (R-Mark) Certified Warehouse Heavy Duty Cantilever Racking for Bulky Product Storage




What is heavy-duty cantilever rack?


Heavy-duty cantilever racks, also called pipe racks, timber racks, lumber racks, furniture racks, etc, often named after the products they stored, can hold medium to heavy loads that can't fit in standard pallet racking systems.

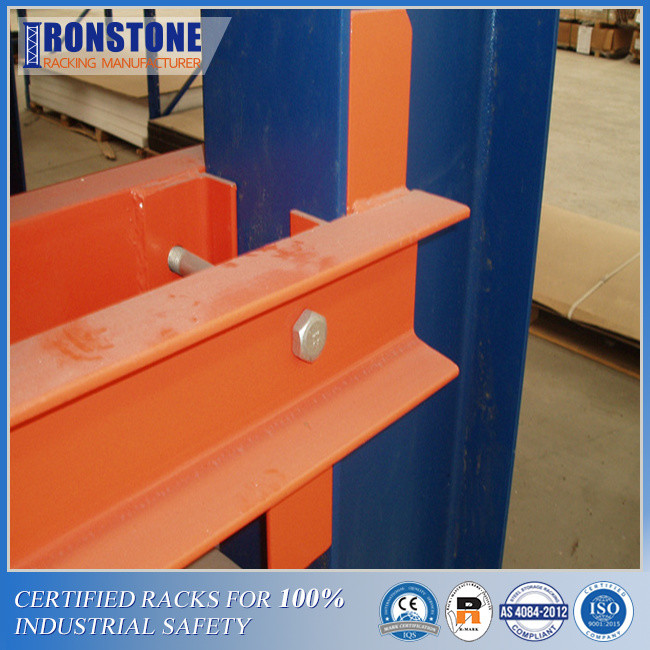

Heavy-duty cantilever racks are usually constructed with structural steel possessing the features of strength, rigidity, and durability. Single-sided or double-sided vertical columns and bases, adjustable horizontal arms, along with bracings all form a basic weight-supporting unit of the cantilever system.




Arm and column specifications


Cantilever Arm Load Capacity (Kg)
  Arm Length(mm)
Height 800 1000 1200 1400 1600
H120 1500 1380 1020 750 570
H150 1500 1500 1250 1190 910
H180 1500 1500 1250 1250 1250
Cantilever Rack Column Capacity(Kg)
Specification(mm) Height (mm) Capacity(kg)
Single-sided Double-sided
305*96 2500 6800 13600
3000 6400 12800
3500 5900 11800
4000 5600 11200
4500 5400 10800
5000 5100 10200
5500 4500 9000
6000 4200 8400
Cantilever Rack Column Capacity(Kg)
Specification(mm) Height(mm) Capacity(kgs)
Single-sided Double-sided
350*96 5000 8500 17000
5500 8100 16200
6000 7700 15400
6500 7200 14400
7000 6700 13400
7500 6300 12600
8000 5800 11600
8500 5400 10800
Cantilever Rack Column Capacity(Kg)
Specification(mm) Height(mm) Capacity(kg)
Single-sided Double-sided
410*96 5500 12500 25000
6000 12000 24000
6500 11000 22000
7000 10000 20000
7500 9500 19000
8000 9200 18400
8500 8700 17400
9000 7500 15000


A facility's storage solution has a direct impact on operational efficiency and security. Investing in heavy-duty double-sided cantilever racks eliminates the need to handle loose, long, and bulky items. Arms on the sides are used to store large amounts of material. This industrial storage unit, available as entry and add-on units, can be configured as a single rack or as a continuous system with multiple racks. There are three heights (96", 120", and 144"), two arm types (standard and angled, with or without lip), nine arm lengths, and nine stand lengths to choose from.


How to use heavy-duty cantilever rack?



For that long-extrusion, heavy, and irregularly shaped bulky products, cantilever racking is a good solution to large amount inventory management.



Loaded and unloaded with forklifts, items can be placed on the cantilever arms taking up the whole length without front bay confrontation. With an open structure, the cantilever racking system makes full use of the constrained space, reduces the initial investment, improves productivity, and increases the material handling efficiency and safety eventually.



For different businesses and products, warehouse owners and managers can customize their own cantilever system with proper dimensions, load capacity, and quantity by discussing with your rack manufacturer.

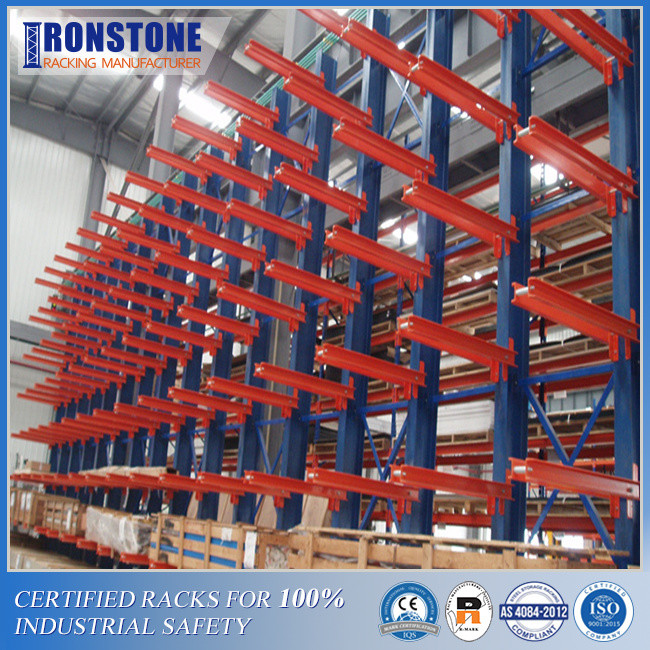

                 RMI (R-Mark) Certified Customized  Cantilever Racking System With Various Options 0




What's the feature of heavy-duty cantilever rack?



► Direct access to all the stored products.



► Ranged in sizes, gauges, and accessories of numerous options to meet all kinds of requirements.



► Rotated designed arm evades possible damages and accidents.



► Corrosion protective measures guarantee a long time of usage.



► Customized bases and braces ensures structure stability.

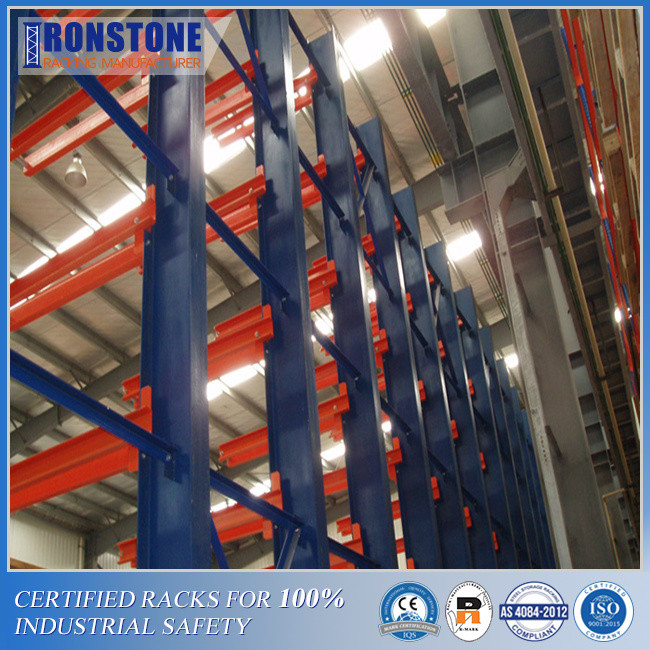

                   RMI (R-Mark) Certified Customized  Cantilever Racking System With Various Options 1
