Industrial Warehouse Heavy Duty Cantilever Rack for Lengthy Pipe Storage

Cantilever rack is a type of heavy-duty warehouse storage system specially designed for storing lengthy, odd-shaped or bulky items such as furniture, building materials, sheet metal, lumber, tubes, fabric rolls, pipes, etc. which are not suitable to be stored on conventional pallet racks. According to customers’ demands, it can be configured as single sided cantilever and double sided cantilever.

Single-sided cantilever

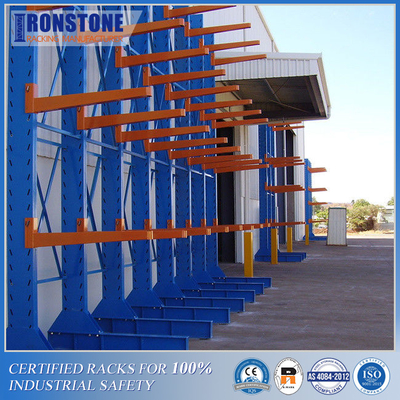

Single-sided cantilever is normally placed against the walls with access from one side only.

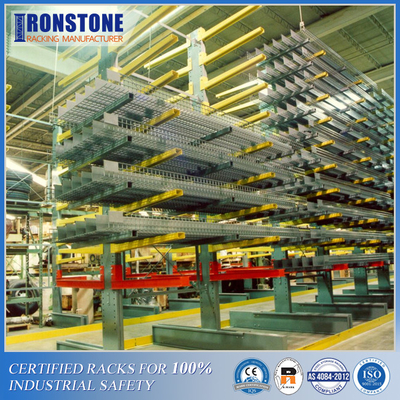

Double-sided cantilever

Double-side cantilever can be used as an alternative which allows access from both sides.

Single-sided cantilever

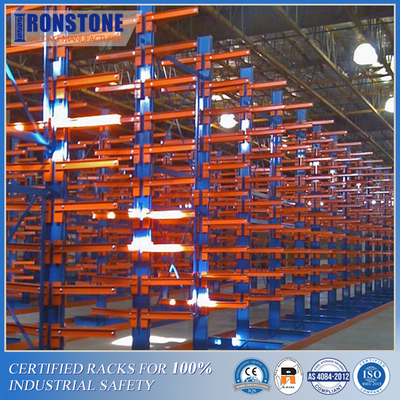

Double-sided cantilever

Components of Heavy Duty Cantilever Rack

In general, heavy duty cantilever rack is composed of four main components: base, upright column, arm, and bracing.

Base

It serves as the cornerstone of the rack system, which anchors the entire system to the floor, providing a stabilizing guarantee. The size of base depends on the size of arms and the load capacity of the rack.

Upright column

It is fixed on the base and provides support to arms which connect to the column through the holes on it.

Arm

Cargoes will be directly placed on arms. And arms can vary in capacity, can be either straight or inclined, and can weld with end-lips which can prevent cargoes from falling.

Bracing

It is used to enhance the stability of the racking system, including horizontal bracing and diagonal bracing.

Benefits of Heavy Duty Cantilever Rack

• Efficient space utilization rate: Ironstone’s heavy duty cantilever rack will be customized to suit your warehouse available space, making the best utilization of both floor space and vertical space.

• Customizable system: It can be designed to accommodate cargoes of different lengths. The load capacity of the rack and the distance between arms can be customized to fit any type of load length you need.

• Strong durability: Ironstone’s cantilever racks are made from high quality steel and powder coated for strength and long life. They can be used either indoors or outdoors.

• Versatile application: It is flexible to be adjusted, easy to expand, and ideal for storing a wide range of bulky items. It is capable of handling high weight capacities. The heavy loads which are suitable to be safely stored on other racks can be stored with ease on cantilever racks.

• Rapid assembly: Since the structure of cantilever rack is simple, it can be easily and quickly assembled, disassembled and refitted according to customers’ demands.

• Cost effective: With simple structure, the setup cost for cantilever racks is low. Besides, the cost for maintenance is also low.

​

                   ​

Tips for Heavy Duty Cantilever Rack

• Cantilever racks are ideal for sheet metal, lumber, plywood, metal or wooden crates and boxes, tubes and pipes, metal fabricated parts, stone plates, raw stock and surplus items.

• The horizontal distance between two neighboring arms is determined by the length of stored cargoes and the load capacity of each arm. For example, In a cantilever rack with two upright columns, the horizontal distance between two adjacent arms should be half the length of the items being stored, leaving 1/4 of the length hanging over on each end. In a rack with three upright columns, the distance between cantilever arms should be 1/3 of the product length, leaving 1/6 of the product length hanging over on each end.

• Single sided cantilever rack can be reconfigured into double sided cantilever rack under the guidance of professional engineer.

​
