Scratch-Resistance Cantilever Storage Rack With Unlimited Horizontal Space

1*20ft
MOQ
USD$0.85/KG
Price
Scratch-Resistance Cantilever Storage Rack With Unlimited Horizontal Space
Features Gallery Product Description Request A Quote
Features
Specifications
Material Type: High Strength Steel/Amercian Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

AS4084 Cantilever Racking System

,

Cantilever Racking System 500KG

,

AS4084 double sided cantilever racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-SPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Certified Heavy Duty Structural Steel Cantilever Storage Rack For Long Materials Storage





Structural steel cantilever racks are designed to store long products with a heavyweight. It adopts vertical structural steel columns to stand at the rear of the racks. Columns are connected with a horizontal base help stabilize the structure and to support the bottom load on the ground. Special arms extend from the back of columns to support loads.





For the stability of whole systems, horizontal and diagonal bracings need to be set between adjacent columns. Structural steel cantilever racks could be configured as single-sided or double-sided columns that attach vertically adjustable arms. These arms are bolted securely to the columns and can be angled to retain loads.

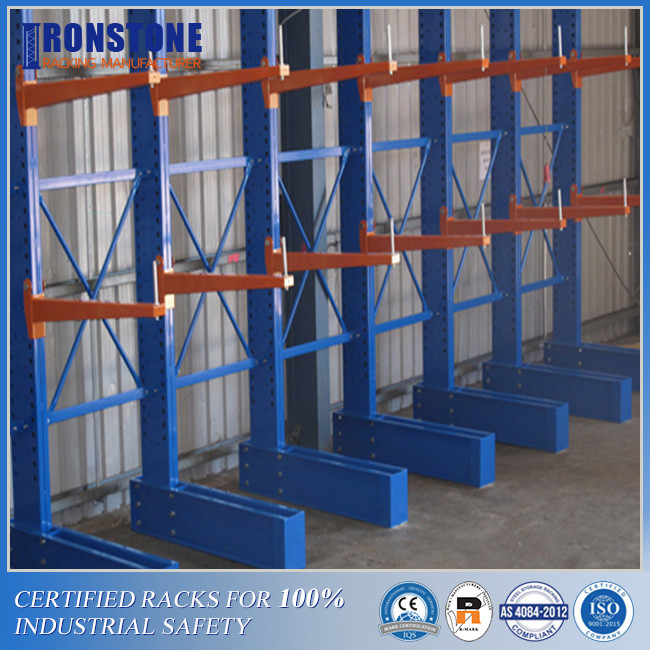

                   Scratch-Resistance Cantilever Storage Rack With Unlimited Horizontal Space 0






Specifications





Place of Origin China (Mainland) Brand Name Ironstone Model Number HDCR-SS
Type Heavy Duty Cantilever Rack Scale Heavy Duty Capacity 1000-3000kg/layer
Material Amercian Standrad Steel Color Customized Certification RMI/ AS4084/ CE/ ISO9001
Use long items storage Feature Corrosion Protection Width Customized
Height Custom As Client Export Experience 12 years Finish Painting/Hot dip Galvanized
Installation Need a wrench, hammer, and electric drill



The significant benefit of this configuration is the front of the rack is wide-open for storing and unloading a wide variety of long, bulky, or awkward materials. Both columns and arms are fabricated by “H” or “I” structural steel, which is heavy-duty and can be easily reconfigured to store long items such as heavy furniture, building materials, steel pipe, lumber, etc.



Cantilever racks can be used indoors or outdoors with roofs designed at the top. In addition, a cantilever rack can be added with decks between the nearest arms to provide similar storage space to pallet racks, but highlighted advantage is having no front columns to make loading and unloading much more immediately accessible, saving materials handling time and improving the efficiency of operations.

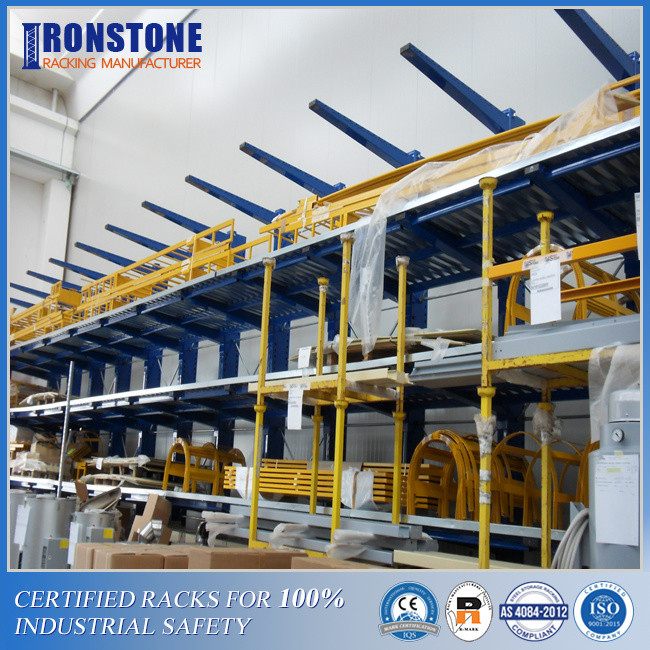

                    Scratch-Resistance Cantilever Storage Rack With Unlimited Horizontal Space 1






Benefits of Heavy duty structural steel cantilever rack



  • Columns, arms, and bases are constructed of I-beam structural steel that is ready for heavy-duty materials loading with low maintenance





  • Vertically adjustable arms make storage spacing accommodate various load dimensions easily





  • Arms and bases are secured to columns with connection by 8.8-grade bolts





  • Provide a sturdy, reliable storage option for long & heavy materials.





  • Configurations of Structural steel cantilever rack comes in a wide variety of sizes and capacities.





  • A wide of accessories such as stop pins, brackets, cross support bars, wire decks, steel panels, and guide rails are optional for more loading applications.

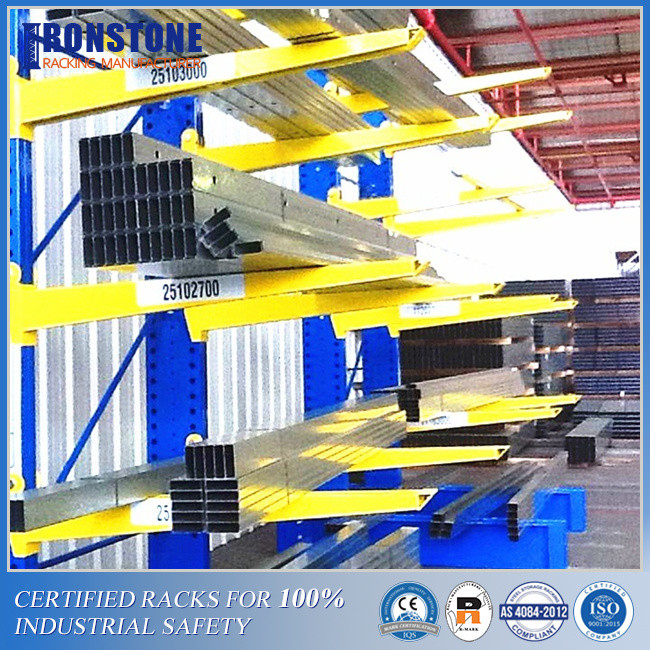

                  Scratch-Resistance Cantilever Storage Rack With Unlimited Horizontal Space 2
