Name: Radio Shuttle Pallet Racking System
Material Type: High Strength Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Load Capacity: 1000-5000kg/level
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Customized As Required
Usage Range: Warehouses Requires High Load Capacity And Productivity
Efficiency: High Speed, High Efficiency, Improved Productivity
Stock Rotation: Both FIFO And LIFO Available
Surface Treatment: Powder Coated Or Galvanized, Anti-collision
High Light:

Mobile Radio Shuttle Racking System


Q355B Radio Shuttle Racking System


Radio Shuttle Pallet Racking System

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: HDWS-RSPRS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

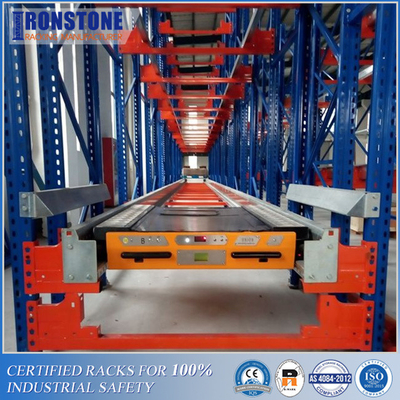

Automatic Mobile Radio Shuttle Racking System For Save Space




Radio Shuttle Racking System is a storage system for storing and managing large volumes of goods. It is a high-density storage solution, typically used in warehouses and logistics centers, designed to improve storage efficiency and operational effectiveness.
The basic principle of the Radio Shuttle Racking System is to use an electric shuttle (radio shuttle) to move goods between racks. The shuttle is a robot with the ability to travel autonomously, carrying and moving goods. It is battery-powered and operated by remote control or control system.
The Radio Shuttle Racking System works as follows:
►First, the goods are placed on one side of the rack and pushed into the system by a forklift or other handling equipment.
►The shuttle moves automatically over the racks and carries the goods from one side to the other. It can move vertically above and below the shelves to access the different shelf levels.
►The shuttle stops at the target location and places the goods in the correct position according to the system control commands.
►The operator can use a remote control or control system to control the shuttle and instruct it to perform specific tasks, such as picking up or putting away goods.

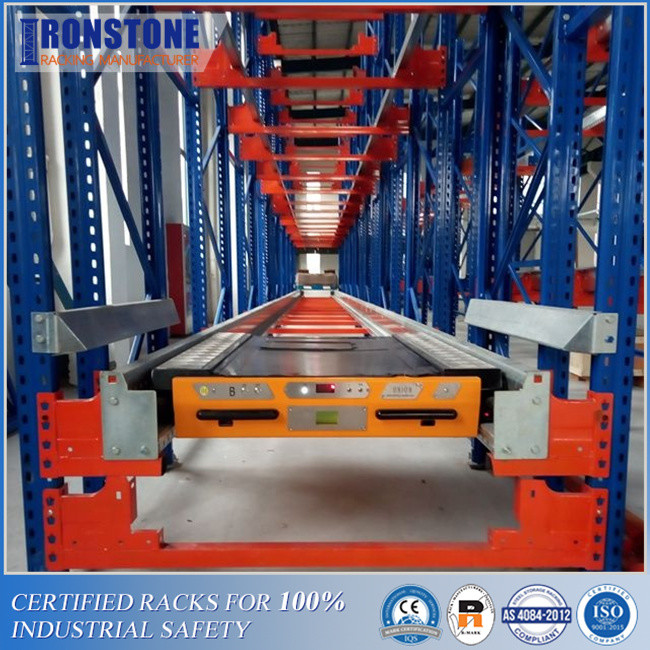

Automatic Mobile Radio Shuttle Racking System For Save Space 0
Benefits of the Radio Shuttle Racking System include
1. High storage density: Because the shuttle can move between racks, it maximizes the use of warehouse space and provides higher storage density.
2. Efficient operation: Shuttles can perform handling tasks quickly and accurately, greatly improving the efficiency of warehouse operations.
3. Reduced manual handling: The Radio Shuttle Racking System reduces manual labor and operational risk compared to traditional manual handling methods.
4. Flexibility: Shuttles can move goods between racks as needed, accommodating different sizes and weights of goods.

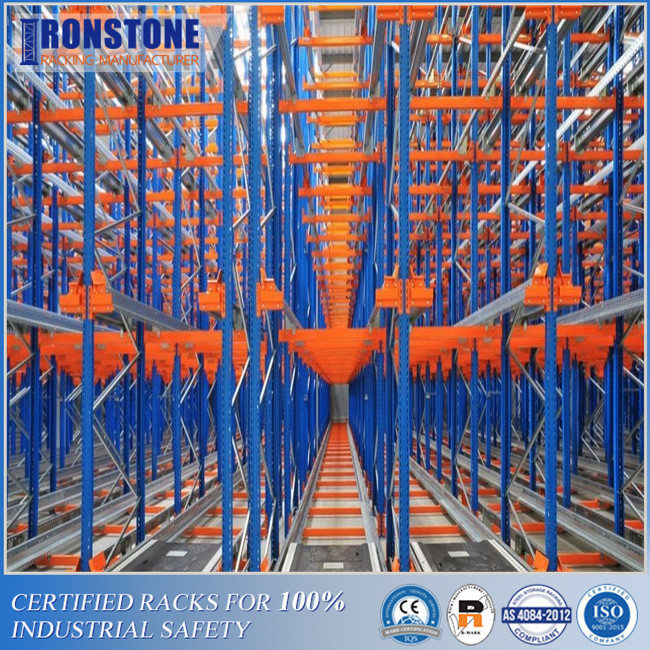

Automatic Mobile Radio Shuttle Racking System For Save Space 1



Radio Shuttle Pallet Rack Components

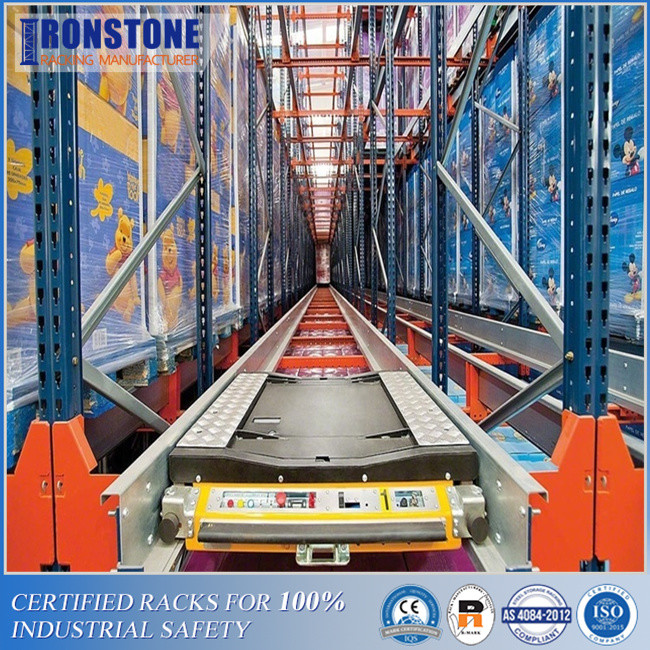

Automatic Mobile Radio Shuttle Racking System For Save Space 2



Specifications of Radio Shuttle Rack



Item Basic Data Remark
Type High version: TDRII-A-1012-1.5T
Appropriate Pallet Width:1016mm Depth:1219mm Entry: 1016mm
Max Load Capacity Max 1500kg
Move Speed Vmax empty:1.5m/s,Vmax full:1.0m/s
Acceleration ≤0.5m/S2
Motor Brushless servo motor: 48VDC 600W Imported from America
Servo Driver Brushless servo driver Imported
Lift Lift Height 40mm
Motor Brushless motor: 48VDC 500W Imported from America
Positioning/Accuracy Move Positioning: laser sensor Germany P+F/SICK
Pallet Positioning: laser sensor Germany P+F/SICK
Lift Positioning: proximity switch Germany P+F
Object Detection Background suppression photoelectricity Germany P+F/SICK
Control System Programmable controller: S7-200 PLC Germany SIEMENS

Work frequency: 433MHZ;

Communication distance: at least 100m if in an open environment.

Imported customized IMT
Two-way communication, with LED display
Temperature:-40℃~+80℃ IP67
Power Supply Lithium iron phosphate power battery Domestic, high quality
Battery Parameter


running time:≥8h;

charging time: 3h;

charge times:1000

Speed Control Mode Servo control, constant torque at low speed
Shuttle Control Mode Remote control
Running Noise ≤60db
Painting Requirements

The frame (black)

Others (light gray)

Ambient temperature

Temperature: 0℃~50℃

Humidity: 5% ~ 95% (no condensation)

Anti-collision Device A polyurethane cushioning strip and anti-collision sensor are installed on the end surface


Before installing the Radio Shuttle Racking System, the following factors need to be considered:
1. Warehouse space: Evaluate the available space and layout of the warehouse to determine the suitable area for the installation of the Radio Shuttle Racking System. Make sure there is enough space to accommodate the racking system, shuttles and cargo handling areas.
2. Cargo attributes: Consider the size, weight and characteristics of the cargo. the Radio Shuttle Racking System needs to accommodate different types of cargo, so you need to ensure that the design and load capacity of the racking system can meet the requirements of the cargo.
3. Cargo flow: Evaluate the flow of cargo and handling requirements. Based on the frequency of cargo movement and handling speed, determine the number and configuration of shuttles required to ensure the system can meet the expected operational efficiency.
4. Power and charging requirements: The Radio Shuttle system uses battery power, so the battery life and charging needs of the shuttles need to be considered. Determine the location of charging stations and the configuration of charging facilities to ensure that the shuttles can be charged in a timely manner and remain operational.
5. System Integration: Consider the integration of the Radio Shuttle Racking System with other storage equipment and systems. For example, interfaces with warehouse management systems (WMS) or automated equipment to enable data exchange and collaborative operations.
6. Security considerations: Ensure the security of the Radio Shuttle Racking System. This includes the safety design and features of the shuttle, such as collision avoidance devices, safety sensors, and emergency stop buttons, as well as training for operators and compliance with safety standards.



Warehouse Solution Designing



Ironstone has its own design consultants who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions for our customers. Through a win-win combination, we can assure you of your success in managing your goods by means of our professional technology and risk management.





(1) Q. What is your minimum order quantity?
You only need to purchase one piece and we can ship it to you.
(2) Q. How do I buy?
You can email us directly and we will contact you by email in time.
(3) Q. Are you a factory or a trader?
A. We are 100% factory.
(4) Q. Can you OEM / ODM?
We provide OEM / ODM service. If you have a need for this, you can send your logo to us directly, and we will print your perimeter label on the product.
(5) Q. What certification do your products pass?
We're ISO9001 certified company. Rack systems are strictly designed and produced based on CE and AS4084:2012  standards for storage racks, and comply with FEM and RMI standards.
(6) Q. What are your payment methods?
We support T/ T .L/C PayPal and other payment methods.
(7)Q. What is the delivery time?
Usually, it takes 25 to 30 days. But the exact delivery time is different for different order quantities.
