Semi-automated Radio Shuttle Runner Racking With Efficient Supply And Distribution

Semi-automated Radio Shuttle Runner Racking With Efficient Supply And Distribution
Features Gallery Product Description Request A Quote
Name: Radio Shuttle Pallet Racking System
Material Type: High Strength Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Load Capacity: 1000-5000kg/level
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Customized As Required
Usage Range: Warehouses Requires High Load Capacity And Productivity
Efficiency: High Speed, High Efficiency, Improved Productivity
Stock Rotation: Both FIFO And LIFO Available
Surface Treatment: Powder Coated Or Galvanized, Anti-collision
High Light:

Q355B Radio Shuttle Pallet Racking


Radio Shuttle Pallet Racking 1000kg


Q355B radio pallet shuttle

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: HDWS-RSPRS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Heavy Duty Warehouse Semi-automatic Radio Shuttle Pallet Racking System




Radio shuttle system is a compact, high-density storage solution that uses motorized shuttles to automatically feed loads into the rack. The pallet shuttle is controlled remotely by the operator. As a result, storage space is optimally utilized and the accident rate in the workplace is reduced.


The use of automatic shuttles instead of forklifts during storage reduces both the risk of accidents and maintenance costs due to damage to the racks. The system can be used for FIFO and LIFO, even in refrigerators with temperatures up to -30°C.

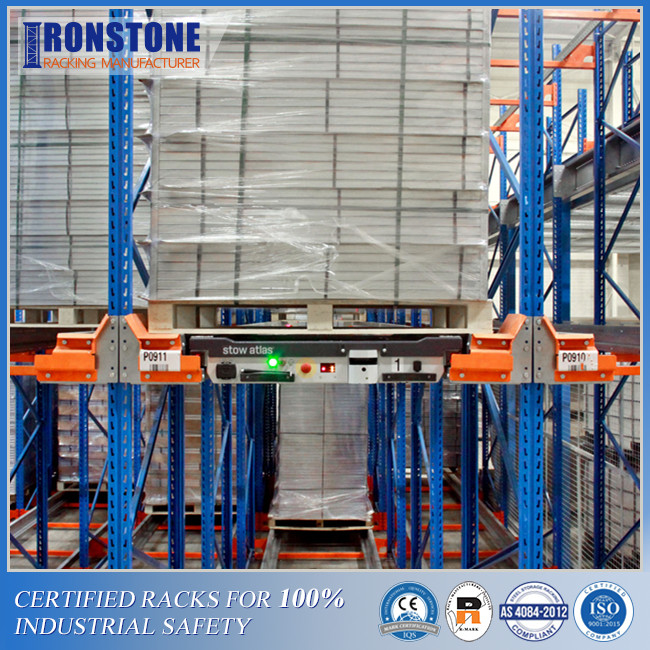

           Semi-automated Radio Shuttle Runner Racking With Efficient Supply And Distribution 0



This pallet transport system improves the logistical capacity in terms of quality and quantity as it automates the handling of goods on pallets; it also allows for stock control by counting the sensor systems that store the pallets.




Specifications of Radio Shuttle Cart



Item Basic Data Remark
Type High version: TDRII-A-1012-1.5T
Appropriate Pallet Width:1016mm Depth:1219mm Entry: 1016mm
Max Load Capacity Max 1500kg
Move Speed Vmax empty:1.5m/s,Vmax full:1.0m/s
Acceleration ≤0.5m/S2
Motor Brushless servo motor: 48VDC 600W Imported from America
Servo Driver Brushless servo driver Imported
Lift Lift Height 40mm
Motor Brushless motor: 48VDC 500W Imported from America
Positioning/Accuracy Move Positioning: laser sensor Germany P+F/SICK
Pallet Positioning: laser sensor Germany P+F/SICK
Lift Positioning: proximity switch Germany P+F
Object Detection Background suppression photoelectricity Germany P+F/SICK
Control System Programmable controller: S7-200 PLC Germany SIEMENS

Work frequency: 433MHZ;

Communication distance: at least 100m if in open environment.

Imported customized IMT
Two-way communication, with LED display
Temperature:-40℃~+80℃ IP67
Power Supply Lithium iron phosphate power battery Domestic, high quality
Battery Parameter


running time:≥8h;

charging time: 3h;

charge times:1000

Speed Control Mode Servo control, constant torque at low speed
Shuttle Control Mode Remote control
Running Noise ≤60db
Painting Requirements

Frame (black)

Others (light gray)

Ambient temperature

Temperature: 0℃~50℃

Humidity: 5% ~ 95% (no condensation)

Anti-collision Device Polyurethane cushioning strip and anti-collision sensor are installed on the end surface




Features and Advantages of Radio Shuttle Pallet Racking System:



  • Radio shuttle system allows you to optimize floor space and available height, minimizing the number of aisles required to use forklifts.


  • The AR shuttle system allows automatic stock control, thanks to sensors that calculate the number of pallets stored.


  • Remote control and barcodes help to better control stock and significantly reduce errors.


  • As operators do not need to enter the aisles, maximum safety is provided when handling pallets, and collisions with racking structures are avoided. This reduces maintenance costs and the number of problems that occur when handling loads.


  • With the pallet shuttle system, storage pallets can be loaded and unloaded FIFO or LIFO, even in -30°C refrigerators.


  • FIFO / LIFO space optimisation.


  • Allows for a continuous handling flow to speed up warehouse operations.


  • Constant handling flow.


  • Powered by rechargeable lithium batteries.


  • Safe operation and low maintenance.


  • Flexible storage of different types of pallets.

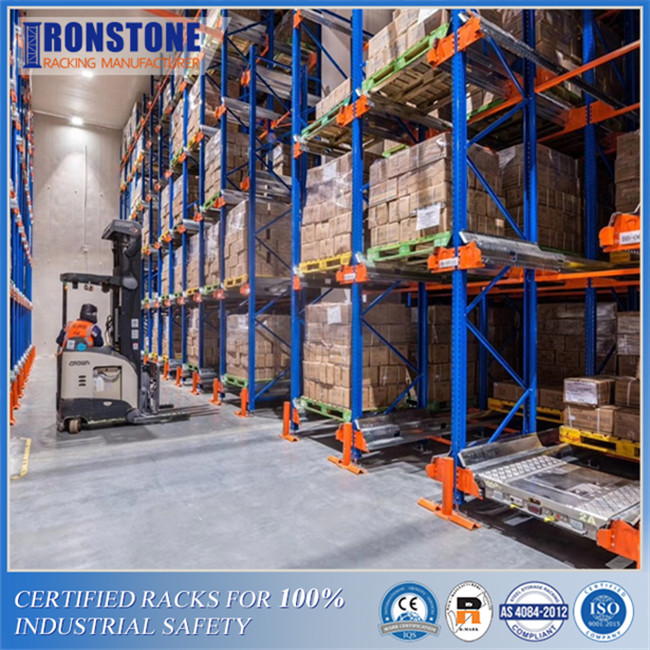

            Semi-automated Radio Shuttle Runner Racking With Efficient Supply And Distribution 1




Applications for Radio Shuttle Pallet Racking System



Semi-automatic radio shuttle pallet racking is a system for optimizing space and productivity in the warehouse.


Its main applications are :


  • Warehouses with a large number of loading and unloading activities and therefore a need for high productivity.


  • Warehouses with a small number of reference products but a large number of pallets.


  • Warehouses for seasonal goods require fast and flexible operation at specific times.


  • Warehouses are equipped with refrigerated or freezer rooms, as this allows maximum space compression while saving time in loading and unloading pallets.


  • Warehouses for perishable and non-perishable goods, due to their dual FIFO and LIFO management capabilities, depend on the configuration chosen.

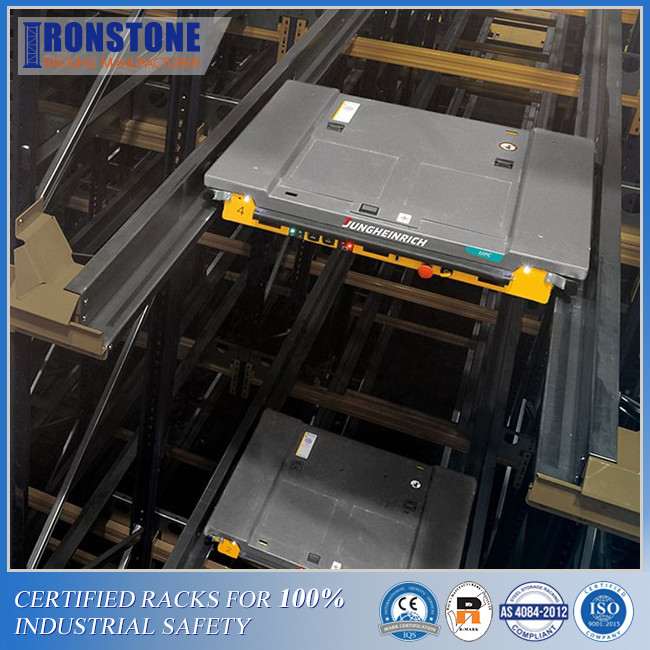

                   Semi-automated Radio Shuttle Runner Racking With Efficient Supply And Distribution 2
