High Efficient Radio Shuttle Runner Racking With Special Design

High Efficient Radio Shuttle Runner Racking With Special Design
Features Gallery Product Description Request A Quote
Name: Customized Heavy Duty Radio Shuttle Racking
Key Elements: High Density Pallet Racks, Shuttle Cars, Forklifts
Pallet Runner Mode: Standard Sized Pallet Runner, Customized Pallet Runner
Pallet Type: Steel Pallet, Wooden Pallet, Plastic Pallet
Material Type: High Strengh Steel-Q355/Amercian Standrad Steel
Load Capacity: Customized From 500kgs~2000kgs/pallet
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Usage Range: Automated Product Storage And Retrieval Warehouses
High Light:

ODM Radio Shuttle Racking System


Radio Shuttle Racking System Q355


Q355 Pallet Shuttle System

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: HQ-RS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Customized Heavy Duty ODM And OEM Supported Radio Shuttle Pallet Racking System

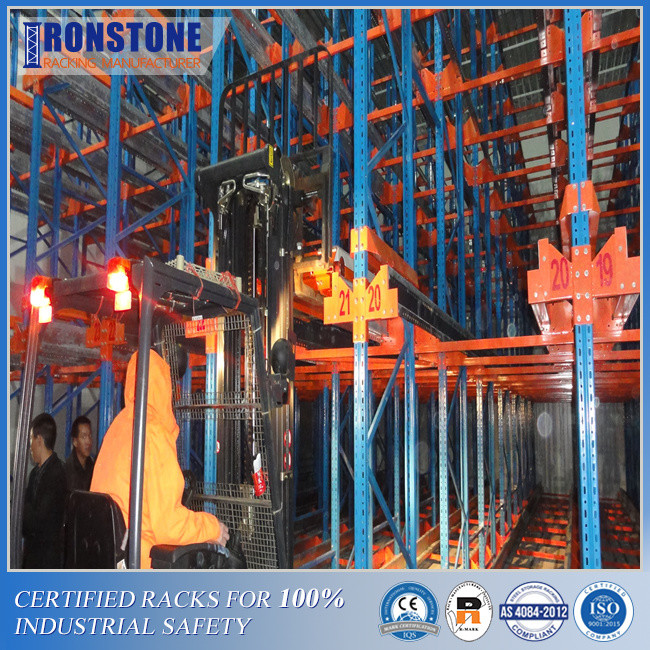

A Heavy-duty Radio Shuttle Pallet Racking System is customized with compacted storage pallet racks, remote-controlled shuttle cars and forklifts. The configuration of the storage pallet racks looks like drive-in racking with guide rails in storage bay. In drive-in racking, the pallets are located on the rails directly where forklifts drive into the storage bay for material handling.



            High Efficient Radio Shuttle Runner Racking With Special Design 0



However, in radio shuttle racking system, only shuttle cars moves along the rails propelled by remote control. Shuttle cars with wheels are special made with platforms on the top which can help to realize pallet load lifting and placing. Remotely controlled by opeartors, this smart shuttle car will lift the pallet load first, then shift it to designated position with accuracy and security.



Specific details of radio shuttle racking system


Pallet Rack Material High quality steel with customized mode Q355, Q355


Pallet details

Size Standard 1.2m* 1m pallet, customized pallet sizes are optional
Types Steel, wooden, plastic pallets are optional



Shuttle car technical parameter


Optional speed without load Low speed: 0.8 m/s, medium speed: 1m/s, high speed:1.2m/s
Optional speed with full load Low speed: 0.4 m/s, medium speed: 0.6m/s, high speed: 0.8 m/s





Remote Control


Way Of Communication Wireless Communication with WIFI connection
Remote Sensor Range 50 meters
Interactive Mode Touch Screen + Android App
Operating Temperature -20℃~50℃



Radio shuttle pallet racking operation flow



♦ In radio shuttle racking system, the material handling links of storage & retrieval and product transportation are separated.



♦ In the high-density storage system, shuttle cars are responsible for pallet loads picking and placing; while out of the rack structure, forklifts and workers are in charge of cargo transportation.



♦ Wireless remote control will send instructions and signals including commencement and termination to shuttle cars. For example, for product storing, the pallet load will be placed on the first bay position by forklift, then lifted by shuttle car and delivered to certain point. When it comes to unloading, the forklift will wait on the aisle and pick the specified pallet load out of the system.



♦ Both First-in/First-out(FIFO) and Last-in/First-out(LIFO) stock rotation mode can be applied to radio shuttle racking system.



              High Efficient Radio Shuttle Runner Racking With Special Design 1




Recommendation reasons for radio shuttle pallet racking



1. Radio shuttle racking system is efficient and accurate with semi-automated shuttle car for loading and unloading.



2. As a very compacted storage system, radio shuttle racking cuts down the forklift picking and storing aisle and makes full use of warehouse space.



3. The warehouse safety including racks, commodities and employees has been greatly improved thanks to out-of-structure forklifts and intelligent computer controlled shuttle cars.



4. Less labors are required in radio shuttle racking system resulting to decreased mistakes and increased productivity.



5. Radio shuttle racking system is a cost-effective but advanced storage solution that will pay your investment back in a short time.



6. Customized sizes and load capacity fitting into any pallet sizes, radio shuttle racking system is OEM and ODM supported for your personal demands.



7. Ironstone reliable radio shuttle storage racks have excellent quality that can endure long time abuse requiring less post-use maintenance.




               High Efficient Radio Shuttle Runner Racking With Special Design 2
