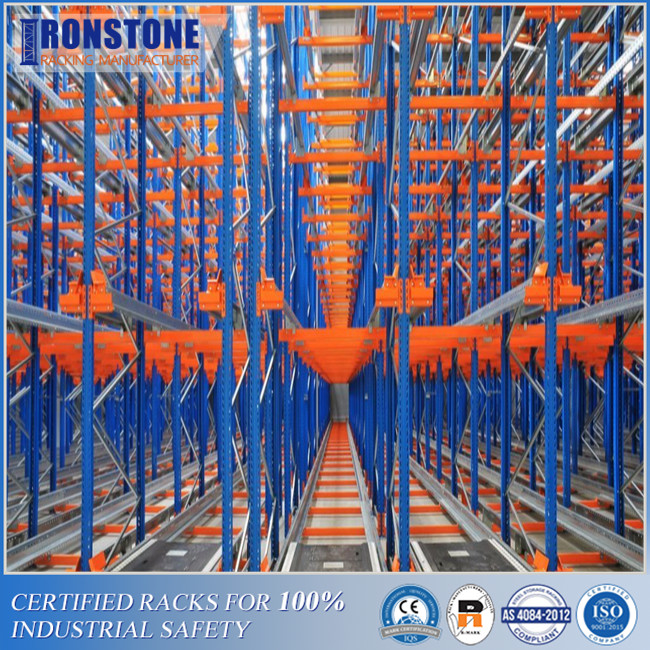

High Density Automatic Warehouse Storage Radio Shuttle Rack

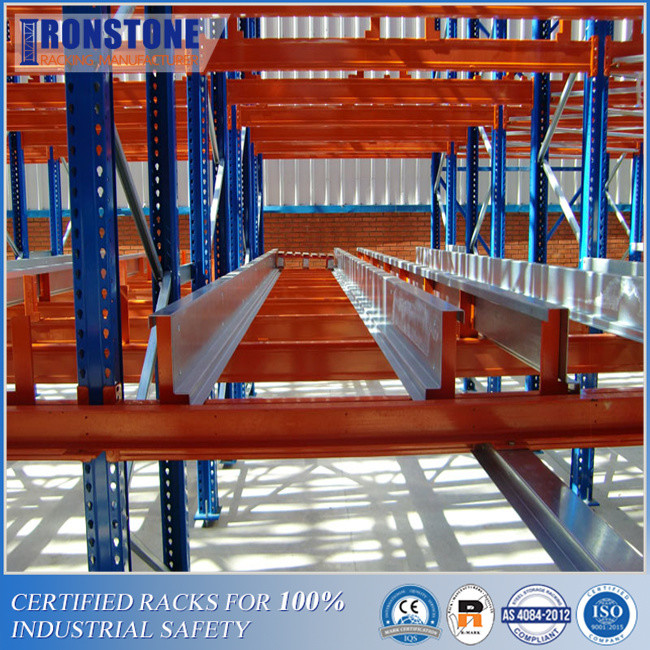

Radio Shuttle Pallet Rack Components
Specifications of Radio Shuttle Rack
| Item | Basic Data | Remark | |
| Type | High version: TDRII-A-1012-1.5T | ||
| Appropriate Pallet | Width:1016mm Depth:1219mm | Entry: 1016mm | |
| Max Load Capacity | Max 1500kg | ||
| Move | Speed | Vmax empty:1.5m/s,Vmax full:1.0m/s | |
| Acceleration | ≤0.5m/S2 | ||
| Motor | Brushless servo motor: 48VDC 600W | Imported from America | |
| Servo Driver | Brushless servo driver | Imported | |
| Lift | Lift Height | 40mm | |
| Motor | Brushless motor: 48VDC 500W | Imported from America | |
| Positioning/Accuracy | Move Positioning: laser sensor | Germany P+F/SICK | |
| Pallet Positioning: laser sensor | Germany P+F/SICK | ||
| Lift Positioning: proximity switch | Germany P+F | ||
| Object Detection | Background suppression photoelectricity | Germany P+F/SICK | |
| Control System | Programmable controller: S7-200 PLC | Germany SIEMENS | |
| Remoter |
Work frequency: 433MHZ; Communication distance: at least 100m if in an open environment. |
Imported customized IMT | |
| Two-way communication, with LED display | |||
| Temperature:-40℃~+80℃ IP67 | |||
| Power Supply | Lithium iron phosphate power battery | Domestic, high quality | |
| Battery Parameter |
48V,30AH; running time:≥8h; charging time: 3h; charge times:1000 |
Maintenance-free | |
| Speed Control Mode | Servo control, constant torque at low speed | ||
| Shuttle Control Mode | Remote control | ||
| Running Noise | ≤60db | ||
| Painting Requirements |
Frame (black) Others (light gray) |
||
| Ambient temperature |
Temperature: 0℃～50℃ Humidity: 5% ~ 95% (no condensation) |
||
| Anti-collision Device | Polyurethane cushioning strip and anti-collision sensor are installed on the end surface | ||

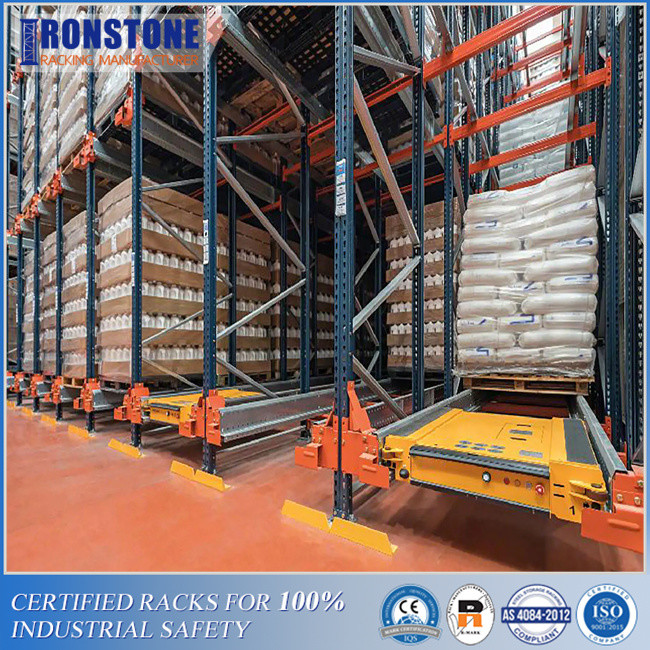

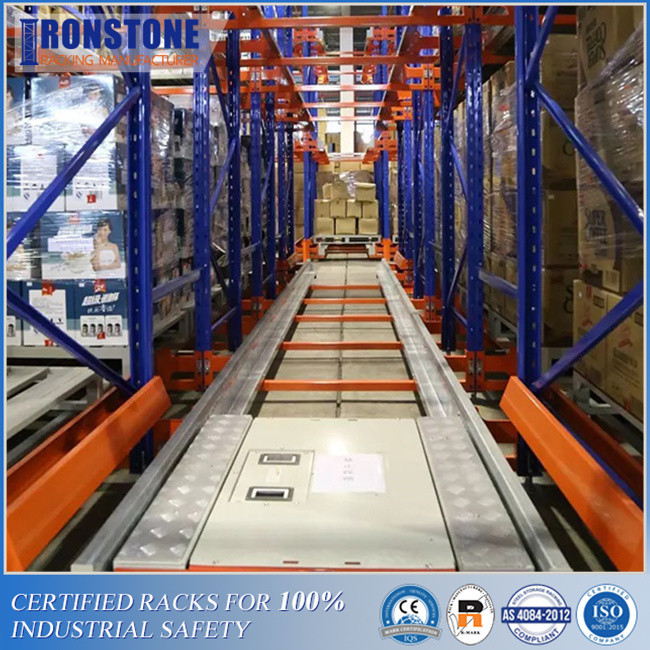

Radio shuttle pallet rack (radio frequency shuttle racking system) has the following advantages:
1. Improve storage density: Compared with traditional racking systems, Radio shuttle pallet rack can increase storage density, because it can store more goods in the same warehouse space.
2. Improve operation efficiency: The shuttle car can automatically carry goods according to the predetermined route, thereby reducing the time and labor of manual operation and improving operation efficiency.
3. Wide applicability: The radio shuttle pallet rack is suitable for large-scale storage and distribution centers, especially for warehouses with a large number of goods of the same type and relatively consistent specifications.
4. Strong flexibility: The cargo rack of the Radio shuttle pallet rack can be flexibly combined according to actual needs to accommodate goods of different specifications and volumes.
However, the Radio shuttle pallet rack also has some disadvantages:
1. High investment cost: Compared with traditional shelves, the investment cost of the Radio shuttle pallet rack is higher.
2. High maintenance cost: Since the Radio shuttle pallet rack is an automated storage system, it needs regular maintenance and maintenance, and the maintenance cost is high.
3. Professional operators have required: Radio shuttle pallet racks require professional operators to manage and maintain, and require high-quality personnel.
4. Not suitable for a wide variety of goods: The radio shuttle pallet rack is suitable for a large number of goods of the same type, not suitable for warehouses with a wide variety of goods.
Warehouse Solution Designing
Ironstone has its own design consultants who are experienced in offering you optimal storage solutions for optimizing your material and information flow. Based on engineering design, computer modeling, and CAD software design, we have successfully provided thousands of storage solutions for our customers. Through a win-win combination, we can assure you of your success in managing your goods by means of our professional technology and risk management.
We can satisfy your various design requirements!
