Selective Very Narrow Aisle Pallet Racking System With Optimizing Space

Selective Very Narrow Aisle Pallet Racking System With Optimizing Space
Features Gallery Product Description Request A Quote
Name: Very Narrow Aisle Pallet Racking System
Material: Roll-formed Steel Structural Steel
Feature: Anti-rust, Corrosion-protection
Application: High-Bay Warehouse With Limited Space
Forklift Type: Trilateral Forklift
Aisle Width: 1.8-2.3m
Load Capacity: 500kg~4000kg/level
Certification: RMI / AS4084-2012 / CE / ISO9001
Design: Customized According To Your Demands, Free CAD Drawing
High Light:

Very Narrow Aisle Pallet Racking


Optimizing Space Pallet Racking System


Selective Narrow Aisle Pallet Racking

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: EH-VNA Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Fully Accessible and Selective Very Narrow Aisle Pallet Racking System With Versatile and Optimizing Space

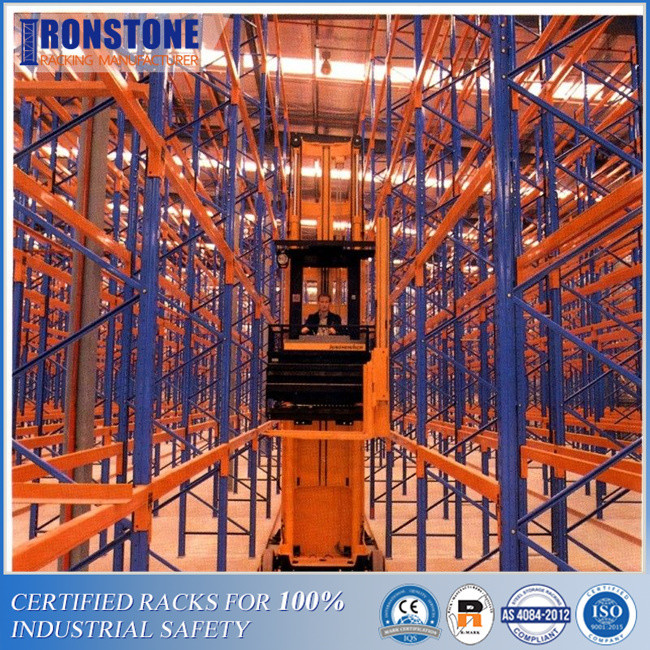

Very Narrow Aisle (VNA) Racking is a type of high-density storage system that maximizes the use of available warehouse space by reducing aisle widths and using specialized forklift trucks that can operate in these narrow aisles. This type of racking is designed to store palletized goods and is typically used in facilities where space is at a premium. The VNA racking system allows for greater storage density, as well as more efficient picking and inventory management.



Selective Very Narrow Aisle Pallet Racking System With Optimizing Space 0


Name Very narrow aisle pallet racking Material

Roll-formed steel

Structural steel

Tiers of each bay 2~15 tiers per bay Color Customized color as client requests
Upright Frame Customized height Load Capacity Customized: ranged from 500~3000kg per beam level
Beam Width Customized: ranged from1000mm~3900mm Upright Depth Customized: ranged from 700mm to 1500 mm
Surface treatment Epoxy powder coated or galvanized steel for corrosion prevention
Package type Plastic stretch film, corrugated paper, cartons, plywood bars, crates, and metal strips, the customized package is also allowable
Assemble & installation Free installation support, and detailed assembly instructions are available



The features and advantages of Very Narrow Aisle (VNA) Racking are as follows:
♦Use very narrow aisles, usually between 1.5 and 1.8 meters, to maximize the available storage space.

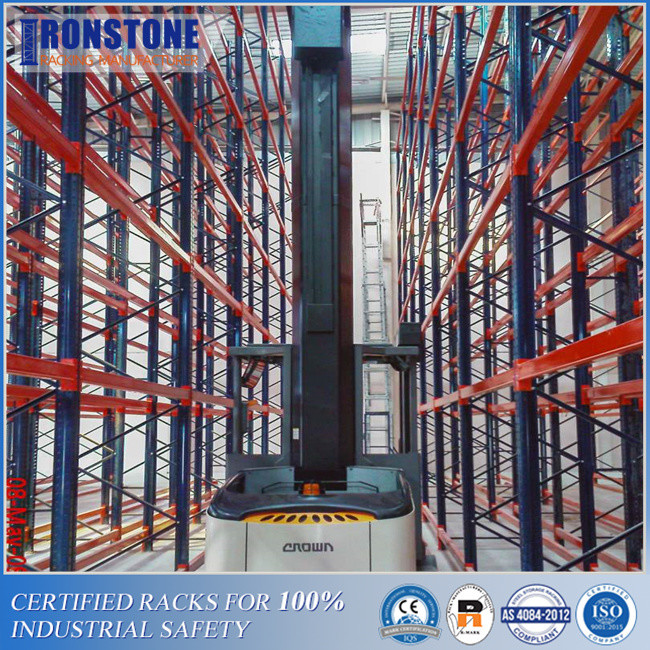

♦Using specialized forklifts, they have sophisticated guidance systems and automatic positioning technology to operate in very narrow cargo lanes.
♦Many different types of goods can be stored, such as standard and non-standard pallets, and can be customized as required.
♦High-density storage can be realized, storage capacity is improved, and storage efficiency and selection efficiency are improved at the same time.
♦Maximize the use of available warehouse space, so more goods can be stored in limited space.
♦Improve storage density and reduce storage costs.
♦The work efficiency can be improved and the operating cost can be reduced by using a special forklift.
♦It can improve the accuracy and efficiency of warehouse management, reduce storage and transportation time, and improve overall work efficiency.



Very Narrow Aisle (VNA) Racking usually consists of the following parts:
♦Uprights: U-shaped beams, usually made of cold-rolled steel, used to support the entire shelving system.
♦Beam: A transverse member connected to a column to support cargo.
♦Support beam: used to connect two beams to increase the stability of the whole system.
♦Base: used to fix the column and increase the stability of the whole system.
♦Pallet: A platform for placing goods, usually made of wood or plastic.
♦Slide rail: a guide rail fixed on the pallet, which allows the forklift to move on the rack.

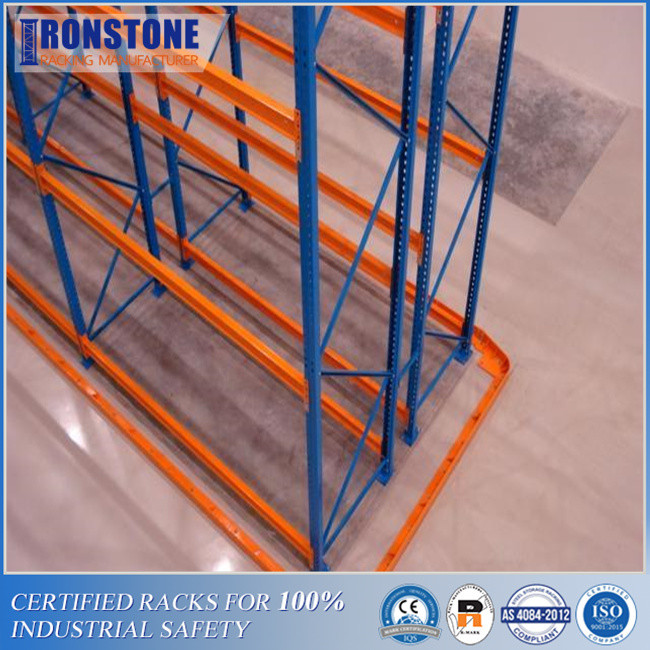

♦Side guide rail: guide rail fixed on the column, used to ensure the accuracy and stability of the forklift when driving in very narrow cargo lanes.
♦Positioner: used to place the pallet in the correct position and ensure the accuracy of the forklift when loading and unloading goods.
♦Wheel protection: prevent the forklift from damaging the shelf during driving.
It should be noted that the accessories and components of VNA Racking may vary depending on the manufacturer and the use environment, and the specific conditions can be adjusted according to actual needs and work environment.


Selective Very Narrow Aisle Pallet Racking System With Optimizing Space 1

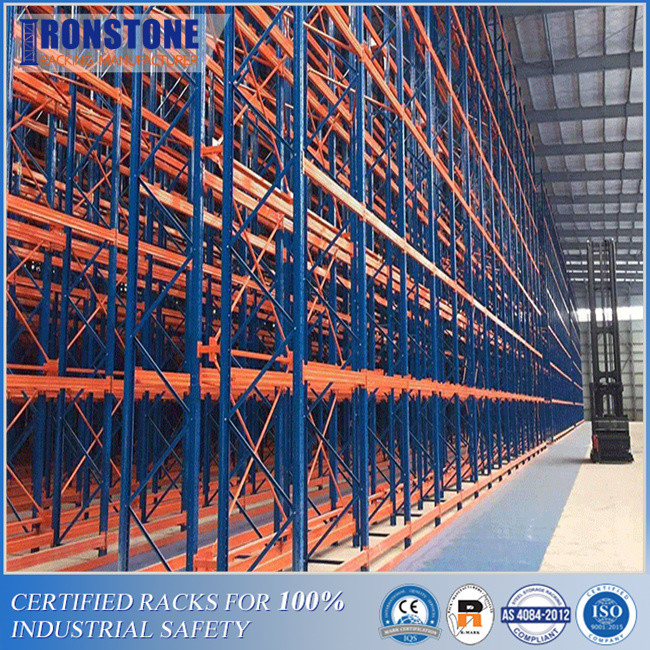

Main Applications of VNA Racking System



VNA racking is particularly recommended for companies whose warehouses have one of the following characteristics:

  • Warehouses that need direct and immediate access to each unit load/pallet, but at the same time, need to optimize the space available.
  • Warehouses that require a large amount of stock.
  • Warehouses that do not have a large footprint, but where the possibility of installing the system is high.


This pallet racking system is used by many different types of industries for companies that have minimal storage capacity in their warehouses but need to increase it within the available space.



Questions You May Care About:


Q1:Does all racks produced by your company?

A1: Yes, we're a DIRECT manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio shuttles, Cantilevers, Mezzanine, etc. All products are 100% produced by ourselves.


Q2: Where is your company located?

A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery. 90,000 sqm production plant, which enables a strong production capacity and stable quality.


Q3: What certification do your products pass?

A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage rack, and comply with FEM and RMI standards.


Q4 How long of your warranty period?

A4: We afford a 10-year warranty and lifetime insurance services of all racking products. For any quality issues that are caused by the quality of products, we'll provide free parts for replacement.


Q5: Are you able to provide installation service?

A4: We have mature installation team with rich project experience. For some complicated cases, our engineer could come to project site and help clients for installation work. Normally, we can offer solutions for your problem through email, mob and video call within 24 hours.


Should any issue you are concerned about, feel free to contact me before and after-sales.
