Solid Construction VNA Pallet Rack For Large Article Turnover

1*20ft
MOQ
USD$0.85/KG
Price
Solid Construction VNA Pallet Rack For Large Article Turnover
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Full Selectivity, Instant Accessibility, High Storage Density
Name: FIFO VNA Pallet Racking
Main Components: Uprights, Beams, Guide Rails, Portal Ties
Forklift Type: VNA Forklift, High Bay Forklift
Application: Warehouse With High Ceiling And Flat Ground
Load Capacity: Customized Ranged From 1500kg To 3000kg
Certification: RMI / AS4084-2012 / CE / ISO9001
Service: Customized According To Warehouse Layout, Free CAD Drawing
High Light:

90*70 Upright VNA Racking System

,

VNA Racking System FIFO

,

1500kg vna pallet racking

Basic Infomation
Place of Origin: China
Brand Name: IRONSTONE
Certification: RMI, AS4084, ISO9001, CE
Model Number: VNA Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Solid Construction VNA Pallet Rack For Large Article Turnover







Problems that customers may encounter





• Require high-density storage capacity.





• Need maximized warehouse space utilization.





• Products for storage are complex with many SKUs.





• Instant access and 100% selectivity are necessary.





• Stock rotation rate is not the foremost concern.





• Warehouse roof vertical altitude is higher than 8 meters.





• Budgets for warehouse racks are limited.







Specifications of VNA racking components



Rack components Column section size(mm) Material thickness(mm) Steel
Uprights 90*70 1.8 Q355B
90*70 2.0 Q355B
90*70 2.3 Q355B
100*80 2.0 Q355B
100*80 2.3 Q355B
100*80 2.5 Q355B
Beams 80*50*1.5 1.5 Q355B
100*50*1.5 1.5 Q355B
120*50*1.5 1.5 Q355B
140*50*1.5 1.5 Q355B
140*50*1.8 1.8 Q355B
160*50*1.8 1.8 Q355B
160*50*2.0 2.0 Q355B





Storage solution of VNA racking designed by Ironstone





Dealing with all these requirements, very narrow aisle (VNA) pallet racking system is highly recommended by Ironstone professional rack engineers. Providing increased storage volume, VNA racking is a condensed mode changed from standard pallet racks.





Leaving vehicles 1.5m to 2.8m wide walkways for material handling, the operation speed and convenience are compromised for more pallet positions while pallets selectivity and accessibility remain the same.





                 Solid Construction VNA Pallet Rack For Large Article Turnover 0

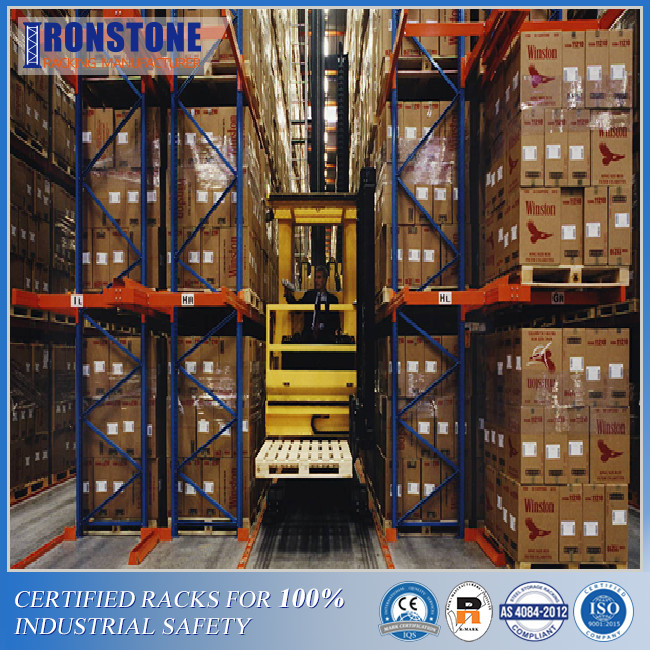

What's more, special narrow VNA forklifts that can rotate to left and right are applied to cargoes placing and picking. For warehouse safety and productivity, flooring guidance is an imperative protection method. Normally, for heavy-duty very narrow aisle pallet rack systems, the ground floor for rack installation should be flat and hard-wearing.





If operated by well-trained workers, products storage and retrieval can be completed at a relatively fast speed achieving a satisfying balance between storage capacity and commodities turnover.





              Solid Construction VNA Pallet Rack For Large Article Turnover 1







Guide rails



          Solid Construction VNA Pallet Rack For Large Article Turnover 2







Beams



          Solid Construction VNA Pallet Rack For Large Article Turnover 3







Why choose Ironstone as your rack supplier







• Ironstone purchases all our raw steels from large national steel factories that established a solid foundation for our excellent rack quality.







• Depending on our factory strength and large-scale production, our cost have been greatly reduced and our customers can benefit a lot from it.







• Personal storage solutions with customized rack types and dimensions provide our clients a lot of satisfying choices.







• Professional advices and CAD designs of storage solutions can be offered free before purchasing for our clients' convenience.







• On the premise of quality control, our delivery time is relatively short with our production capacity and scientific management.




              Solid Construction VNA Pallet Rack For Large Article Turnover 4
