New Type High Density Customized VNA Pallet Cargo Rack System

New Type High Density Customized VNA Pallet Cargo Rack System
Features Gallery Product Description Request A Quote
Certification: RMI / AS4084-2012 / CE / ISO9001
Name: High Density And High Utilization Racking System
Material: Stainless Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: Cold Warehouse Storage, High Ceiling Warehouses, Expensive Floor Cost
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Similarties: Compact Storage System Derived From Selective Pallet Rack
Differences: Aisle Width, Bay Height, Forklift Types
Designs: Customized With Warehouse Layout, Free CAD Drawing
High Light:

1000Kgs Very Narrow Aisle Racking


Very Narrow Aisle Racking System 600mm Depth


600mm Depth Narrow Aisle Storage

Basic Infomation
Place of Origin: China
Model Number: VNA Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Comparison Between Compact Double-Deep And Very Narrow Aisle Pallet Rack Systems




When talking about compact storage solutions, double-deep and VNA (very narrow aisle) easily come into our minds. Both are developed from the standard selective pallet racking system, whereas they have their own features and also share many connections. Warehouse owners tend to choose between them when storage capacity is at a premium.




Common details of warehouse racks


Name Storage rack Material Roll-formed steel
Rack levels 2~15 tiers per bay Color Customized, Green, Orange, Blue, Yellow
Upright Frame Height 2500mm~15000mm Load Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Upright Depth 700mm~1500mm
Finish Epoxy powder coated for corrosion prevention
Usage Pallet loads storage, warehouse storage, carton and boxes items storage
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, upright protectors, wire decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available







►Both use standard selective pallet racks as their basic storage unit;




►Both have denser storage capacity compared to selective racking;




►Both can store more products and save a lot on building footprint costs;




►Both need special forklifts for product handling: VNA forklifts and deep-reach forklifts.







Different configurations

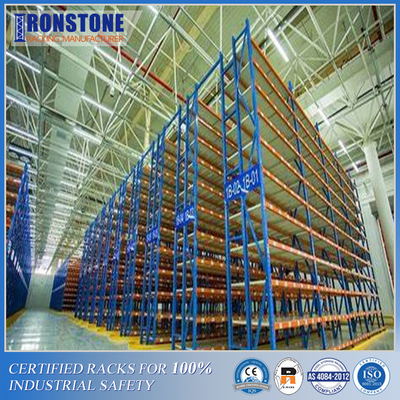

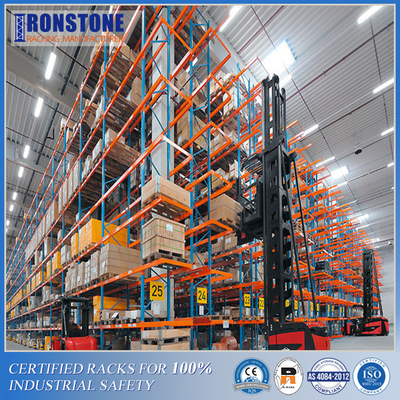

In a very narrow aisle racking system, the rack configuration stays the same with standard pallet racks in one row against the wall and two rows back-to-back. Also, its storage bay is relatively high for space-saving with a maximum height reaching up to 18m;



             New Type High Density Customized VNA Pallet Cargo Rack System 0New Type High Density Customized VNA Pallet Cargo Rack System 1

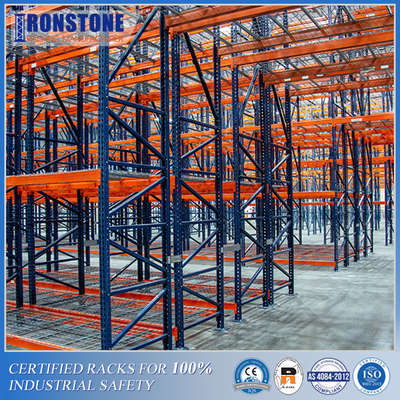

But in a double-deep racking system, three or four rows of racks stand together showing a layout of 3 or 4 pallets deep as the drawing indicated below. And the overall height of this structure is limited by the maximum reach height of double-deep forklifts.




               New Type High Density Customized VNA Pallet Cargo Rack System 2




►Different aisle width


VNA system uses narrowed aisles ranging from 1.8~2.5m for space-saving, while double-deep maintains spacious aisles by eliminating its quantity.




►Different accessibility and selectivity


Very narrow aisle pallet rack offers direct access and full selectivity with only one pallet deep, while double-deep are compromised with several pallets deep structure.




►Different stock rotation


The very narrow aisle rack follows "first pallet in, first pallet out" principle, but the double deep system obeys "last product in, first product out".

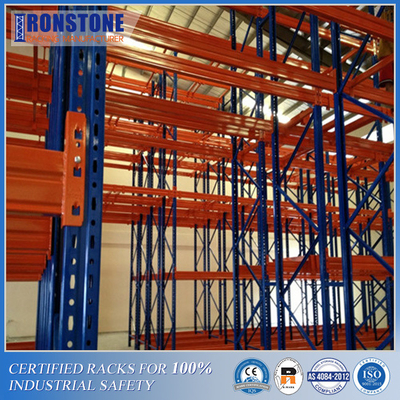

              New Type High Density Customized VNA Pallet Cargo Rack System 3




►Different storage items


VNA system best suits high-turnover products with great access and selectivity, taking full advantage of floor space, while double-deep only offers medium inventory flow and access, providing a great solution to similar products with fewer SKUs. Especially popular among freezers and cold warehouses, the double-deep racking system is widely used in the food, beverages and tobacco industry.




             New Type High Density Customized VNA Pallet Cargo Rack System 4
