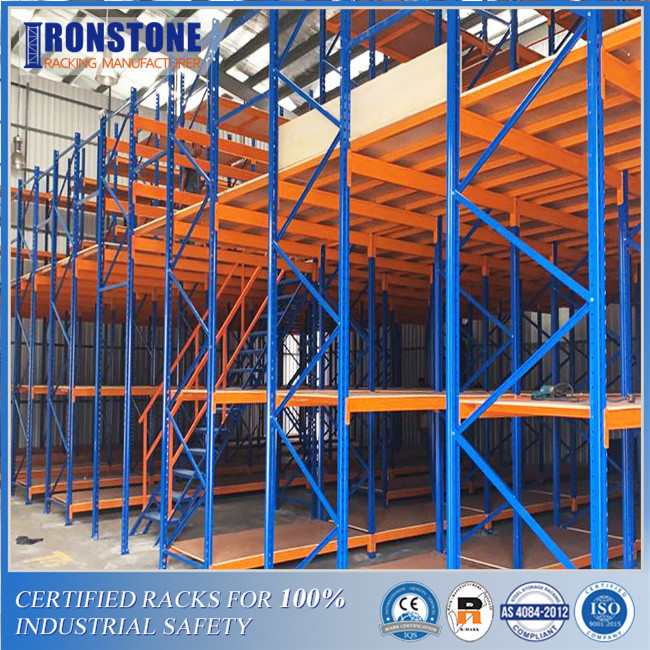

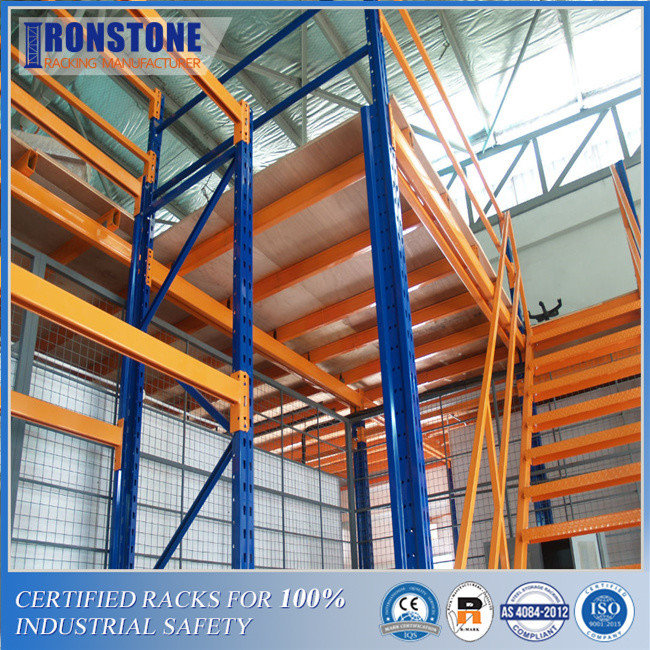

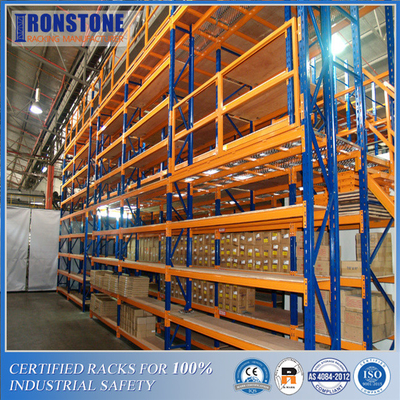

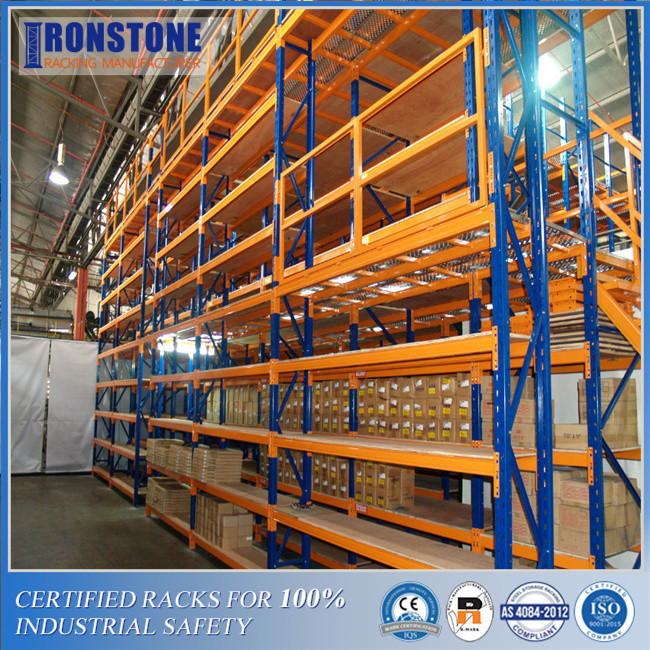

Multi Tier Rack Supported Mezzanine Floor Racking System

Multi Tier Rack Supported Mezzanine Floor Racking System
Features Gallery Product Description Request A Quote
Certification: RMI / AS4084-2012 / CE / ISO9001
Name: Mezzanine Racking System
Material: High Strength Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
High Light:

Mezzanine Floor Racking System


Rack Supported Mezzanine Floor


Multi Tier Rack Supported Mezzanine

Basic Infomation
Place of Origin: China
Model Number: MT-MRS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High Quality China Multi-tier Rack Support Mezzanine Floor Racks System





Rack-supported mezzanine floors are a very practical way of utilizing (often wasted) space above racks. This form of the mezzanine is constructed from pallet racking material and is usually the most cost-effective way of constructing a mezzanine. Storage is gained above the structure with an open deck, plus the deck supports are available pallets that can be left open or utilized as shelves.
Rack Support Mezzanine Utilizes elevated space for shelf storage without the need for a structural mezzanine system. Heavy-duty racking or shelving or cantilever racking becomes the structural support for the catwalk flooring system. This type of shelf storage is more economical than a free-standing mezzanine, with cabinet shelving units installed above and below the mezzanine floor, while still increasing storage capacity.
Multi Tier Rack Supported Mezzanine Floor Racking System 0


Why use racks structure to build  mezzanines?
♦Easy to assemble and disassemble for moving to a new location.
♦An affordable way to create extra space on top of pallet racking.
♦All floors have been designed and installed with future development in mind.
♦Utilize the height of the existing building to maximize the use of ground space.
♦All systems are custom designed to meet your unique operating requirements.
The benefit of this type of mezzanine is the efficiency with which space above your pallet rack can be used to add square footage to your facility. You now have more floorspace to put more pallet racks, office space, work zones, or whatever else you want. Accessing previously unusable vertical space in your facility allows you to expand your storage or manufacturing processes.



Details of the mezzanine system



Dimensions Customized height, width, and length according to your warehouse's available space
Load Capacity Customized as needed, commonly flooring load: 2kpa (200kg/sq. m.), 3kpa (300kg/sq. m.), 5kpa (500kg/sq. m.)
Design Free CAD designs that fully satisfy your storage demand
Regarding your storage requirement select the proper materials and styles
Features The cost-saving solution that affordable for small business owners
Reliable quality and durable structure lasting for a long time usage
The upstairs can be used as an office and the downstairs as a warehouse as a result of its unique structure
Customized colors that fit your warehouse decoration and brand color
Components and Design Factors
♦Rack Supported Mezzanines
Other design elements to consider include stairs, railings, walkways, pallet doors, and decking materials. Safety factors such as enclosing the mezzanine with handrails, having skirting boards and welded steel stairs all help prevent falls that could result in injury or death. Choosing fire-resistant surfacing materials that allow air flow can help reduce fire hazards and allow sprinkler systems to penetrate all layers of stored items. Pallet doors and aisles make loading, unloading and accessing goods easier while saving time and labor.


Multi Tier Rack Supported Mezzanine Floor Racking System 1




Important mezzanine components



A mezzanine is built from a wide variety of essential components. While the precise specifications can vary depending on the needs of your business, some of the critical parts include:




♦Column baseplate








Primary beam




♦Secondary beam




♦Mezzanine stairway




♦Upright frame




Vertical "X" bracing




♦Building columns




♦Under-aisle connection Beam




♦Decking options (e.g., corrugated steel decking, concrete decking, or a layer of metal decking)








♦Rail gates or drop gates




When creating modular mezzanine design systems, it’s essential to consider building codes, height requirements, and the layout of your facility. Failing to meet code requirements or planning appropriately can cause production and efficiency issues, diminishing long-term profits. If you’re thinking about increasing industrial space with modular mezzanine structures, consider the following industrial applications.




Multi Tier Rack Supported Mezzanine Floor Racking System 2




Industry and application references that can take advantage of pallet rack support mezzanine:
♦Warehouses that need to increase storage capacity without expanding their footprint.
♦Manufacturing facilities that need to create more space for assembly, packaging, or other operations.
♦Distribution centers that need to improve material handling efficiency and speed up order fulfillment.
♦The top floor of a retail store that needs to store excess inventory or create additional retail space is often used as additional storage or office space.





(1) Q. What is your minimum starting order?
You only need to purchase one item and we can deliver it to you.
(2) Q: How to buy it?
We can send us directly and we can contact you by mail.
(3) Q. Are you a factory or a trader?
A: We are 100 percent factories.
(4) Q. Can you do the oem / odm?
We offer OEM / ODM services. If you have this need, you can send your logo directly to us, and we will print your surrounding logo on the product.


(5) Q. What advantages do you have with your peers?
1. We are a factory direct sales, affordable prices, product quality is guaranteed.
2. We have a professional technical research and development team, and we have obtained a number of product patent certification in the industry.
3. We are enterprises and key enterprises supported by the Chinese government and strictly control product quality.
4. We have a perfect production line, one product by one production line. Make sure your products are quality and finished on time.
(6) Q. What are your payment methods?
We support. T / T.L / C PayPal, etc.
