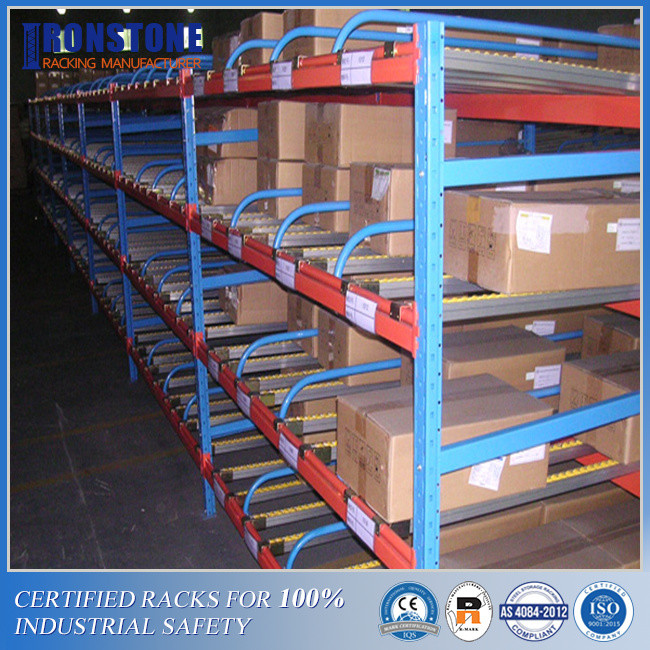

FIFO Automatic Gravity Theory Carton Flow Racking System

FIFO Automatic Gravity Theory Carton Flow Racking System
Features Gallery Product Description Request A Quote
Name: Pallet Flow Rack
Material: High Strength Steel-/American Standard Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Customized As Required
Pallet Weight: Up To 1500kg
Finish: Pre-galvanized Or Painted
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Surface Treatment: Powder Coating,Powder Coating/galvanized,Epoxy Electrostatic Powder,Painting Or Galvanised
High Light:

5m Carton Flow Rack


Industry Storage Carton Flow Rack


FIFO Gravity carton flow racking systems

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: D-PF Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

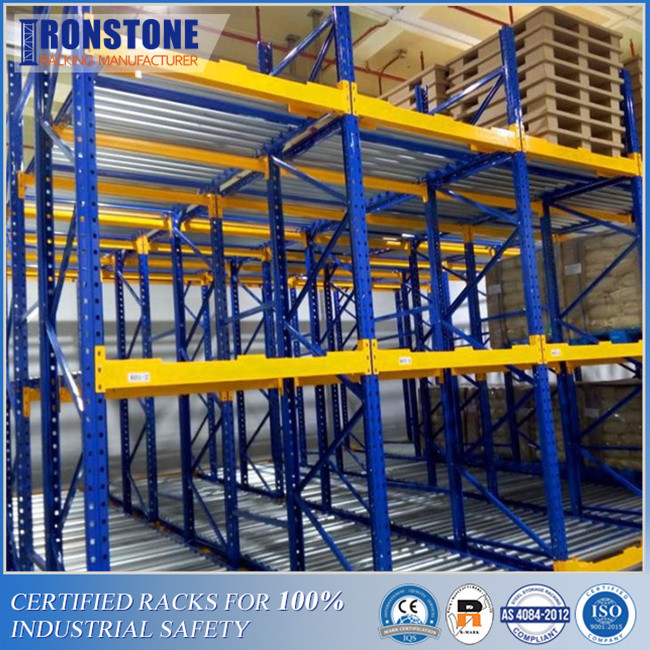

High Efficient Warehouse FIFO Gravity Pallet Live Racking System For Industry Storage




Pallet flow rack, or pallet live rack system, is a tray storage method using gravity and wheels or rollers to transport and accumulate trays in a storage module and is a state-in-first, first-out dynamic pallet shelf system. Depth can range from 2 to over 20 pallets deep. Gravity pallet flows rack system maximizes storage space by reducing aisles while maintaining first-in-art, first-out retrieval order and processing efficiency for fast and efficient inventory turnover.


  • Product Specification Reference
Name Pallet flow rack Material Steel
Shelf levels 2~12 tiers per shelving unit Color Customized
Height Customized
Weight Capacity 150~800kg per shelf
Width Customized
Depth Customized
Finish Epoxy Powder Coated Corrosion Prevention
Usage Cargoes/Boxes/Non-palletized product Storage
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to the order quantity
Assemble & installation Easy assemble with detailed instruction




How Does The Pallet Flow Rack Work?

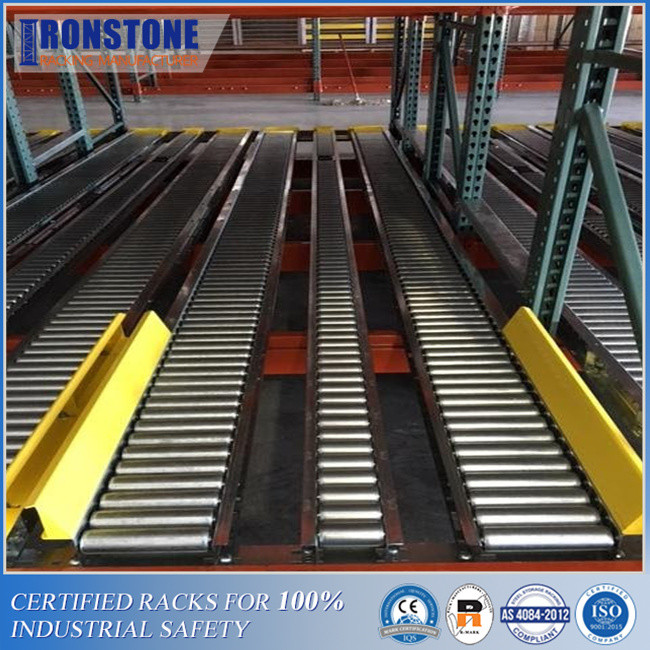

A full pallet is put at the back end of the pallet rack, together with pallet flow channels. Each lane includes wheels or rollers that move pallets to pick-up locations on slanted racks automatically. In our in-house facility, our engineers can determine the proper slope and test it with your actual product. Metal skate wheels move smoothly on pre-assembled solid tracks.



Insert the tray runners into the brackets and secure them with Tek screws. The pallets arrive at the picking surface on the aisle and come to a halt by a metal stop, which keeps each pallet aligned for picking. Durable metal surfaces and pre-galvanized side channels ensure that your pallet flow system can survive daily abuse and warehouse activities.



Benefits of Pallet Flow Racking System




1. To accomplish high-density shelving and automatic gravity flow, the tray flow system employs static racks and dynamic flow rails.
2. Lower handling expenses as a result of automatic product rotation.
3. Because gravity is used, no electricity is necessary.
4. Dedicated loading and unloading lanes ensure a smooth process.
Storage density has been doubled within the same square footage. Higher density results in less real estate and lower utility costs, and less forklift handling results in less product damage.





Component of Pallet Flow Rack


               FIFO Automatic Gravity Theory Carton Flow Racking System 0


Matters Need Attention



The total depth of the shelf (namely the length of the guide rail) should not be too large, otherwise the unused upper and lower "dead corners" will be large, affecting the use of space, and the ramp is too long, the controllability of the slide will be poor, the momentum of the slide is large, easy to cause the decline, block, the role of the pallet goods.



In order to make the slide smooth, if the ramp is long, the damping device should be added in the middle, in order to make the pallet goods slide to the bottom end and not roll due to the excessive impact force, the buffer device and the pickup separation device should be set at the lowest point of the ramp, so the design, manufacture, installation is difficult, the cost is high. This kind of shelf should not be too high, generally, within 6 meters, the weight of the single support cargo is generally within 1000KG, otherwise, its reliability and operability will be reduced.



Ironstone supplies a whole package of rack system products and services. We combine our superior selection of high-quality products with professional, first-rate service. We can help you select the right options for your particular storage needs and provide additional support to help you install your warehouse racking system. Contact us to get your personal design now!
