New Type Dynamic Carton Flow Racking System With Low Labor Cost

New Type Dynamic Carton Flow Racking System With Low Labor Cost
Features Gallery Product Description Request A Quote
Name: Gravity Carton Flow Rack
Material: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Customized Height, Load Capacity, Etc
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

500mm Depth Gravity Flow Racking


Gravity Flow Racking System RMI


500mm RMI gravity racking system

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: MD-GCF Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Highly Effective Gravity Carton Flow Racking System for Medium Duty Storage




The Gravity Carton Flow Racking System provides separate picking and storage paths for full and split cases, saving up to 75% in labor costs compared to static storage solutions. Consisting of a slightly angled roller and roller platform, goods are placed at one end, allowing them to slide safely and gradually descend into the picking lane.



The gravity carton flow racking system allows stock to be viewed, order preparation lanes to be kept full and stock to be replenished at the same time. First, in First out (FIFO) flow reduces operation time and keeps stock fresh.




Name Carton flow rack Material Steel
Shelf levels 2~12 tiers per shelving unit Color Customized
Height Customized
Weight Capacity 150~800kg per shelf
Width Customized
Depth Customized
Finish Epoxy Powder Coated Corrosion Prevention
Usage Cargoes/Boxes/Non-palletized product Storage
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to the order quantity
Assemble & installation Easy assemble with detailed instruction

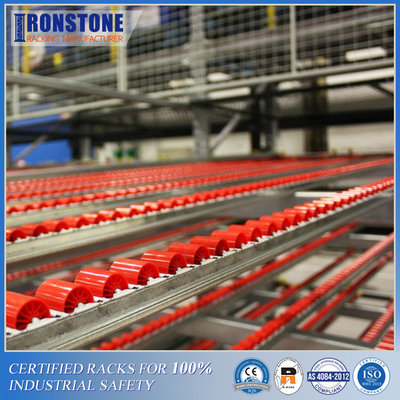

New Type Dynamic Carton Flow Racking System With Low Labor Cost 0



How does the carton flow rack work?



In carton flow racking, the racks support rollers or tilting wheels that allow cartons to slide from the back aisle (loading) to the front aisle (picking). After unloading the front boxes, the lower boxes are automatically slid to the pick-up position to improve pick-up efficiency.

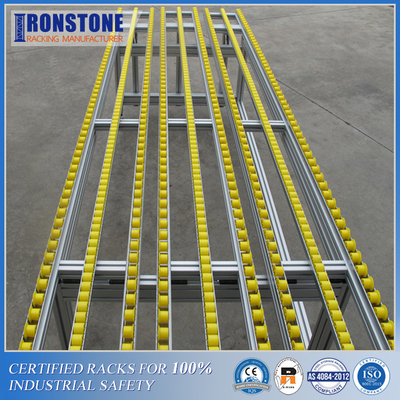

New Type Dynamic Carton Flow Racking System With Low Labor Cost 1



Features of Carton Flow Racking System:



  • Designed for FIFO inventory.


  • Offers high density.


  • Can be integrated with other systems to create sampling modules?


  • A number of carton flow accessories are available to aid safe and efficient distribution, such as: Road guides, Brakes, etc.


  • Tilt trays can be added to the discharge end of the system to make it easier to reach the top during pick-up.


  • Full-bed polycarbonate wheels are available for different carton widths.


  • Full-width steel rollers and polycarbonate wheels for constant carton widths.




Advantages of Carton Flow Racking System:



  • Save space, reduce costs and increase the efficiency of the control center.


  • Roller or wheel systems can be configured as product-specific tracks or adapted to different carton sizes and configurations.


  • Can be loaded from the front or from the back?


  • Uses gravity as a source of free energy.


  • Use of FIFO (First In First Out) or LIFO (Last In First Out) type recovery methods.


  • Significant cost savings.


  • Product visibility avoids dilemmas associated with out-of-stocks.




When to choose the carton flow racking system:



  • Require high density and selectivity.


  • Require evenly distributed trays.


  • You want to reduce the time required to process cases.


  • You want to reduce labor costs.


  • Need a very durable racking system.


  • Consider integrating this rack with other systems to create a pick-up module.
