Dynamic Carton Flow Rack For Manual Handling Convenient Storage

Dynamic Carton Flow Rack For Manual Handling Convenient Storage
Features Gallery Product Description Request A Quote
Features: Fast Stock Rotation With FIFO
Name: Gravity Taken Pallet Flow Racking System
Design: Inclined Rails With Rollers For Semi-automated Pallet Movement
Application: Carton, Boxes, Pallets Storage And Picking
Dimension: H:1.5~3.0Mts,Depth: 0.45~1.2Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: Light Duty, Medium Duty And Heavy Duty
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Components: Upright Frame, Beams, Galvanized Rollers, Bracing
High Light:

FIFO Warehouse Pallet Flow Racking


Pallet Flow Racking System AS4084


flow rail racking AS4084

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: CFR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Gravity Taken Efficient Warehouse Pallet Flow Racking System For Fast Stock Rotation

The warehouse pallet flow racking system is designed for fast stock rotation taking advantage of gravity for pallet storage and retrieval. As a compact storage solution, the pallet flow rack system is getting popular for its energy-saving and productivity improvement. Pallet loads can be stored in inclined rails with steel galvanized rollers.



In pallet flow racking, pallets will be placed by forklift to the storage bay on one side and the picking process will happen on the other side of the bay facilitated by gravity. With these galvanized rollers, pallet loads can slide down easily and quickly and speed can be controlled by braking systems. Since pallet loads can move relatively freely on the conveyors, pallet flow rack can also be categorized as live storage system.

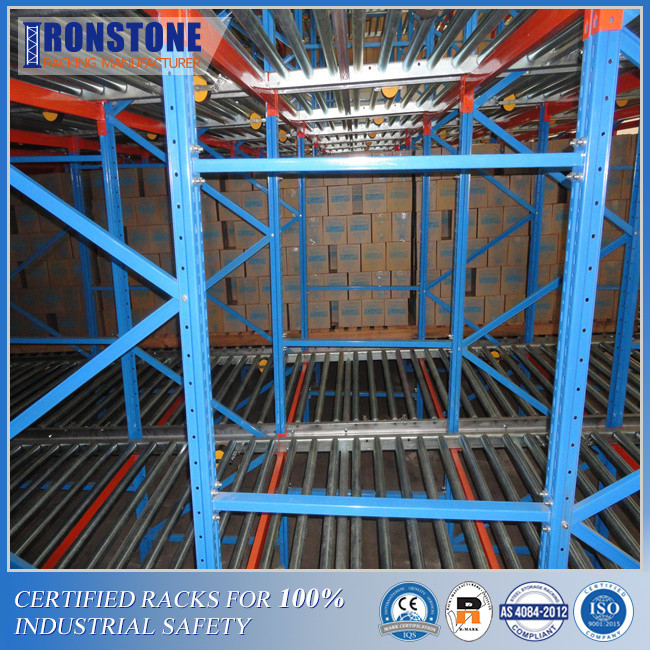

Dynamic Carton Flow Rack For Manual Handling Convenient Storage 0
Pallet Flow Racking System Details

Rack NameGravity-taken pallet flow racking system with fast stock rotation
Rack TypeDynamic flow with semi-automated stock rotation
Upright SectionCustomized sizes, commonly used sections: 80*60, 90*60, 90*70, 100*70,120*95
Beam SectionCustomized sizes, commonly used sections: 80*50/100*50mm
Product MaterialHigh Strength Steel/American Standard Steel
Load CapacityCustomized load capacity, commonly with 1000/1500kg per pallet load
Storage LayerCustomzied, 2-6 Adjustable layers
FeaturesFIFO inventory rotation, fast and efficient stock management
Surface finishPowder coated and galvanized steel for corrosion protection

Structure Features and Advantages

1. With two entry points in each bay, pallet flow racks follow the FIFO stock rotation principle.



2. Pallet flow racks are a high-density storage solution offering up to 15 pallet positions without extra aisles.



3. In gravity-taken pallet flow racks, the material handling speed and safety have been improved a lot.



4. Safety design elements such as braking systems and pallet separators are added to this live storage system



5. Upright frames in pallet flow racking can be customized with different upright sections and pitch distances.



As an environment-friendly storage rack with less energy consumption, the pallet flow system is reliable and efficient and can be applied to many different areas and industries, including food, beverage, pharmaceuticals, chemistry, etc. Applicable to the food, pharmaceuticals, beverages, and chemical industry.

Customer Cases Designed by Ironstone



The goods are deposited from the high end, skidded to the low end, and removed from the low end. During the sliding of the cargo, a damper is arranged on the slideway to control the speed of the cargo to keep it within the safe range. A separator is provided at one end of the chute, and the handling machine can smoothly take out the goods at the first board position.

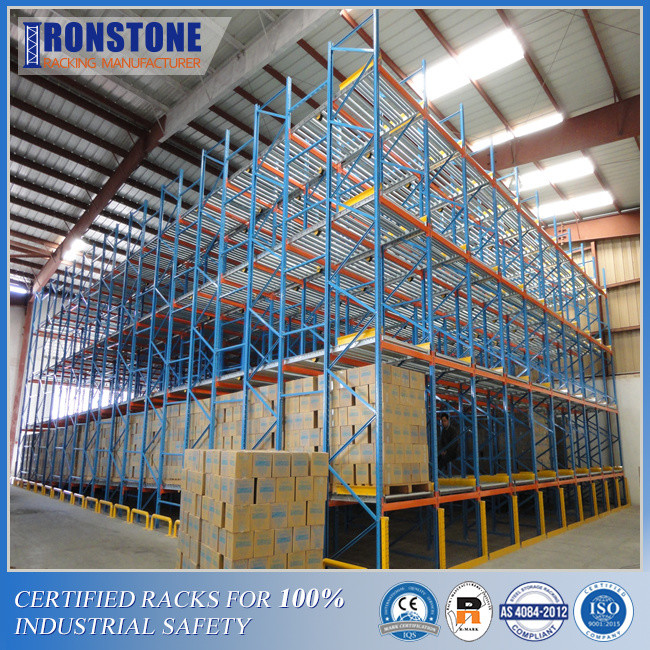

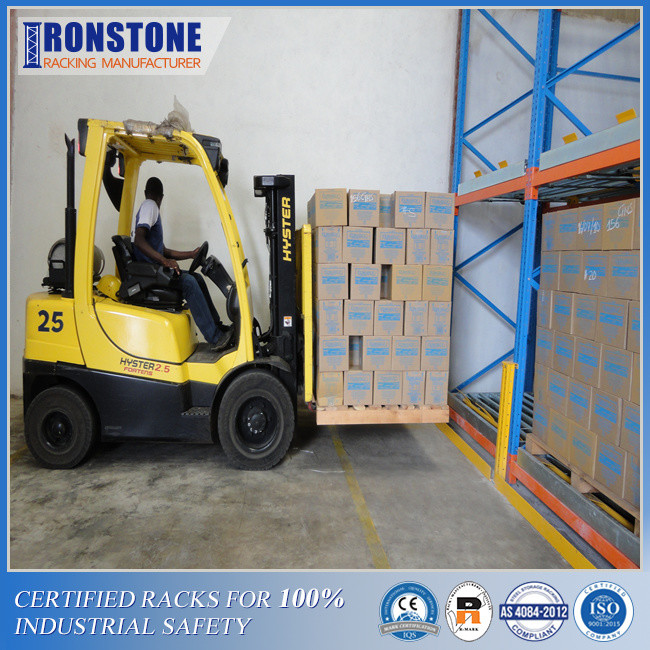

Dynamic Carton Flow Rack For Manual Handling Convenient Storage 1Dynamic Carton Flow Rack For Manual Handling Convenient Storage 2Dynamic Carton Flow Rack For Manual Handling Convenient Storage 3

Dynamic Carton Flow Rack For Manual Handling Convenient Storage 4Dynamic Carton Flow Rack For Manual Handling Convenient Storage 5
