100% Selective Teardrop Racking System For Universal Application

100% Selective Teardrop Racking System For Universal Application
Features Gallery Product Description Request A Quote
Name: Teardrop Pallet Racking System
Color: RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Beam Length: Up To 6000mm
Frame Height: Up To 12000mm
Load Capacity: 500-4000kg/layer
Material Type: High Strength Steel/American Standard Steel
High Light:

12m teardrop racking system


Heavy Duty teardrop racking system


red teardrop warehouse shelving

Basic Infomation
Place of Origin: China
Brand Name: Ironstone
Certification: RMI, CE, AS4084
Model Number: TDPR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Industrial Metal Heavy Duty Shelving Teardrop Pallet Rack with High Quality




Teardrop tray racks feature a bolt-free design with strong welded tensile steel columns and heavy-duty channel supports for a strong and reliable upright truss. The Teardrop Selective Shelving System is so named for its enormous selectivity, allowing access to each individual pallet. This style of construction offers a closed tube design compatible with other teardrop patterns, making it an ideal complement to existing rack beams while having the benefit of stronger, stronger uprights.



This space-maximizing style is considered the most economical option for storing bulk items like boxes or pallets in warehouses. Ease of assembly and rack adjustment capabilities are design advantages offered by bolt-tear drop pallet racking systems. A 100% selective teardrop tray rack system allows access to each tray. This shelf design is both economical and efficient. That's because it can be assembled and adjusted quickly without tools, and it's affordable to buy.



             100% Selective Teardrop Racking System For Universal Application 0




The following are the benefits of the teardrop pallet rack:


Compatibility-Most tear bead rack posts, beams, and accessories can be used interchangeably with other suppliers, making it easier to purchase equipment.

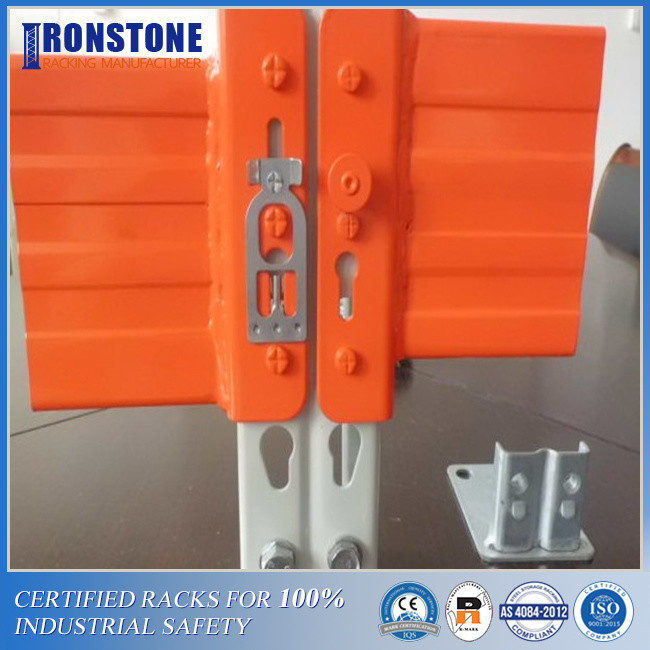

Safety-Basic physics, and the use of beam pins and safety clips, ensure that your frame system is durable and resistant to accidental unloading.


Ease-of-use-Teardrop racks are easy to install and do not require professional skills or tools.


Flexibility-Standardization of the tear ball rack punch style allows warehouse managers to mix and match different columns and beams to meet their storage needs.




Main parts of teardrop pallet racks

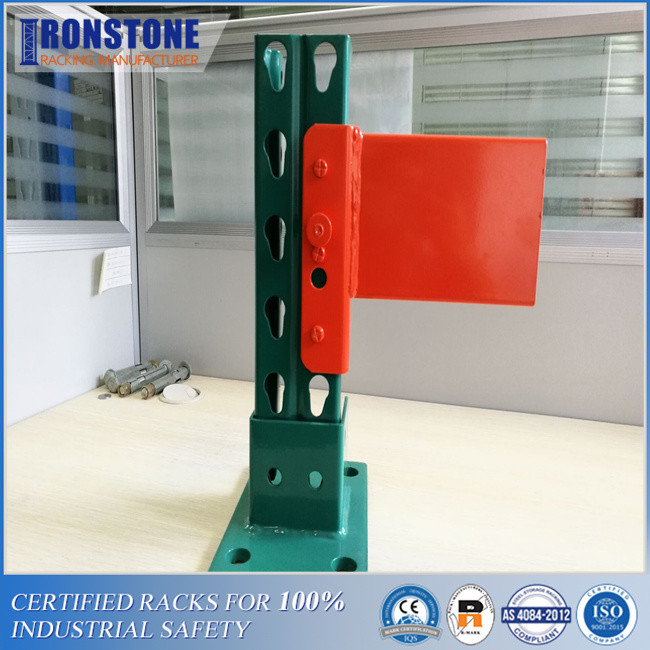

(1)Upright frames



Available Posts:


The standard post sizes are 3.0"*3.0" and 4.0"*3.0" with 12Ga~16Ga thickness available. After combination of support bracings , the teardrop pallet rack upright frame will be formed in different dimensions according to different requirements.



Standard upright size:




100% Selective Teardrop Racking System For Universal Application 1



Multiple bracing patterns:


100% Selective Teardrop Racking System For Universal Application 2


One upright frame is composed of two posts and several horizontal and diagonal bracings, as well as footplates. The model A frame is the most standard type and mode B is for higher loading capacity with more horizontal bracings.




Following Frame Capacity are based on the beam spacing 48"


Upright Frame capacities 3.0"*3.0"*15Ga 3.0"*3.0"*14Ga 3.0"*3.0"*13Ga 3.0"*3.0"*12Ga
18200 (LBS) 22200(LBS) 26600(LBS)






(2) Teardrop Beams



Available beam sections:


The most popular teardrop beams are step style with 1-5/8" step height, which could be used with wire decks as well as wood decks for additional request.




Optional beam lengths


100% Selective Teardrop Racking System For Universal Application 3




Here are some beam capacities of different beam lengths and beam heights:



Beam Capacity

(Per Pair) - LBS

BH=3.0" BH=3.5" BH=4.0" BH=4.5" BH=5.0" BH=5.5" BH=6.0"
Beam Length: 96" 2720 3700 5005 5810 6830 7790 11330
Beam Length: 108" 2280 3030 4000 5000 6110 7000 10100
Beam Length: 120" 1900 2500 3300 4210 5370 6180 9000
Beam Length: 144" 1380 1820 2350 3020 3820 4650






Strengthened step beams:


Ironstone still owns the steel king-style teardrop beams with ribs built around the beam face, which are more durable and stronger.


                  100% Selective Teardrop Racking System For Universal Application 4





 Parameters of the teardrop pallet rack for reference



Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24"-60" Weight Capacity 1000-7000lbs/beam level
Width 48"-156" Height 96”-432” or Customized
Frame Structure Type Welded & Bolted 3"*3" Upright frame with Seismic Baseplate
Beam Type 2.5"-6.25" Step Beam
Beam Connector Type SP & SL Safety Locker
Surface finish Powder coating &Galvanized
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification, ISO9001, CE
Free Sample Available
OEM Available






Q1.Are you a factory or a trader?

We have 100 percent factories, and in order to facilitate international trade exchanges, we also have our own international trade team. Welcome to visit our factory.



Q2. Do you accept both ODM and OEM?

We accept both ODM and OEM orders. Our R & D capabilities enable us to successfully help certain customers grow rapidly, whether in private brand products or white label products, depending on the customer's needs. We also produce products for some of the top importers.



This way, the two companies can benefit from each other. Perfection is key to our business and we know that customers expect superior quality-we are those OEM suppliers on the market with small quantities and far beyond standard.




Q3.How long is the delivery time?

 It usually takes 25 to 30 days. But the exact delivery time varies for different order volumes.



Q4.Do you provide the samples?

We can provide product samples for you to test. Samples can be transported by sea, land, and air.



Q5.What advantages do you have with your peers?

1. We are the factory's direct sales, affordable prices, and product quality is guaranteed.


2. We have a professional technical research and development team, and we have obtained a number of product patent certifications in the industry.


3. We have a perfect production line, one product by one production line. Ensure that your product is quality and completed on time.
