Warehouse Selective Teardrop Pallet Racks With Teardrop Step Beams For Multiple SKUs Storage




Warehouse-selective teardrop pallet racks are widely used in the North American market for various products holding with a lot of advantages such as full selectivity and instant accessibility. Suitable for multiple SKUs products, teardrop pallet racks are composed of teardrop shape uprights and step beams.



New-style teardrop racks step beams can be slid into the punched teardrop hole and locked to the teardrop uprights conveniently and securely. Since most teardrop pallet rack components from different manufacturers can be compatible and interchangeable, before mixing up your storage systems, there are some important points that are worth your attention if you want to apply step beams into your racking system.

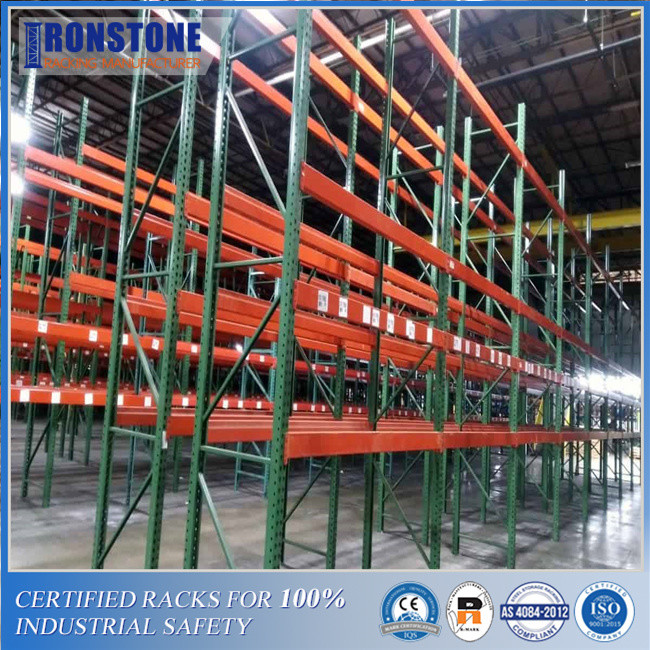

                    Self-Locking Teardrop Pallet Rack Step Beam 0



Teardrop pallet rack details


Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24"-60" Weight Capacity 1000-7000lbs/beam level
Width 48"-156" Height 96”-432” or Customized
Frame Structure Type Welded & Bolted 3"*3" Upright frame with Seismic Baseplate
Beam Type 2.5"-6.25" Step Beam
Beam Connector Type SP & SL Safety Locker
Surface finish Powder coating &Galvanized
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification, ISO9001, CE
Free Sample Available
OEM Available



1) Teardrop step beams are customized components that you need to consult your rack manufacturer for production and stock information.



2) Various beam face sizes, beam lengths, and corresponding load capacities are available for your personal demand.

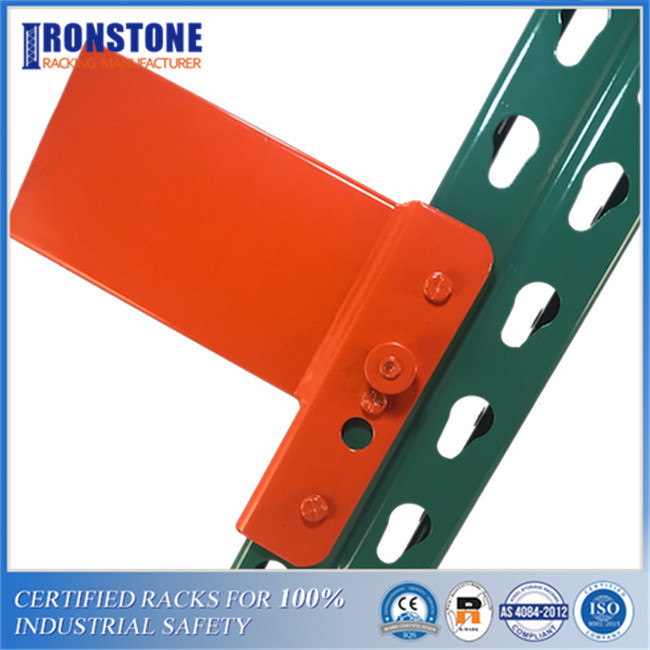

3) Beam faces step beam, as the name shows, there is a step-shaped configuration in it. The beam face height and width have been marked in the picture below.

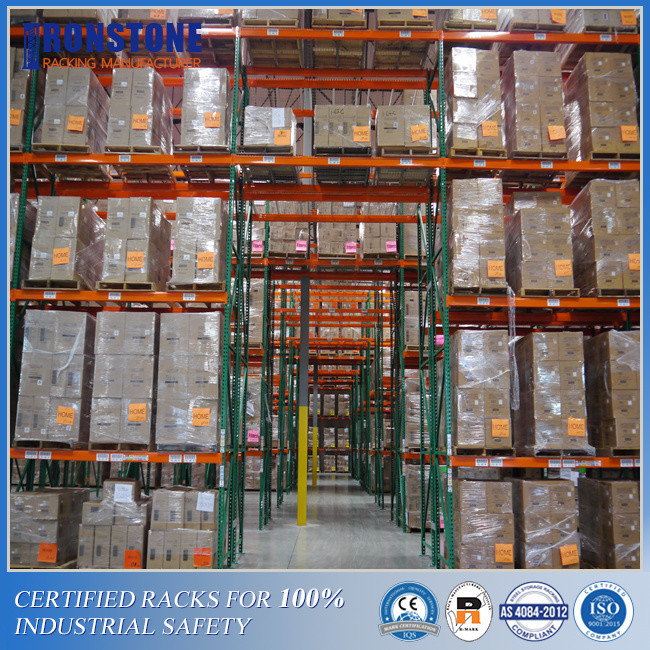

Self-Locking Teardrop Pallet Rack Step Beam 1



4) Pin connectors: accommodating to various beam face sizes, 3 to 4 stud pin connectors will be welded to the end of the step beams for safe upright-and-beam connection.

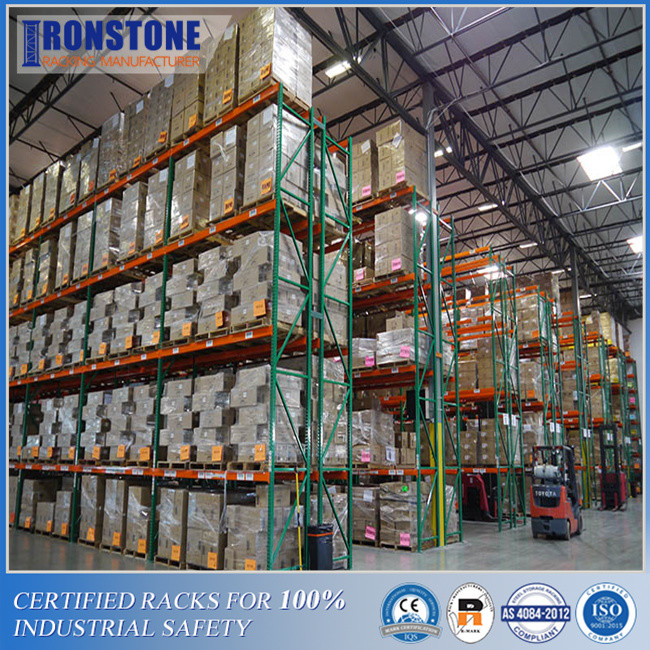

Self-Locking Teardrop Pallet Rack Step Beam 2

5) Beam length refers to the neat distance excluding the pin connector parts during measurement. When deciding the proper beam length for your storage racks, pallet sizes will be the first factor to be taken into consideration. For standard pallets with the size of 40" x 48, 96" length beams and 144" length beams are optional with reasonable handling clearance.



6) For step beams of selective pallet racks, the calculation of beam load capacity will always be on the basis of uniformly distributed beams per pair. For safety storage, the maximum beam deflection should be less than 1/180 of the beam length.



7) Teardrop pallet rack beams are mostly engineered with roll-formed steels with different material thicknesses. For example, the commonly used steel thickness includes 14Ga, 15Ga, and 16 Guage.




Step-beam size 3", 3.5", 4", 4.5", 5", 5.5",6", 6.25"
Length 60", 72", 84", 96", 108", 120", 132", 144"
Thickness  14Ga, 15Ga, 16Ga




8) For step beams in selective pallet racking systems, a lot of supportive options are available for safe and efficient material picking and storing such as beam support bars and step beam-matched wire decks.
