RMI Cetified American Standard Teardrop Storage Racking System

1*20ft
MOQ
USD$0.85/KG
Price
RMI Cetified American Standard Teardrop Storage Racking System
Features Gallery Product Description Request A Quote
Features
Specifications
Color: RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:8ft~45ft,Depth: 24in~60in, Width: 48in~156", Customizable As Request
Load Capacity: 1000lbs~10000lbs/Layer, 12000lbs~59400lbs/Bay
Certifications: R-Marks Certification
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Pallet Back Stop Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Name: Teardrop Warehouse Storage Rack
Material Type: High Strength Steel/American Standard Steel
High Light:

12000lbs Teardrop Storage Racking System

,

Teardrop Storage Racking System RMI

,

RMI Teardrop Upright Frame

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI Certification, R-Mark Certification
Model Number: HD-USTD
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

RMI / R-Mark Certified American Teardrop Style Warehouse Racking







Teardrop warehouse racking is common in the US, Canada, and Mexico for a variety of storage solutions, Teardrop rack is named for its teardrop-shaped holes punched on rack columns, the teardrop-shaped punched holes allow you to mix and match different parts and brands. Its beams are usually designed with embedding rivets at beam end connectors that perfectly fit the teardrop-shaped holes in the racking's upright frames. It's a kind of storage rack that is easy to assemble, adjustable, and compatible with most teardrop-style rack components of other rack suppliers.

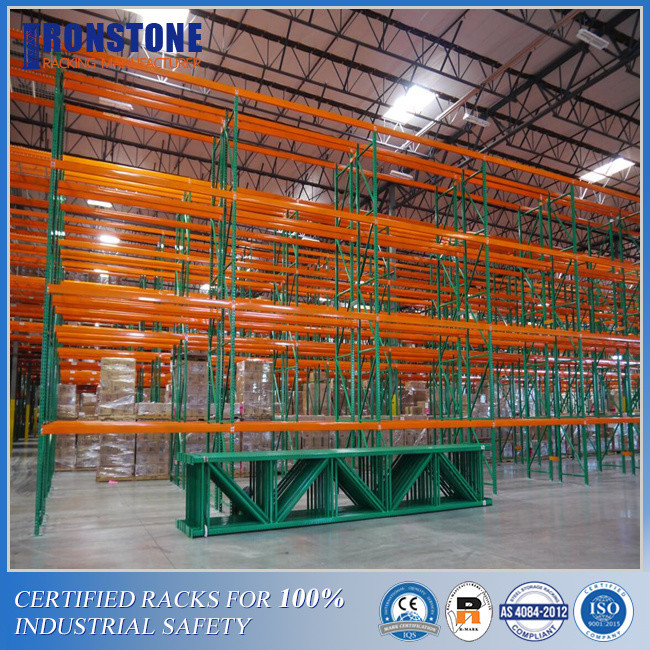

                 RMI Cetified American Standard Teardrop Storage Racking System 0

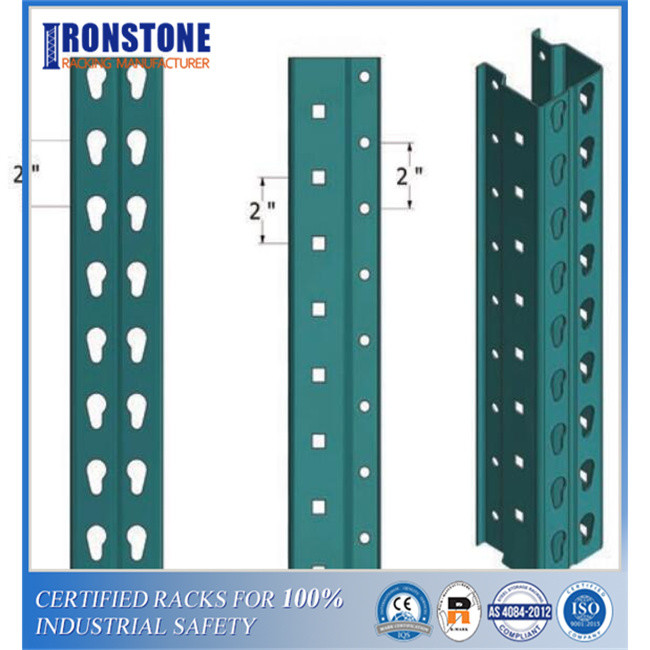

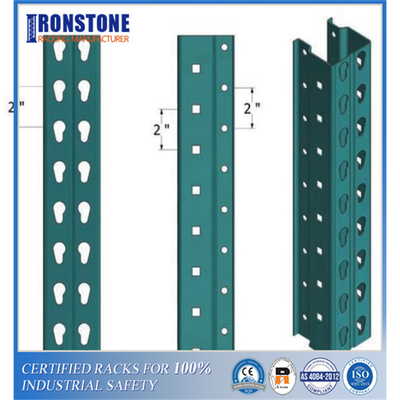

Teardrop Upright Frames





Teardrop Upright frames are composed of cold-rolled columns, horizontal bracings, diagonal bracings, baseplates, etc, the frame structure could be fabricated by welded type, or bolted type. Teardrop upright frame sizes are ranged from 24"~60" deep and 96"~288" high respectively, depending on the different load requirements.



There are 3.0" and 4.0" columns face with 15Ga, 14Ga, 13Ga, and 12Ga thickness for option, green is popular color by epoxy spray surface treatment for anti-corrosion, considering Geographical areas that may have seismicity, seismic footplates is a compulsory design while installing racking systems in the specific site.

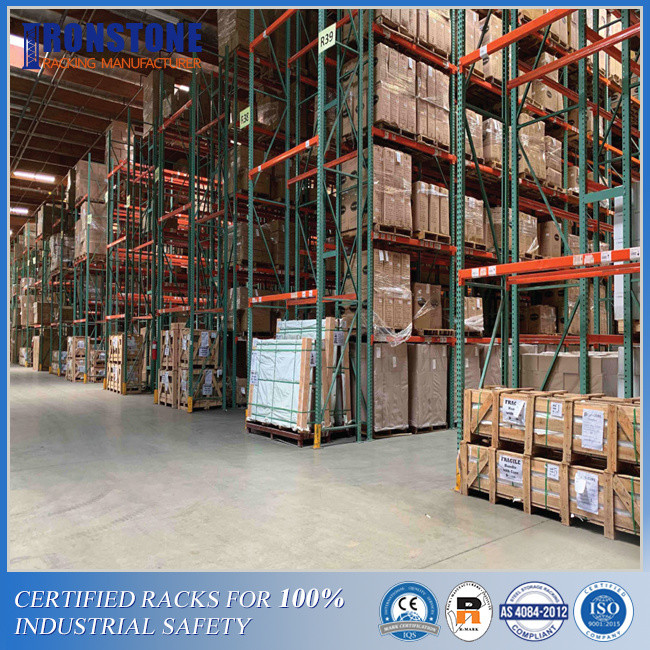

                     RMI Cetified American Standard Teardrop Storage Racking System 1







Teardrop Step beams





Teardrop beams are attached horizontally to teardrop uprights to create a storage rack system, it comes with a standard 1-5/8" step to support U-channels wire decks, pallet supports as customer needs, Various beam faces with custom lengths that can support various load capacities, Teardrop design beam is compatible with most major manufacturer’s teardrop rack.





                    RMI Cetified American Standard Teardrop Storage Racking System 2RMI Cetified American Standard Teardrop Storage Racking System 3





The teardrop universal rack systems are available in various dimensions, including:

►Width: All of our universal teardrop column face options are 3 inches wide.

►Height: Height options for our teardrop uprights include 96, 120, 144, 168, 192, 240, 264, and 288 inches, with depths between 24 and 60 inches.

►Length: The teardrop rack step beam has a universal length of 96 L& 144 L inches.

►Weight: Capacities can range from 1,540 Lb to over 20,000 Lb per pair.

Universal teardrop uprights have a particular advantage over other styles, as they allow you to purchase replacement or add-on components from different manufacturers without having to worry about compatibility. This universal style connects to nearly any beam or part. With a selective teardrop pallet rack, you’ll have immediate access to every storage system and can adjust shelving levels in 2 increments with minimal time and effort invested. Whatever your project, we can meet the teardrop upright quantity you need in size and number.





Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24" - 60" Weight Capacity 1000-7000lbs/beam level
Width 48" - 156" Height 96" - 432" or Customized
Frame Structure Type Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate
Beam Type 2.5" - 6.25" Step Beam
Beam Connector Type SP & SL Safety Locker
Surface finish Powder Coating & Galvanized
Color RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification, ISO9001, CE,RMI/AS4084-2012
Free Sample Available
OEM, ODM Available
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Delivery time 7~25 days as per order quantity
Accessories Bolts and nuts, Upright protectors, decks, etc.
Assembly & installation Detailed assembly instructions are available





Our product certificates



RMI Cetified American Standard Teardrop Storage Racking System 4



Questions You May Care About:



Q1:Does all racks produced by your company?

A1: Yes, we're a direct manufacturer with over 20 years of experience, main products of us include Pallet Racking, Shelving, Radio Shuttle, Cantilever, Mezzanine, etc. All products are 100% produced by ourselves.



Q2: Where is your company located?

A2: Our factory is located in Jiangning District, Nanjing, Jiangsu, China, close to Nanjing Port, convenient for delivery. 90,000 sqm production plant, which enables a strong production capacity and stable quality.



Q3: What certification do your products pass?

A3: We're ISO9001 certificated company. Rack systems are strictly designed and produced based on CE and AS4084:2012 standards for storage racks, and comply with FEM and RMI standards.



Q4 How long of your warranty period?

A4: We afford a 5-year warranty and lifetime insurance services for all racking products. For any quality issues that are caused by the quality of products, we'll provide free parts for replacement.



Q5:Can OEM/ODM?

A5:We can provide OEM ODM service, we know that brand owners care about the quality of products, so our products from the selection of materials, and product style design will be strictly in accordance with your product design drawing design. At the same time, we have a professional research and development team. If you need a product with special functions and requirements, you can also communicate your ideas with us.



Q6:Do you provide the samples?

A6:We can provide the product samples for you to test. Samples can be transported by sea, land, and air.



Q7: When is the delivery time?

A7: It usually takes 25 to 30 days. But the exact delivery time is different for different order quantities.
