Warehouse Roll Formed Teardrop Pallet Racking System

Warehouse Roll Formed Teardrop Pallet Racking System
Features Gallery Product Description Request A Quote
Color: RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Column Size: 3.0"*3.0" With 15GA~12GA Thick
Beam Size: 2.5"~6.0" Beam Face With 16GA~14GA Thick
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Load Beam Size: 96", 108", 120", 144" , Or Custom Size
Upright Frame Size: 96"~450"
Beam Load: 1000lbs~10000Lbs
Frame Load: 17200~27200LBS
Material Type: High Strength Steel/American Standard Steel
High Light:

Roll Formed Teardrop Pallet Racking


1000lbs Teardrop Pallet Racking System


RAL6000 Teardrop Pallet Racking System

Basic Infomation
Place of Origin: China
Brand Name: Ironstone
Certification: RMI
Model Number: TPR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Warehouse Storage Heavy Duty Roll Formed Teardrop Pallet Racking System with Factory Price

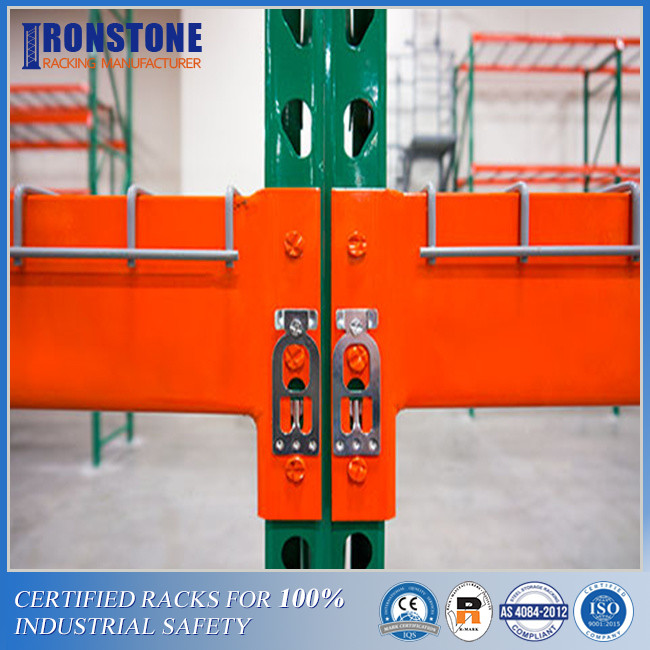

The teardrop pallet rack is one of the most common in warehouses due to its ease of use and strength. The teardrop design takes its name from the teardrop-shaped apertures that run along the length of the upright support pillars. Insert the horizontal and load beams into any of these holes using mounting clips. This setup allows you to adjust the height of your shelves as well as remove and replace them as needed.



The majority of teardrop pallet rack systems are compatible with the traditional teardrop pallet racking design. The center reinforcement provides additional support while boosting strength and stiffness. Larger columns can withstand more impact. When compared to other products on the market, it has a longer service life and requires no extra maintenance. In fact, it can be an excellent facility for industrial, retail, and general storage uses.



Warehouse Roll Formed Teardrop Pallet Racking System 0




Why is the rolling-forming process used?


Roll forming pallet rack describes the method of processing cold rolled steel into pallet rack columns and beams. When the steel is flat, it is punched out (where the beam will be attached), and it is then rolled into the desired shape, which also gives the column its strength and the desired ability. For many industries, rolling-forming pallet racks are an economical option for warehousing and distribution.



It is lighter but is strong, flexible, and durable. Teardrop shelves are one of the most popular roll-forming pallet racks. Posts of rolled molded steel are welded to the substrate to increase stability. The beam is then easily clamped into tear-like openings on the column to form a frame. It allows for faster and easier clip-together types of installation and reconfiguration.




Product specifications



Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24" - 60" Weight Capacity 1000-7000lbs/beam level
Width 48" - 156" Height 96" - 432" or Customized
Frame Structure Type Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate
Beam Type 2.5" - 6.25" Step Beam
Beam Connector Type SP & SL Safety Locker
Surface finish Powder Coating & Galvanized
Color RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification, ISO9001, CE,RMI/AS4084-2012
Free Sample Available
OEM, ODM Available
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Delivery time 7~25 days as per order quantity
Accessories Bolts and nuts, Upright protectors, decks, etc.
Assembly & installation Detailed assembly instructions are available




The following are the advantages of a teardrop rack:


► Compatibility - Most teardrop rack uprights, beams, and accessories can be used interchangeably with other vendors, making shopping for equipment easier.


►Security - Using beam pins and safety clips, as well as basic physics, ensures that your rack system is sturdy and resistant to accidental unloading.


► Ease of Use - Teardrop racks are simple to install and do not require any specific expertise or tools.


► Flexibility - Because the punching style of the teardrop rack is standard, warehouse managers can mix and match different uprights and beams to meet their storage demands.

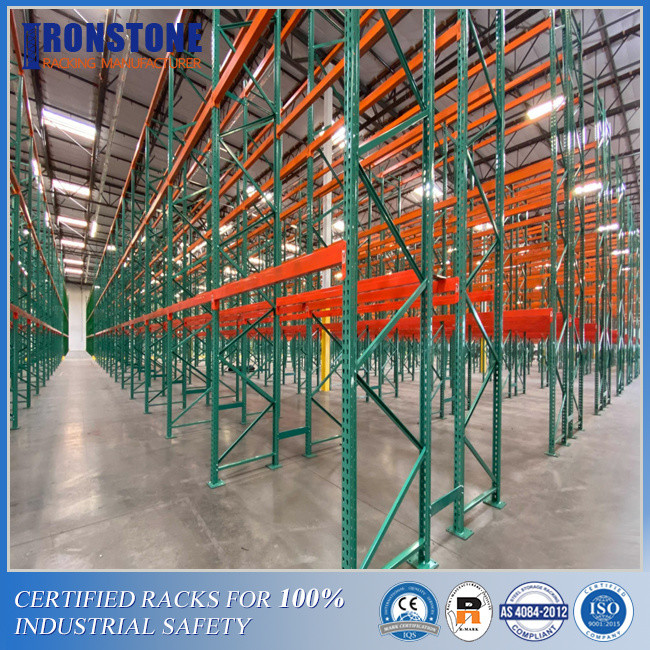

                  Warehouse Roll Formed Teardrop Pallet Racking System 1







1. Universal application system.



2. Industrial, retail, and general warehousing.



3. Easily reconfigured.



4. Many accessories are available.



5. Versatile for inventory changes.



6. Economical installation.



7. Immediate access to every pallet load.

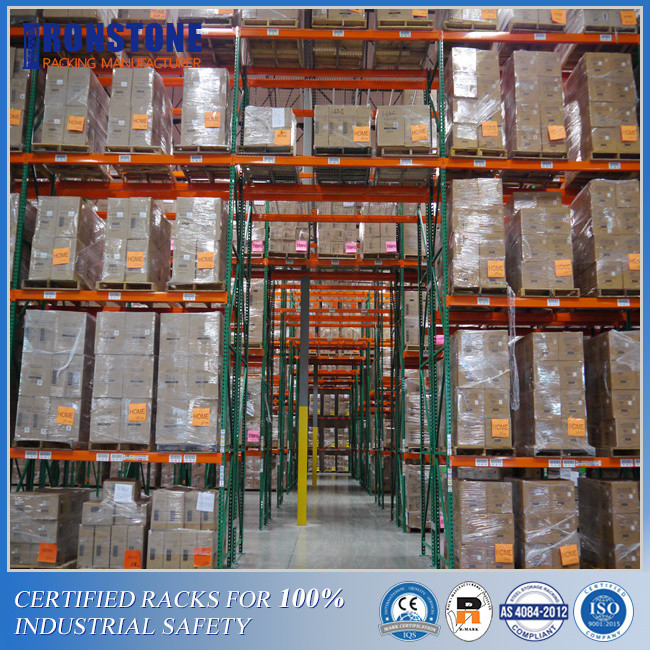

When to use the teardrop pallet racking system?



Teardrop racking applications are a good solution for establishments that already have a teardrop rack but need more constituents or replacements. It is an excellent solution for retail, logistics, pharmaceutical, and other basic warehouse applications. Finally, because teardrop racks can be built to fulfill a variety of criteria, they are ideal for any facility that stores products of various sizes and weights.



                Warehouse Roll Formed Teardrop Pallet Racking System 2



Teardrop pallet rack solutions not only increase the variety of warehouses but also expand their possibilities. By adding and arranging various teardrop raking accessories into your system, you can simplify your storage and shipping processes while keeping expenses down and improving production.




Why should you choose Ironstone for your material handling and storage needs?



♦Professional design & production


As a storage system supplier, Ironstone has professional warehouse design specialists for your warehouse storage plan. The Ironstone production team is equipped with advanced production equipment and experienced and skilled workers who can make all materials in the right way for the storage systems in your warehouse as we plan.




♦Valid certification from an authoritative institution


Ironstone’s racks have been strictly tested by authoritative Institutions in the U.S., which proves that our racks completely comply with the RMI standard. Therefore, you can rest assured that all storage systems established from Ironstone are 100% industrial-safe.


At the same time, our products have passed the test in Australia. It is the latest AS4084-2012 standard norm proposed by Monash University, which is the strictest safety norm in the racking line.



                     Warehouse Roll Formed Teardrop Pallet Racking System 3



♦Fast delivery of your order


Ironstone has more than 250 skilled production employees and a variety of advanced manufacturing equipment, which ensures a great production capacity. Usually, the delivery time is within 20 working days. And if the products you buy are standard ones that we already have in stock, the delivery time will be within 3 days.




♦Consistent after-sale service


We not only design, and manufacture but also provide non-stop after-sale service, we could be in charge of shipment, and installation for your order. Of course, if you want, we could send detailed assembly drawings and videos which will help your installation in your warehouse. Whenever you find any defects during or after the shipment, we will get it done the first time. It is unnecessary to have any worry to work with us.
