Heavy Duty Pallet Racking Carton Flow System For Box Crates Overturn Storage

Heavy Duty Pallet Racking Carton Flow System for Box & Crates Overturn & Storage

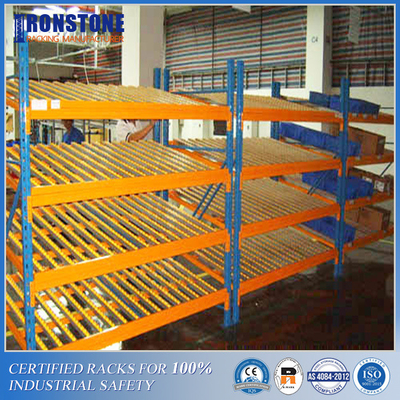

These carton flow racks are perfect for heavier cartons, such as those containing beverages, canned goods, hardware, etc., and have a remarkable overall load rating of 50 pounds per square foot. Ironstone can provide carton flow racking to fit new installations or adapt existing carton flow systems with unique, made-to-order widths and lengths.

Carton flow racks provide flexibility in box size and weight while yet enabling full-shelf use. Our carton flow racks have no "set roller width," allowing endless flexibility and optimum carton flow to the pick aisle. All wheels move independently.

Our Carton Flow Rack Benefits

♦ For all carton flow systems, there are both plastic and steel wheels available.

     ¤  Usually, plastic wheels weigh up to 35 lbs. per sq. foot.

     ¤  Up to 50 pounds can be put on steel wheels. per sq. foot.

♦ Our carton flow systems are enhanced in terms of weight capacity and impact resistance by steel shafts that span the width of the bed.

♦ Bed frame that is welded in one piece and has a robust powder coat finish.

♦ For improved carton flow access, impact plates and tilt shelves can be added.

♦Product separation is possible with the use of optional snap-in wire dividers while preserving width flexibility.

♦ Dividers can be installed almost anywhere on the bed and are easily adjustable with just one hand.

♦ There are different mounting options for carton flow racks that can be used with step, channel, or angle beams.

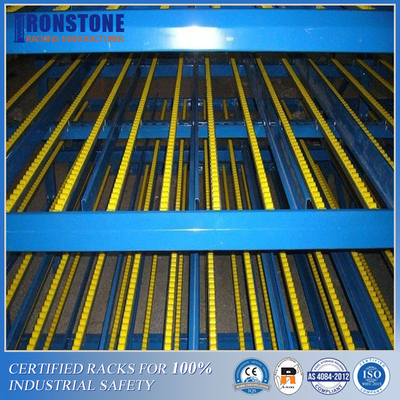

Carton Flow Wheel Track

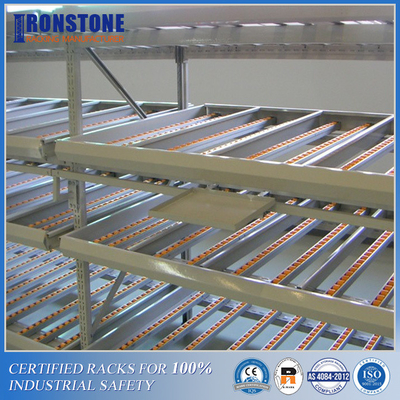

Conveyor frames with integrated roller tracks are at the core of our wheel track carton flow systems, ensuring that the items move securely and under control down a slope from the loading side to the picking side. Our carton flow systems come in a wide range of configurations.

There are possible widths from 48" to 142" and depths from 42" to 192". a maximum 3000 lb load capacity Variable lanes are possible since the tracks and guides are adjusted in 3/8" stages. Standard, with a shallow picking tray, or with a deep picking tray are the three various styles of shelf fronts that are offered.

Our roller tracks are installed in a galvanized steel stable profile that resists torsion and has steel axles. This product can handle box sizes as small as 4" x 4," thanks to its 1-inch diameter and 1-inch broad rollers that are spaced 1-1/4" apart. No rack beams are necessary because our carton flow beds can be mounted to any type of rack and offer practically endless adjustment thanks to a universal adapter.

Carton Flow Wheel Track Components

♦ Roller Tracks

• Extremely robust and long-lasting.

• Variety of choices based on the nature of the load and the type of goods.

♦ Guide Rails

• Allows for optimal load arrangement.

• Steel with galvanized coating.

• Can be found in various lengths.

♦ Connecting Clip

• To attach the roller tracks and guide rails to the framework of the cardboard bed.

♦ Adaptor

• A universal connector is used to attach a carton flow bed to the rack.

• For stands more significant than 75 mm and less than 50 mm, adapters are frequently available.

High-Quality Warehouse Layouts

Ironstone gives the warehouse design section the Auto CAD drawing. They can add your company's border and logo, and you'll have a presentation drawing that looks excellent and is seamless. We can typically complete these warehouse plan drawings in a day or two, making it simple to provide suggestions and ideas to your consumer before your rivals.
