High Efficient Carton Flow Racking With Continuous Inventory Rotation

High Efficient Carton Flow Racking With Continuous Inventory Rotation
Features Gallery Product Description Request A Quote
Name: Pallet Flow Rack
Material: High Strength Steel-/American Standard Steel
Color: RAL Code: Blue, Orange, Yellow, Grey, White, Etc.
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Customized As Required
Pallet Weight: Up To 1500kg
Finish: Pre-galvanized Or Painted
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

Warehouse Pallet Flow Racking


Pre Galvanized Pallet Flow Racking


RAL Code Carton Flow Rack

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: D-PF Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High Efficient Warehouse Pallet Flow Racking For Industry Storage

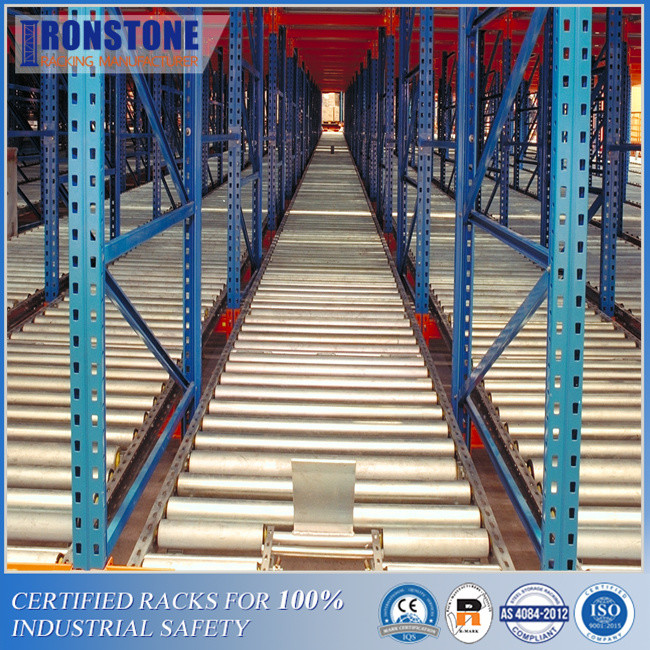

Pallet flow racks, or flow racks, is a pallet storage method that uses gravity and wheels or rollers, to convey and accumulate pallets in a storage module. Regarding gravity pallet racking, by using a roller rail system or pallet with roller and under the influence of gravity, the “first in And first out” of goods is achieved. It is suitable for storing large quantities.


Of goods of the same kind .tanking full advantage of storage space. It is especially suited for goods which a short quality guarantee period and can’t be pressed for a long time. In order to get the goods to move freely, the racking Should be equipped with a brake if the slope is long; in order not to make the goods turn over when racking to the bottom under great dash The lower end of the slope should be equipped with separators and a buffer. The loading capacity is less than 1000kg per pallet.



Name Pallet flow rack Material Steel
Shelf levels 2~12 tiers per shelving unit Color Customized
Height Customized
Weight Capacity 150~800kg per shelf
Width Customized
Depth Customized
Finish Epoxy Powder Coated Corrosion Prevention
Usage Cargoes/Boxes/Non-palletized product Storage
Package Plastic stretch film, corrugated paper, cartons, wooden bars, crates, metal strips, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days according to the order quantity
Assemble & installation Easy assemble with detailed instruction




Configuration of the system:



(1)  Live racking, which operates on a first-in, first-out basis, offers incredibly high levels of storage density in a specific space.

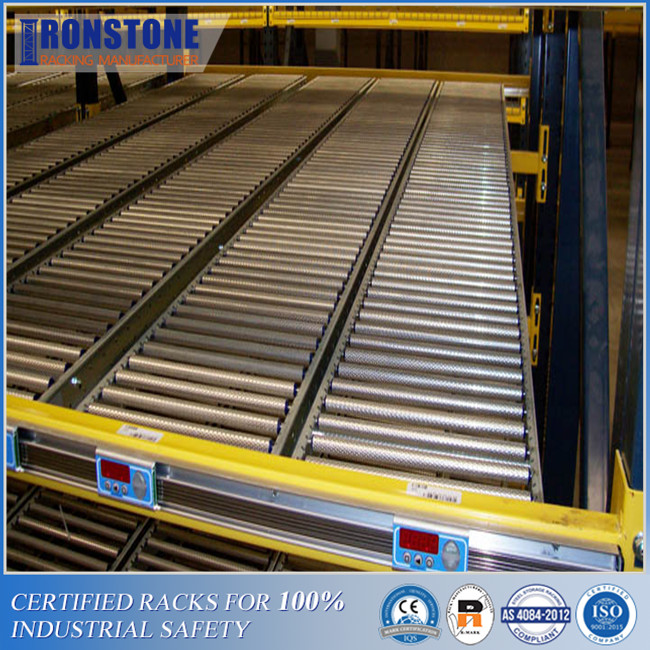

(2) Pallets are put onto incline gravity rollers that have fixed lanes and a fixed grade. The next pallet rolls into position as the picking face removed the pallet, and replenishment stock is loaded at the other end of the lane.
As a result, stock rotation occurs automatically with the least amount of forklift movements.




Benefits of Pallet Flow Racking System:



♦Systems for pallet flow storage offer increased throughput. As soon as a product is entered into the system, it "automatically" goes forward, necessitating minimal product handling.


♦Because just two aisles are needed to load and unload, there is an improvement in density.


♦Systems for pallet flow storage reduce product and forklift damage.


♦Use to position outbound truck loads in the shipping area.




High Efficient Carton Flow Racking With Continuous Inventory Rotation 0



Matters Need Attention



The total depth of the shelf (namely the length of the guide rail) should not be too large, otherwise the unused upper and lower "dead corners" will be large, affecting the use of space, and the ramp is too long, the controllability of the slide will be poor, the momentum of the slide is large, easy to cause the decline, block, the role of the pallet goods.



In order to make the slide smooth, if the ramp is long, the damping device should be added in the middle, in order to make the pallet goods slide to the bottom end and not roll due to the excessive impact force, the buffer device and the pickup separation device should be set at the lowest point of the ramp, so the design, manufacture, installation is difficult, the cost is high. This kind of shelf should not be too high, generally, within 6 meters, the weight of the single support cargo is generally within 1000KG, otherwise, its reliability and operability will be reduced.



Ironstone supplies a whole package of rack system products and services. We combine our superior selection of high-quality products with professional, first-rate service. We can help you select the right options for your particular storage needs and provide additional support to help you install your warehouse racking system. Contact us to get your personal design now!
