Efficient Space Utilisation VNA Racking System For Warehouse Storage

USD $0.85/KG
Efficient Space Utilisation VNA Racking System For Warehouse Storage
Features Gallery Product Description Request A Quote
Name: VNA Pallet Racking
Material: Roll-formed Steel Structural Steel
Feature: Anti-rust, Corrosion-protection
Application: Warehouse With High Ceiling And Flat Floor
Forklift Type: Trilateral Forklift
Aisle Width: 1.8-2.3m
Load Capacity: 500kg~4000kg/level
Certification: RMI / AS4084-2012 / CE / ISO9001
Design: Customized With Warehouse Layout, Free CAD Drawing
High Light:

Narrow Aisle VNA Racking system


Warehouse Aisle VNA Racking system


Steel Q355 Narrow Aisle Racking

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-VNA Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Heavy Duty Narrow Aisle (VNA) Racking for Warehouse Storage

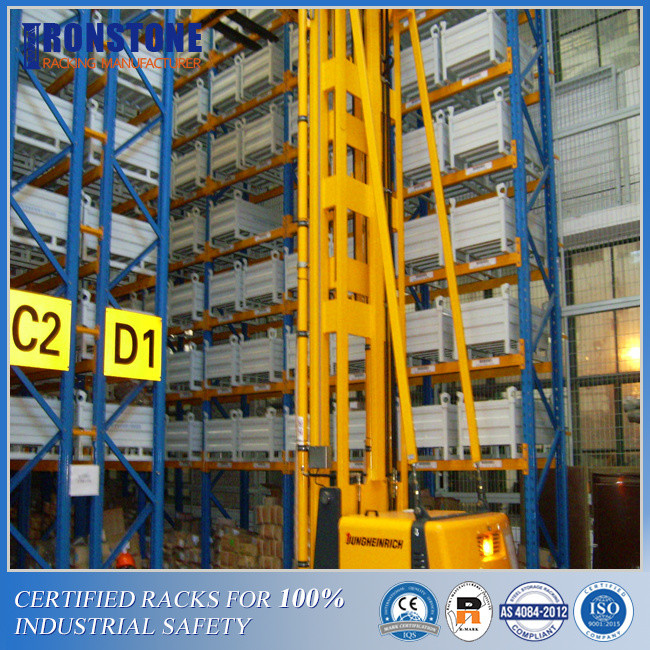

Very Narrow Aisle Pallet Racking, also known as VNA Pallet Racking, is a development over selective pallet racking. Utilizing specialized forklift truck equipment, the system is operated. The VNA truck may pick up pallets from the aisle without turning by rotating its mast or fork from left to right. In comparison to conventional trucks, VNA trucks can operate in aisles with margined width and larger height.




           Efficient Space Utilisation VNA Racking System For Warehouse Storage 0



The width of the aisle varies between 1700 and 2000mm depending on the reach height and pallet depth. The optimal choice for high-density storage has a floor utilization of 50% and 100% selectivity. The system is made to handle typical palletized items. For quick movement of the VNA truck inside the aisle, the rack system comprises of a ground beam and guiding rail. The maximum height of a rack beam is 15 meters.



Name Very narrow aisle pallet racking Material

Roll formed steel

Structural steel

Tiers of each bay 2~15 tiers per bay Color Customized color as client requests
Upright Frame Customized height Load Capacity Customized: ranged from 500~3000kg per beam level
Beam Width Customized: ranged from1000mm~3900mm Upright Depth Customized: ranged from 700mm to1500mm
Surface treatment Epoxy powder coated or galvanized steel for corrosion prevention
Package type Plastic stretch film, corrugated paper, cartons, plywood bars, crates, and metal strips, customized package is also allowable
Assemble & installation Free installation support, detailed assemble instructions are available




Product Specification

              Efficient Space Utilisation VNA Racking System For Warehouse Storage 1

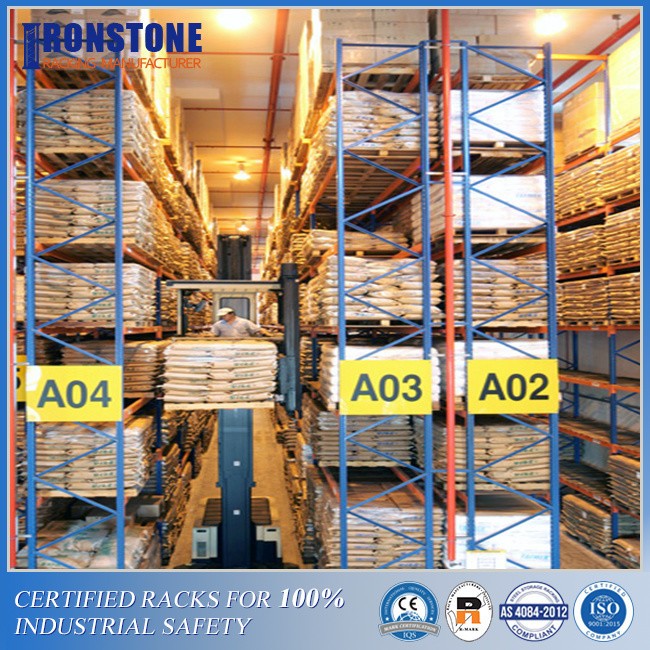

Basic Characteristics



First-In-First-Out/First-In-Last-Out (FIFO/FILO) is the basis on which the system operates, making it appropriate for inventory that needs to be cycled often. To put it another way, because the first items to be deposited are also the first to be retrieved, this sort of storage may accommodate products with a short shelf life. The system provides 100% selective access to each pallet, therefore it works for items that need FILO inventory management.



             Efficient Space Utilisation VNA Racking System For Warehouse Storage 2



Narrow racks can minimize the amount of clear space needed each aisle from the standard 3 to 4.5 meters to only 1.8 meters (or just under 6ft). As a result, there is a sizable amount of space that may be saved, but the cost is that specialized vehicles are required to load and unload goods.




VNA Racking: Uses and Advantages




♦ Best Use of the Space Available


Purchasing narrow racks might be much less expensive when you are short on space than building an additional warehouse or extending an existing one. If your warehouse roof permits it, narrow aisle racking basically forces racks closer together for maximum space efficiency. It can be installed up to 14m (or 45ft).



Unregulated Access to Single Pallets


A turret truck operator may quickly access any pallet at any time, on a FIFO basis, thanks to the characteristics of narrow aisle pallet racking, which mimic those of selective racking. However, narrow racks utilize the available space more effectively than selective systems, enabling you to store an even greater range of SKUs (stock keeping units).




Beautiful Order Picking

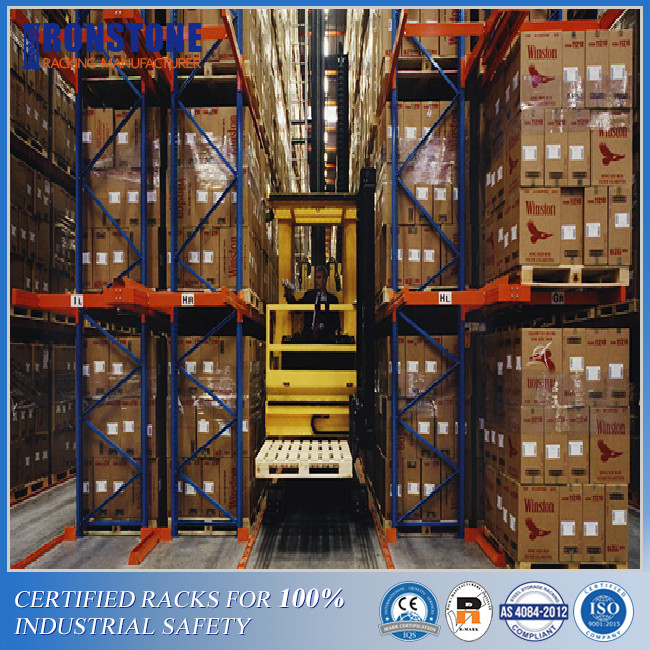

Employees may pick orders from pallets significantly more quickly using narrow aisle racking than with traditional storage systems, especially when combined with turret trucks. In addition to lifting operators to any bay so they can pick and remove merchandise directly, turret trucks can be used to load and unload pallets.



                    Efficient Space Utilisation VNA Racking System For Warehouse Storage 3



Overall, all warehouses that choose a selected system with FIFO access but are constrained by capacity can benefit from narrow aisle pallet racking. The most benefit from this form of storage comes from warehouses with a large diversity of items (or a low number of pallets per SKU) that value high selectivity and exact retrieval of products above entire pallets.

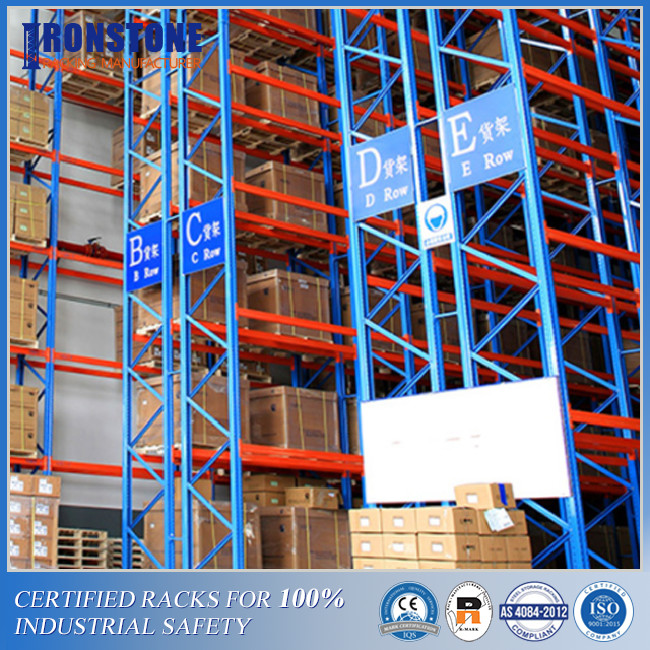

Pallet Racking From Ironstone in A Narrow Aisle


All different kinds of warehouse storage systems have been our specialty at Ironstone for many years. In order to help you develop and plan the ideal narrow aisle racking solution for your space, we are best suited to do so.



Contact us right away to go through the particulars of your project and determine whether narrow racking is the best solution for your storage requirements.



                  Efficient Space Utilisation VNA Racking System For Warehouse Storage 4
