Industrial Radio Shuttle Pallet Rack With Factory Price

Industrial Radio Shuttle Pallet Rack With Factory Price
Features Gallery Product Description Request A Quote
Name: Customized Heavy Duty Radio Shuttle Racking
Key Elements: High Density Pallet Racks, Shuttle Cars, Forklifts
Pallet Runner Mode: Standard Sized Pallet Runner, Customized Pallet Runner
Pallet Type: Steel Pallet, Wooden Pallet, Plastic Pallet
Material Type: High Strengh Steel-Q355/Amercian Standrad Steel
Load Capacity: Customized From 500kgs~2000kgs/pallet
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Usage Range: Automated Product Storage And Retrieval Warehouses
High Light:

Warehouse Radio Shuttle Pallet Rack


RMI Radio Shuttle Pallet Rack


500kgs Radio Shuttle Racking System

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: HQ-RS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Automated Warehouse Radio Shuttle Pallet Rack For High-Efficiency Storage


Radio shuttle is a semi-automated storage and retrieval system that allows for maximum use of warehouse space. Easily managed with remote control, the Radioshuttle pallet shuttle is loaded into storage loads and executes orders to load or unload pallets into a lane.

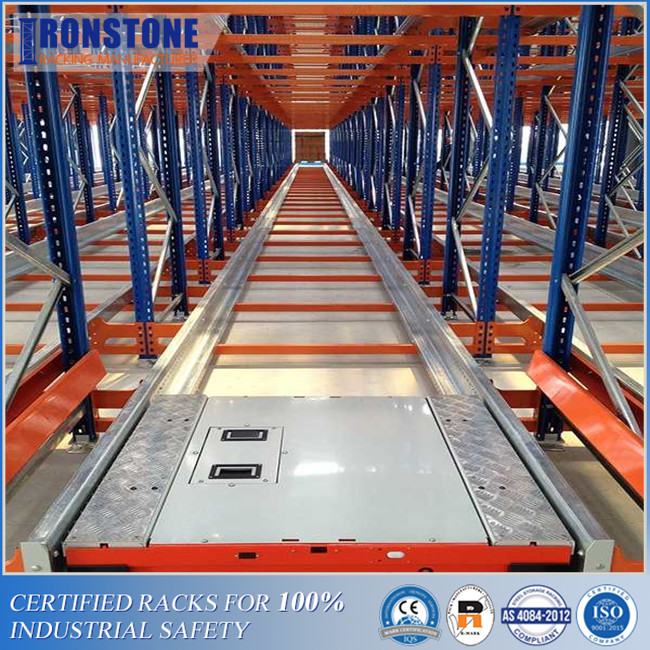

Industrial Radio Shuttle Pallet Rack With Factory Price 0




Its Advantage As Follows


The shuttle trays are more expensive, but there are four advantages to employing them:



(1) The storage capacity is large;



(2) The forklift does not need to enter the racking systems when using shuttle trays; the majority of forklifts may be equipped with a pallet freight access system.



(3) The stability of the racking systems is increased because the forklift does not enter them, allowing pallet cargo to enter on one side and leave on the other. The overall number of cargo types may increase as a result of the possibility of holding the same cargo on each level of the guard rail.



(4) The radio shuttle racking systems are equipped with shuttle trays, so the pallet positions along the deep side could be more than 30, which saves a lot of space in the warehouse a lot.

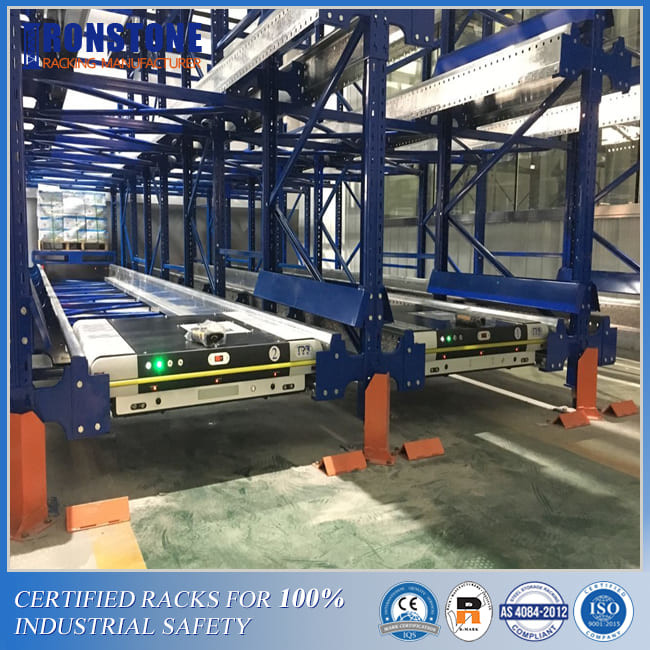

                    Industrial Radio Shuttle Pallet Rack With Factory Price 1


Specific Details of The Radio Shuttle Racking System


Pallet Rack Material High-quality steel with customized mode Q355, Q355

Pallet details

Size Standard 1.2m* 1m pallet, customized pallet sizes are optional
Types Steel, wooden, and plastic pallets are optional

Shuttle car technical parameter


Optional speed without load Low speed: 0.8 m/s, medium speed: 1m/s, high speed:1.2m/s
The optional speed with a full load Low speed: 0.4 m/s, medium speed: 0.6m/s, high speed: 0.8 m/s

Remote Control


Way Of Communication Wireless Communication with WIFI connection
Remote Sensor Range 50 meters
Interactive Mode Touch Screen + Android App
Operating Temperature -20℃~50℃



Radio Shuttle Pallet Racking Operation Flow



►The material handling links of product transportation and storage & retrieval are separated in the radio shuttle racking system.



►Shuttle cars are used in the high-density storage system to pick up and place pallet loads, while forklifts and people are used to move freight outside of the rack structure.



►Shuttle cars will receive orders and signals from a wireless remote control, including starts and stops. For instance, during product storage, a forklift will deposit a pallet load in the first bay position, which will subsequently be hoisted by a shuttle car and transferred to a certain location. In order to unload, a forklift will wait on the aisle and select the designated pallet load from the system.

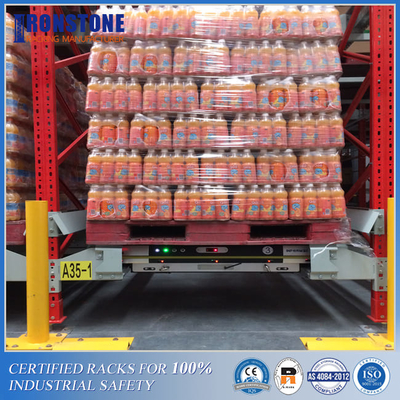

       Industrial Radio Shuttle Pallet Rack With Factory Price 2





 ♦ High volume SKUs, Effective system for loading and unloading, ensuring great precision.



♦ Significantly lower labor costs because the forklift doesn't enter the racking units, resulting in less damage to the units.



♦Sites that have a reasonably high turnover - greater than 5 times per year.



♦Storage layouts where deep lane storage is the best option.



♦Perfect for low-temperature storage (-25°C).

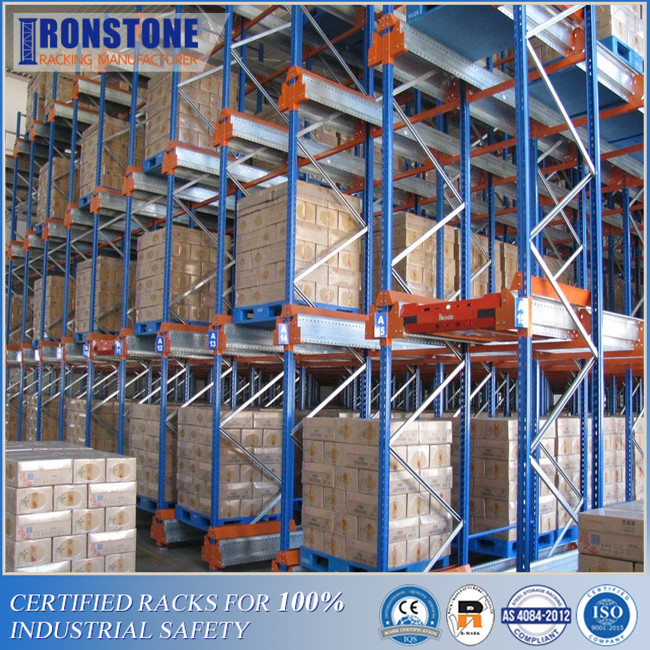

             Industrial Radio Shuttle Pallet Rack With Factory Price 3



OEM Service Offered


We adopt advanced manufacturing equipment and technology to produce pallet racking and shelving systems so that they can be used to store a variety of goods. We can also provide you with an OEM service based on your samples.
