Industry Compatible Teardrop Pallet Rack System With Large Base Plates

1*20ft
MOQ
USD$0.85/KG
Price
Industry Compatible Teardrop Pallet Rack System With Large Base Plates
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Teardrop Rack
Color: RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Column Size: 3.0"*3.0" With 15GA~12GA Thick
Beam Size: 2.5"~6.0" Beam Face With 16GA~14GA Thick
Usage: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Load Beam Size: 96", 108", 120", 144" , Or Custom Size
Upright Frame Size: 96"~450"
Beam Load: 1000lbs~10000Lbs
Frame Load: 17200~27200LBS
Material Type: High Strength Steel/American Standard Steel
High Light:

Teardrop Pallet Rack System

,

Warehouse Teardrop Pallet Rack System

,

RMI Logistics Teardrop Pallet Racking

Basic Infomation
Place of Origin: China
Brand Name: Ironstone
Certification: RMI
Model Number: V-TPR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Industrial Teardrop Rack for Bulk Storage





Teardrop pallet rack are one of the most common types of pallet racks used by warehouse storage and distribution centers across America. Teardrop pallet rack is another name for roll formed selective pallet rack, which is commonly manufactured in a teardrop style (nicknamed because the holes on the column of the upright are shaped like a teardrop).





Pallets then rest on the horizontal load beams that are held in place by mounting clips. Because the clips on teardrop configurations can be quickly removed, the shelves can be adjusted to different heights or reinforced to bear different weights to accommodate various load sizes.

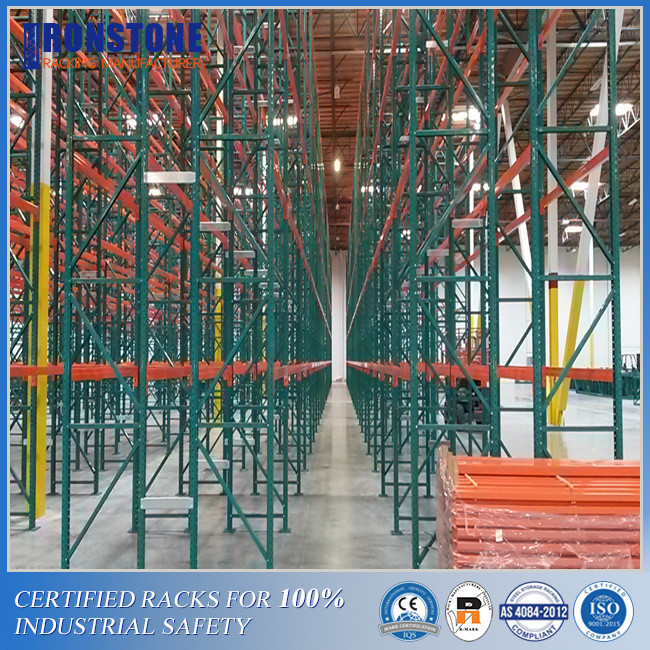

                     Industry Compatible Teardrop Pallet Rack System With Large Base Plates 0





Teardrop Pallet Rack is taken as a suitable and economical storage solution and the most popular in American and Canada market. Teardrop pallet rack is not only subject to storing various goods in small quantity, but storing uniform commodities in large quantity as well. It works with forklift or stacker.





1) Cut-in composite structure.





2) The height of each beam can be adjusted by pitch 50.8mm freely.





3) Smart section design and high-quality steel.





4) It facilitates the use of forklift trucks, electric reach trucks, narrow aisle turret trucks.





5) It is the most widely used design of the storage system.





Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24"-60" Weight Capacity 1000-7000lbs/beam level
Width 48"-156" Height 96”-432” or Customized
Frame Structure Type Welded & Bolted 3"*3" Upright frame with Seismic Baseplate
Beam Type 2.5"-6.25" Step Beam
Beam Connector Type SP & SL Safety Locker
Surface finish Powder coating &Galvanized
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification, ISO9001, CE
Free Sample Available
OEM Available





Features



♦ Taking use of cold-rolled steel uprights to improve the load capacity.





Space between beams can be adjusted by 3"mm pitch up and down.





Assembled frame structure with safety facilities; easily assembled and disassembled; conveniently maintained and spare parts changed.





Surface treated by epoxy powder coating with high corrosion resistance.





 It can be worked with pallet supports, back spacers; panels; upright protectors; frame guards and back mesh according to requirements.

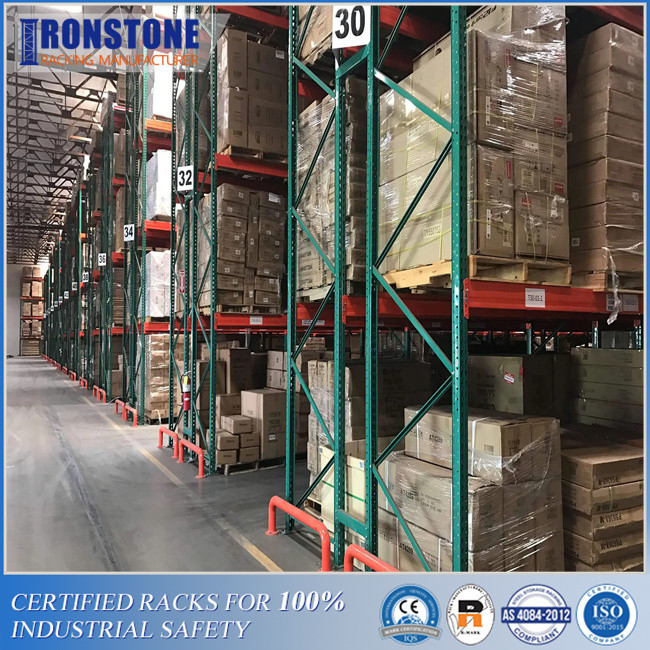

                      Industry Compatible Teardrop Pallet Rack System With Large Base Plates 1

Advantages





►Maximize storage space and inventory access.





Economical- buy and sell used teardrop pallet racks.





Supports various weights and dimensions.





Teardrop pallet racks are interchangeable with most manufacturers.





Innovative design allows for fast and simple assembly.





Many different brands of teardrop can be used together providing several options when choosing used pallet rack.

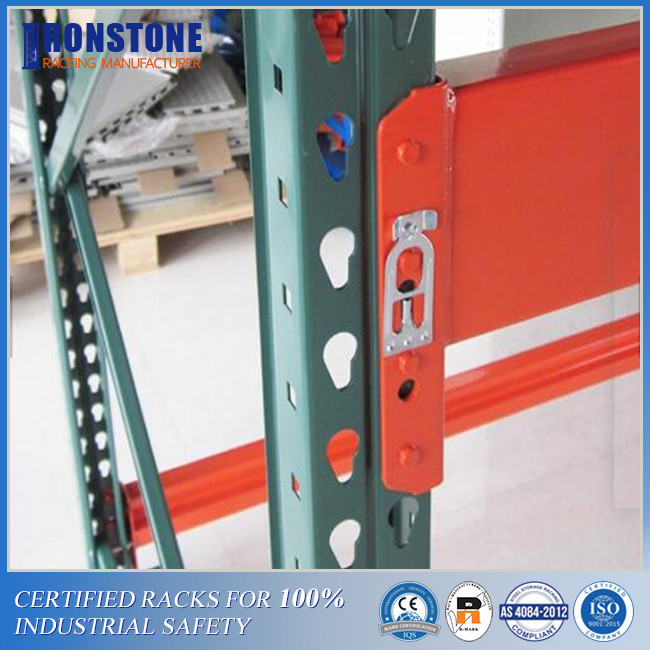

                     Industry Compatible Teardrop Pallet Rack System With Large Base Plates 2





Warehouse pallet rack comes with either bolted or boltless (welded) frames. Their patented beam-to-frame connection creates the most sturdy, dependable structure available. Ironstone uses only high-strength steel, certified to meet the strictest requirements and provides exceptional protection against damage or accidental beam disengagement. Baked enamel finishes and a durable powder coating ensure a long service life for your warehouse storage systems, even under the harshest conditions.







Installation Support



Ironstone company has a professional racking installation team, they can install or relocate of the corresponding position of the storage racks or other related logistics equipment according to the different needs of customers.



♦ Our construction management personnel dispatched have different types of construction project management experience at home and abroad, they have more than 7 years work experience in the field of management.





♦ The construction team have the corresponding qualifications required in construction and safety concept.





♦ In the construction site to comply with the rules of discipline and regulations, obey the management of the buyer.

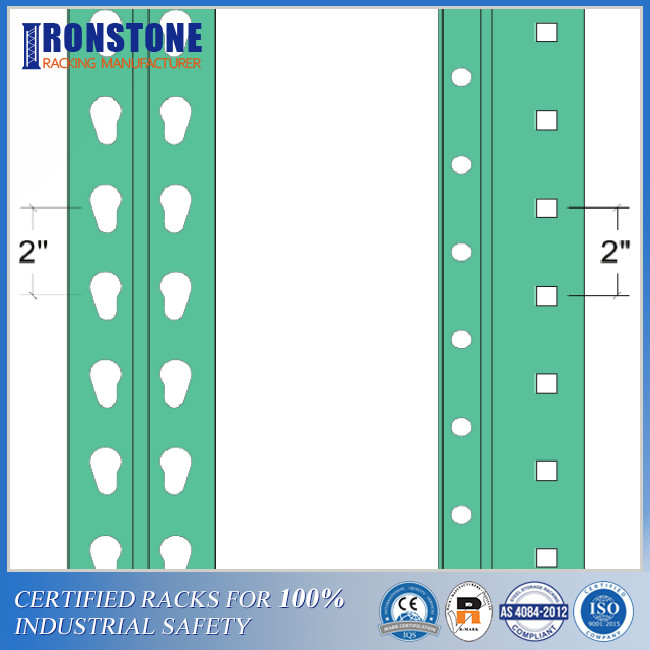

               Industry Compatible Teardrop Pallet Rack System With Large Base Plates 3
