Highly Selective Teardrop Pallet Racking System For High Turnover Rate

1*20ft
MOQ
USD$0.85/KG
Price
Highly Selective Teardrop Pallet Racking System For High Turnover Rate
Features Gallery Product Description Request A Quote
Features
Specifications
Features: Full Selectivity For Multiple-SKUs
Name: Teardrop Selective Rack
Rack Types: US Standard Teardrop Pallet Racks
Color: RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Dimension: H:8ft~45ft,Depth: 24in~60in, Width: 48in~156", Customizable As Request
Load Capacity: 1000lbs~10000lbs/Layer, 12000lbs~59400lbs/Bay
Certifications: R-Marks Certification
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Pallet Back Stop Etc.
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Material Type: High Strength Steel/American Standard Steel
High Light:

Galvanized Teardrop Pallet Racking System

,

Warehouse Storage Teardrop Pallet Racking System

,

Steel Q355 Teardrop Pallet Racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: R-Marks Certification
Model Number: HD-USTD
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Heavy Duty Teardrop Pallet Rack System







In pallet racking, multiple levels of horizontal shelves hold palletized items. Forklifts are used to store and remove pallets. This type of racking makes the most of warehouse space and improves loading and unloading efficiency. Teardrop pallet racks occupy the number one spot when it comes to popularity. They are stable, safe, easy to assemble, and uniform in ways that make it easy to expand or swap out components.





The teardrop shape is wider at the top than at the bottom. The horizontal beam pin is pushed securely into the hole, and its head is below the wider opening. As a result, teardrop pallet rack beams won’t slip out unless you lift the shelf upward.





Even then, a safety catch prevents slipping in the event that a forklift accidentally forces the beam upward. Because of the wide degree of uniformity, you can mix and match components from different lines, or easily find a functional used teardrop pallet rack system. Just be sure that the measurements match your needs precisely.

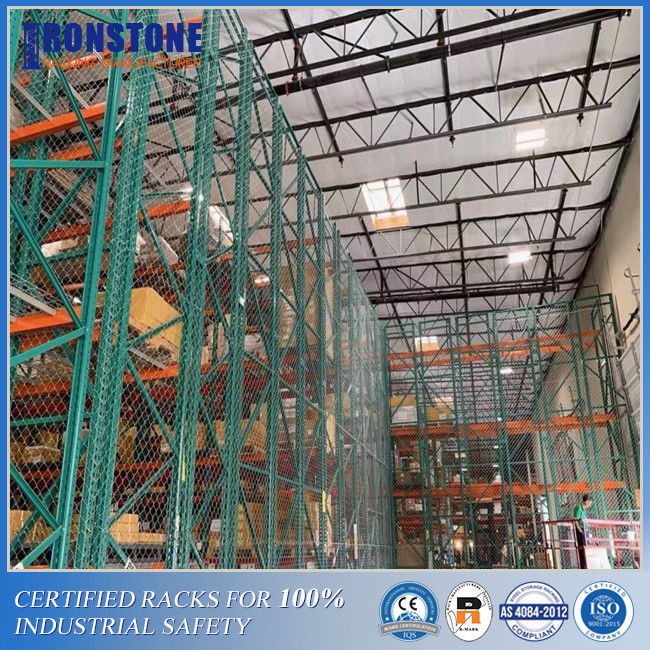

            Highly Selective Teardrop Pallet Racking System For High Turnover Rate 0





Our 42''D*144''H teardrop upright frame provides the perfect combination of versatility, compatibility, strength, and selectivity. With a selective teardrop pallet rack, you’ll have immediate access to every storage system and can adjust shelving levels in 2” increments with minimal time and effort invested. The patented spring-lock locking mechanism replaces the pinch-pin system to provide beam-to-column engagement for faster installation and safety. A center reinforcing ring is unique on the teardrop configuration, providing heavier bracing and larger columns for better impact resistance.





Teardrop pallet rack details





Name Teardrop (US) Pallet Rack Material American standard steel
Depth 24" - 60" Weight Capacity 1000-7000lbs/beam level
Width 48" - 156" Height 96" - 432" or Customized
Frame Structure Type Welded & Bolted 3" * 3" Upright frame with Seismic Baseplate
Beam Type 2.5" - 6.25" Step Beam
Beam Connector Type SP & SL Safety Locker
Surface finish Powder Coating & Galvanized
Color RAL6000(Green), RAL5003(Blue), RAL2001(Red Orange), RAL2004(Pure Orange), RAL1037(Safety Yellow), Or Custom Color As Request
Application Environment Normal Temperature or Cold Room (Max -40C)
Certification RMI Certification, ISO9001, CE,RMI/AS4084-2012
Free Sample Available
OEM, ODM Available
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Delivery time 7~25 days as per order quantity
Accessories Bolts and nuts, Upright protectors, decks, etc.
Assembly & installation Detailed assembly instructions are available





Teardrop Style





♦ Fully welded upright frames utilize horizontal and cross bracing for added structural support and strength.


Meets RMI standards and specifications.


Capacities can range from 1,540 Lb to over 20,000 Lb per pair.


Quality, high-strength steel construction.


Powder coating for added protection and corrosion resistance.


Fully welded upright with support bracing for added rigidity.


Teardrop punches on 2” centers for easy assembly.


Footplates can be anchored to the floor through pre-punched holes.


Compatible with accessories such as wall ties and row spacers.

♦ Beam ranges in size from 96 inches to over 144 inches.

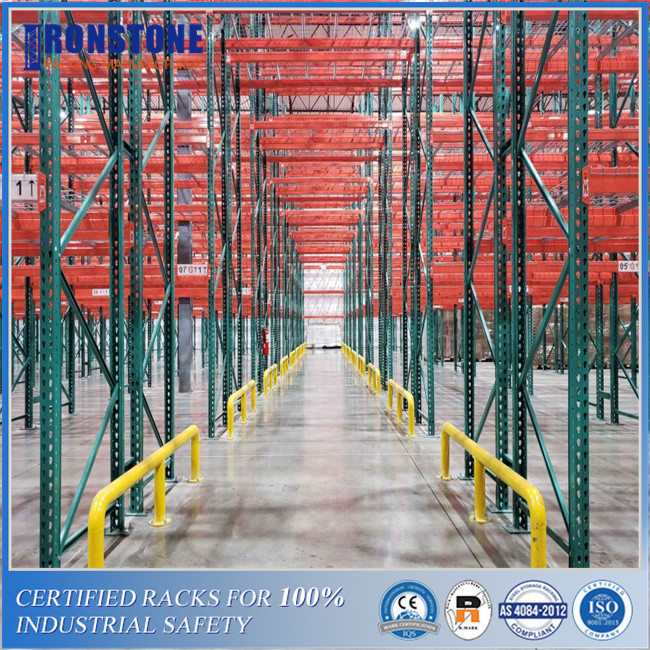

Highly Selective Teardrop Pallet Racking System For High Turnover Rate 1





Benefits of Teardrop Pallet Rack System





► Easy to assemble, disassemble, and reconfigure spaces.



► Easy to adjust height and width.



► Widespread compatibility.



► Stable and safe.



► Relatively inexpensive.



► Versatile and customizable.



► Keep in mind, however, that teardrop pallet racks are not the strongest or longest-lasting option for warehouse shelving that needs a more permanent solution.

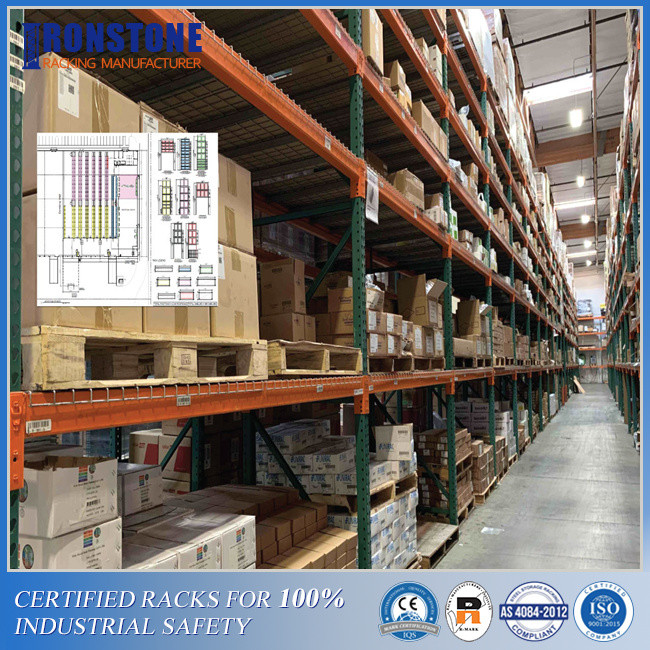

                    Highly Selective Teardrop Pallet Racking System For High Turnover Rate 2







Product packaging





Product packaging is the visual experience of the consumer to the product, the direct and main transmitter of the product personality, and the direct expression of the corporate image positioning. Good packaging design is one of the important means for enterprises to create profits.





Product packaging design with accurate strategic positioning and in line with consumer psychology can help enterprises to stand out among many competing brands and win the reputation of "reliability".

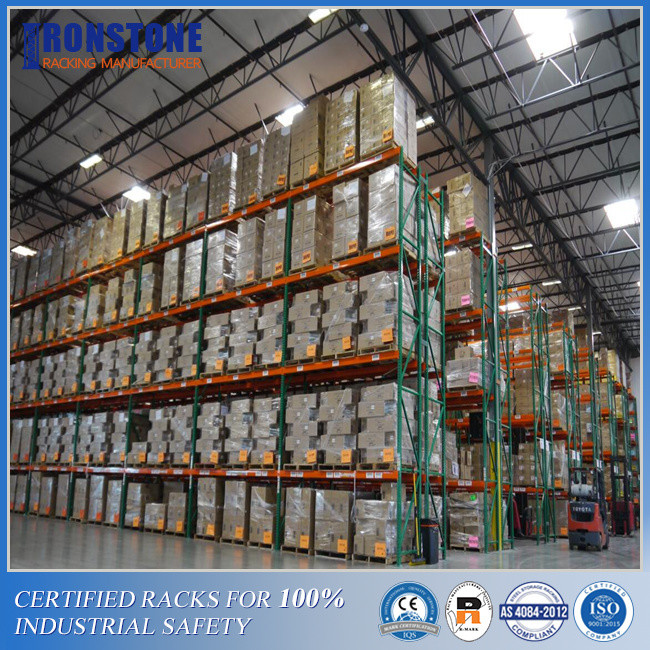

                 Highly Selective Teardrop Pallet Racking System For High Turnover Rate 3





Therefore, for OEM/ODM customers, if you have your own product packaging design drawings, you can provide corresponding product packaging design drawings during the production process. In strict accordance with your packaging requirements, we will help you to classify and package the products directly after production.



Highly Selective Teardrop Pallet Racking System For High Turnover Rate 4
