Compact Very Narrow Aisle Industrial Racking For Warehouse Storage

Compact Very Narrow Aisle Industrial Racking For Warehouse Storage
Features Gallery Product Description Request A Quote
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
Name: VNA Pallet Rack
High Light:

Compact Narrow Aisle Industrial Racking


Compact Very Narrow Aisle Industrial Racking


RAL Code Aisle Racking System

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-SPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Compact Very Narrow Aisle Industrial Racking For Warehouse Storage



Narrow aisle racking, is a kind of storage shelf, because of its shelf system forklift handling channel compared with it is relatively narrow, so the name of narrow aisle racking. The main body of the shelf system is the beam shelf system, and the material handling forklift is limited to a special "three-way stacking forklift". The three-way stacking forklift slides along the established guide rail.



The stacking channel width of the shelf system is slightly greater than the width of the pallet cargo, and the high-density storage requirements are achieved. At the same time, it inherits all the advantages of the beam racking system, all the materials stored by the shelf system are 100% optional, and the forklift can store any pallet at any time. Fast storage efficiency, very high storage density. In today's soaring housing prices, narrow lane racking are liked by many enterprise warehouses.

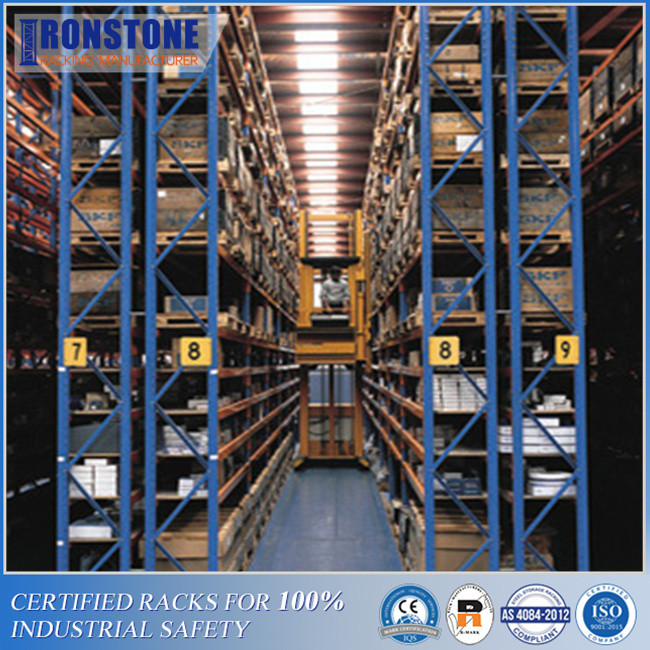

               Compact Very Narrow Aisle Industrial Racking For Warehouse Storage 0








Name Warehouse rack Material High Strength Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available



Features and Advantages of VAN Pallet Rack



Selectivity - 100% access to every SKU or Pallet in the system.



Inventory Rotation - FIFO (First in, first out ordering) is easily achieved through the manual.



Availability - Components are readily available and often in stock.



Low Investment - This system requires among the lowest capital investment on a cost-per-pallet position basis.



High speed through - Because its high average locations used 95%, for 100% accessibility, good stock rotation, and high floor utilization, cooperating with a special forklift truck three-way stacking truck, the speed of goods circulation is higher than the ordinary shelves.



High-density storage -The narrow lane racking aisle channel is much narrower than the general beam rack, greatly improving the space utilization rate of the warehouse Remark.



High altitude work - The speed of goods circulation is higher than the ordinary shelves, the roadway forklift can operate at a height of up to 14 meters, and the electronically controlled stacking crane can even operate at higher places.

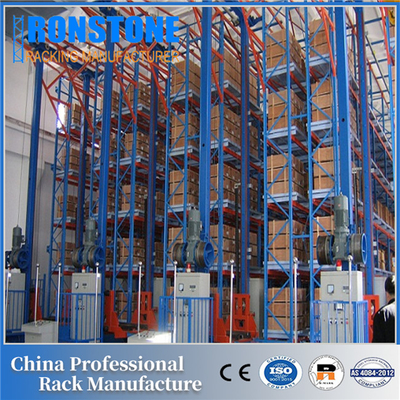

                   Compact Very Narrow Aisle Industrial Racking For Warehouse Storage 1






  •  A large amount of stored goods, frequent entry and exit of goods, and high picking requirements for goods.


  •  The storage and logistics center urgently needs to increase the number of storage sites or require a certain amount of storage.


  •  Logistics efficiency requirements have a relatively high level.


  •  The net height of the warehouse is higher, more than 8M.


  •  The forklift can choose an independent storage forklift, not planning to drive out of the storage forklift to perform other tasks.

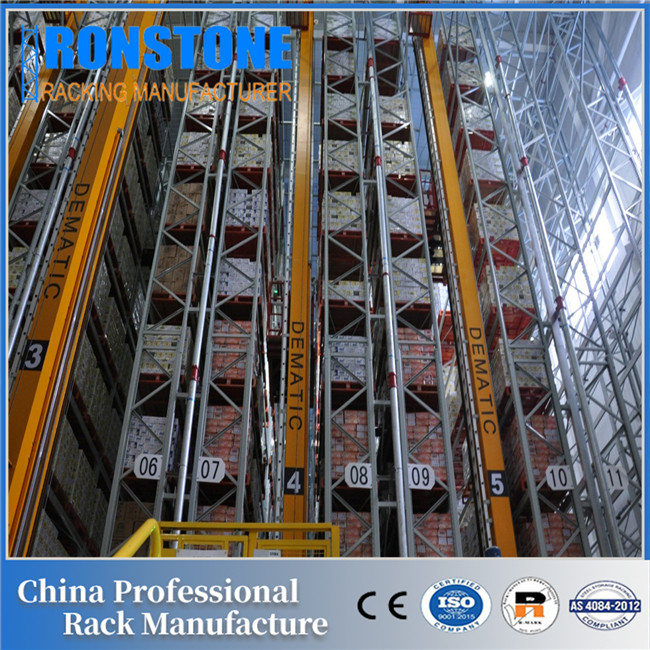

                 Compact Very Narrow Aisle Industrial Racking For Warehouse Storage 2





►Narrow aisle racking forklift is divided into two categories of magnetic line and guide rail, here use the latter of the friends should remember that the first layer needs to be placed on the beam, the beam height can not exceed the height of the guide rail, the height of the goods should be in the range of the guide rail.



►During the storage operations, a special forklift truck (three-way stacking forklift truck) also needs to be used to access it, and the forklift truck will slide along the established guide rail. Because the shelf aisle is relatively narrow, the staff needs to strictly follow the work manual to complete.

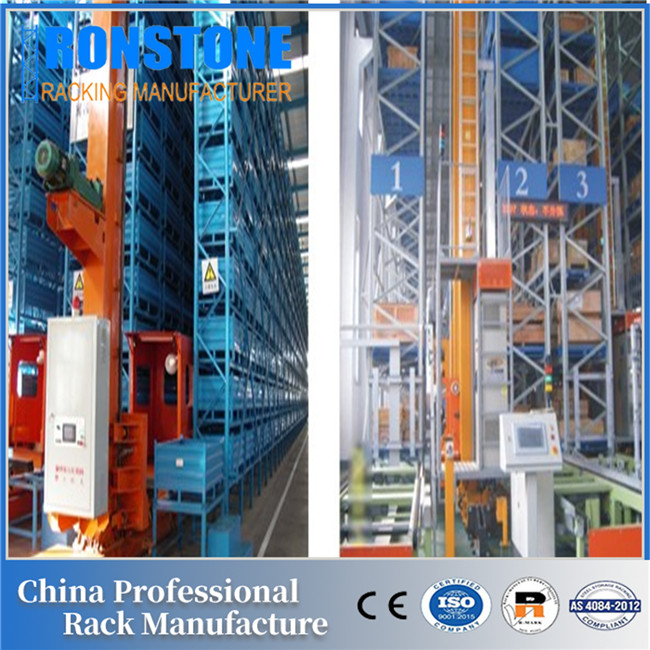

                   Compact Very Narrow Aisle Industrial Racking For Warehouse Storage 3




►Each shelf has its own load limit, and narrow aisle shelves are no exception, so when storing goods, the load of each level should not exceed the maximum load of the shelf, to prevent the shelves from collapsing or tilt.



►Because the channel is relatively narrow, this requires the technology of the forklift master, driving technology should be more skilled, and usually work should be careful and cautious.
