OEM Adjustable Radio Shuttle Metal Industrial Pallet Storage Warehouse Rack

OEM Adjustable Radio Shuttle Metal Industrial Pallet Storage Warehouse Rack
Features Gallery Product Description Request A Quote
Name: Radio Shuttle Pallet Racking System
Material Type: High Strength Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Load Capacity: 1000-5000kg/level
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Customized As Required
Usage Range: Warehouses Requires High Load Capacity And Productivity
Efficiency: High Speed, High Efficiency, Improved Productivity
Stock Rotation: Both FIFO And LIFO Available
Surface Treatment: Powder Coated Or Galvanized, Anti-collision
High Light:

5000kg Radio Shuttle Racking System


Automatic Radio Shuttle Racking System


Q355B radio shuttle pallet racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: HDWS-RSPRS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

OEM Adjustable Radio Shuttle Metal Industrial Pallet Storage Warehouse Rack

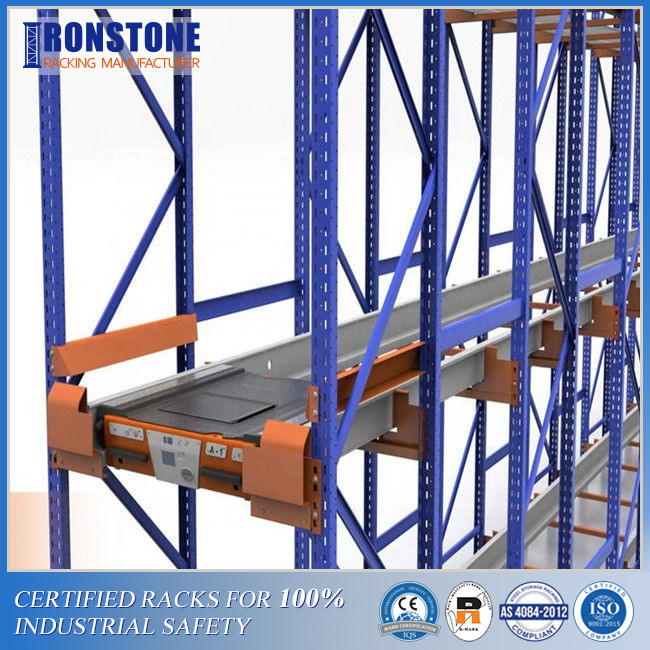

Radio shuttle pallet rack is also called a semi-automated pallet rack, its shape and working principle are used for reference through drive-in rack system. The rack in the work does not need to leave a special channel for forklift, it uses the shuttle car to achieve cargoes in and out.

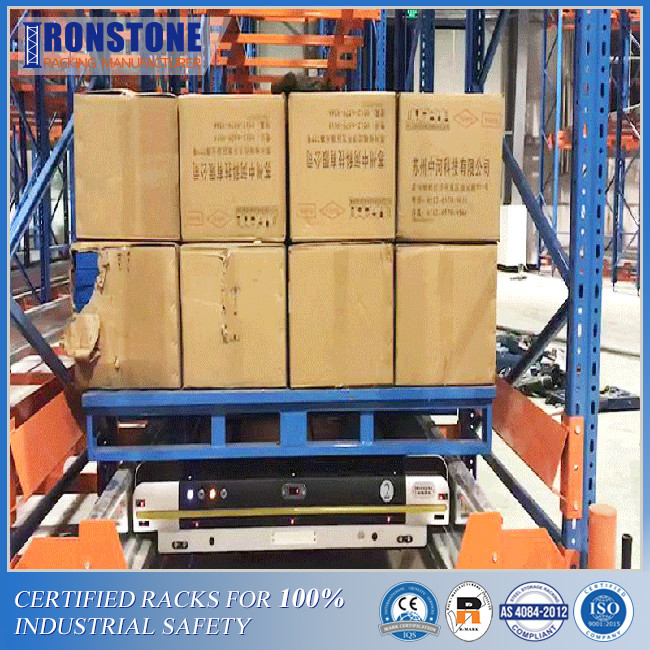

Radio shuttle system is mainly composed of shelves, shuttle cars and forklifts as a high-density storage system, which can greatly improve the utilization rate of the warehouse. At the same time, semi-automatic operation can greatly improve the work efficiency.




                OEM Adjustable Radio Shuttle Metal Industrial Pallet Storage Warehouse Rack 0




Specifications of Radio Shuttle Cart



Item Basic Data Remark
Type High version: TDRII-A-1012-1.5T
Appropriate Pallet Width:1016mm Depth:1219mm Entry: 1016mm
Max Load Capacity Max 1500kg
Move Speed Vmax empty:1.5m/s,Vmax full:1.0m/s
Acceleration ≤0.5m/S2
Motor Brushless servo motor: 48VDC 600W Imported from America
Servo Driver Brushless servo driver Imported
Lift Lift Height 40mm
Motor Brushless motor: 48VDC 500W Imported from America
Positioning/Accuracy Move Positioning:laser sensor Germany P+F/SICK
Pallet Positioning:laser sensor Germany P+F/SICK
Lift Positioning:proximity switch Germany P+F
Object Detection Background suppression photoelectricity Germany P+F/SICK
Control System Programmable controller:S7-200 PLC Germany SIEMENS

Work frequency: 433MHZ;

Communication distance: at least 100m if in open environment.

Imported customized IMT
Two-way communication, with LED display
Temperature:-40℃~+80℃ IP67
Power Supply Lithium iron phosphate power battery Domestic, high quality
Battery Parameter


running time:≥8h;

charging time: 3h;

charge times:1000

Speed Control Mode Servo control, constant torque at low speed
Shuttle Control Mode Remote control
Running Noise ≤60db
Painting Requirements

Frame (black)

Others (light gray)

Ambient temperature

Temperature: 0℃~50℃

Humidity: 5% ~ 95% (no condensation)

Anti-collision Device Polyurethane cushioning strip and anti-collision sensor are installed on the end surface

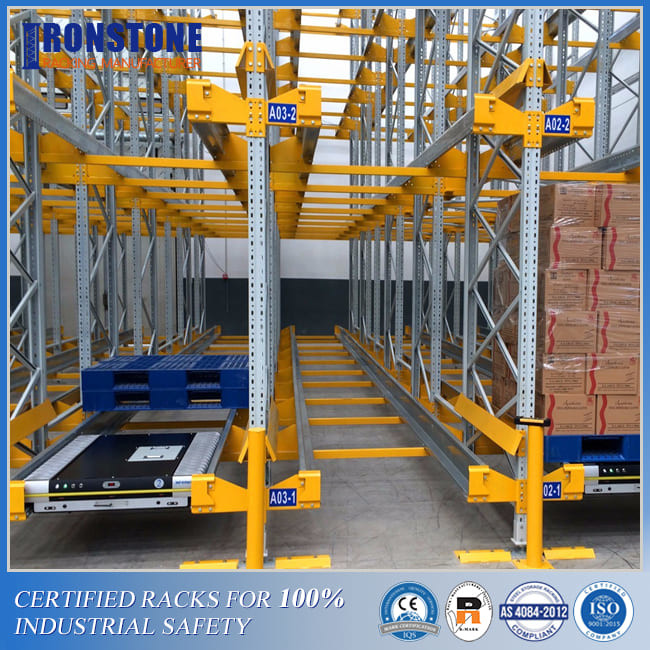

♦ High-density storage, no channel needed, warehouse utilization rate up to 80%~85%. This high-density storage model greatly improves the storage efficiency of warehouse.




High efficiency, greatly reducing the waiting time. The semi-automated shuttle car eliminates human procedures and allows operators to operate remotely from a screen via a WIFI connection, making cargo access more intelligent and concise.




♦ Flexible operation model, inventory management model can be first-in, first-out, also can be last-in, first-out. This makes the way of cargoes access more flexible and convenient.




Better safety, no need for forklift to enter, reducing the collision between shelves and forklift, greatly improving the safety of use. Meanwhile, operators also do not need to directly enter the aisle, but a shuttle car for cargo transportation, avoiding the accident of cargo falling injuries.




Less investment, relatively low requirements for lighting, less investment compared with other types of racks. The semi-automated operating systems are less demanding on the lighting environment of the warehouse, which reduces the investment in lighting equipment and catches greater savings.




              OEM Adjustable Radio Shuttle Metal Industrial Pallet Storage Warehouse Rack 1


OEM ODM service


We can provide OEM ODM service, we know that brand owners care about the quality of products, so our products from the selection of materials, product style design will be strictly in accordance with your product design drawing design. At the same time, we have a professional research and development team. If you need a product with special functions and requirements, you can also communicate your ideas with us.
