Warehouse Picking System Carton Flow Rack with Gravity Roller

Warehouse Picking System Carton Flow Rack with Gravity Roller
Features Gallery Product Description Request A Quote
Features: Fast Stock Rotation With FIFO
Name: Gravity Taken Pallet Flow Racking System
Design: Inclined Rails With Rollers For Semi-automated Pallet Movement
Application: Carton, Boxes, Pallets Storage And Picking
Dimension: H:1.5~3.0Mts,Depth: 0.45~1.2Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: Light Duty, Medium Duty And Heavy Duty
Certification: RMI(R-Mark Certification)/ AS4084-2012 / CE / ISO9001
Components: Upright Frame, Beams, Galvanized Rollers, Bracing
High Light:

6 layers Carton Flow Rack System


CE Carton Flow Rack System


gravity flow rack in warehouse

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: CFR Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Warehouse Picking System —— Carton Flow Rack with Gravity Roller

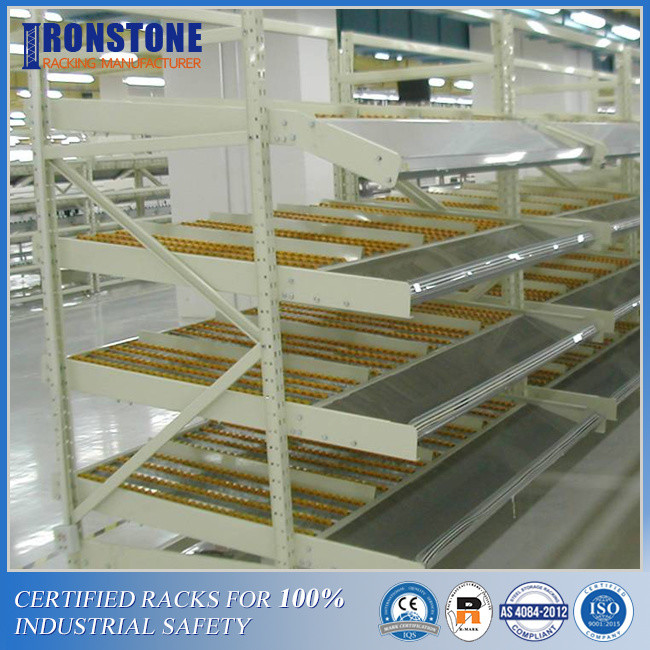

As a kind of gravity flow rack, the carton flow rack system is basically composed of a frame, beam, guide rail and picking plate. The depth and layers of the rack can be customized according to different needs.

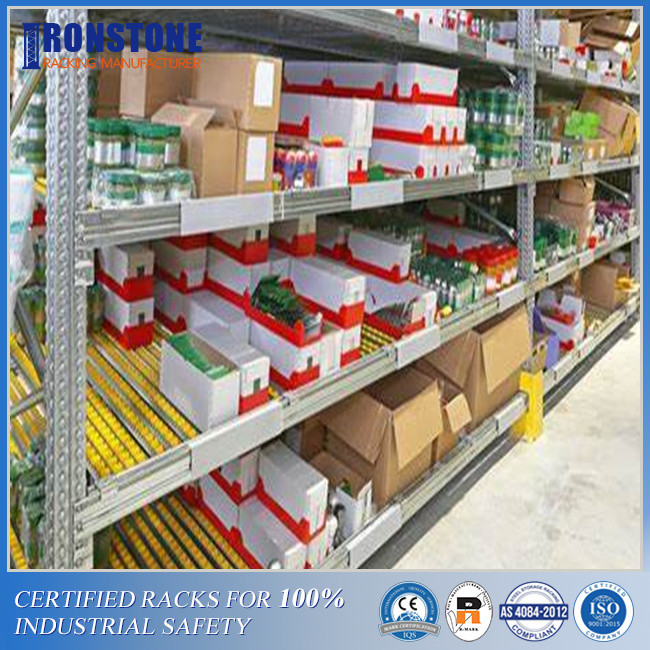

This kind of rack is suitable for the storage of similar cargoes of a few varieties and large quantities. Commonly used sliding containers are turnover boxes, part boxes, and cartons, which are widely used in distribution centers, assembly workshops, and warehouses with high delivery frequency.



Warehouse Picking System Carton Flow Rack with Gravity Roller 0



Pallet Flow Racking System Details



Rack Name Gravity-taken pallet flow racking system with fast stock rotation
Rack Type Dynamic flow with semi-automated stock rotation
Upright Section Customized sizes, commonly used sections: 80*60, 90*60, 90*70, 100*70,120*95
Beam Section Customized sizes, commonly used sections: 80*50/100*50mm
Product Material High Strength Steel/American Standard Steel
Load Capacity Customized load capacity, commonly with 1000/1500kg per pallet load
Storage Layer Customized, 2-6 Adjustable layers
Features FIFO inventory rotation, fast and efficient stock management
Surface finish Powder-coated and galvanized steel for corrosion protection







♦Designed for first-in, first-out (FIFO) inventory management, which is suitable for every kind of direct access goods. Carton flow always keeps items within reach. Inventory is easier to monitor and control since products are fully visible at all times.



♦ Fast installation, easy moving. This kind of rack use the gravity of the products themselves to achieve the goods fall, which could achieve a replenishment of multiple picking.



It is convenient for manual picking and could be installed with the monitor to achieve computer-aided picking work. Compared with traditional medium-sized shelves, the carton flow rack system greatly reduces the tedious degree of manual operation, thus improving work efficiency. Restocking and picking typically offer the greatest opportunity for improving efficiency within order-picking operations.

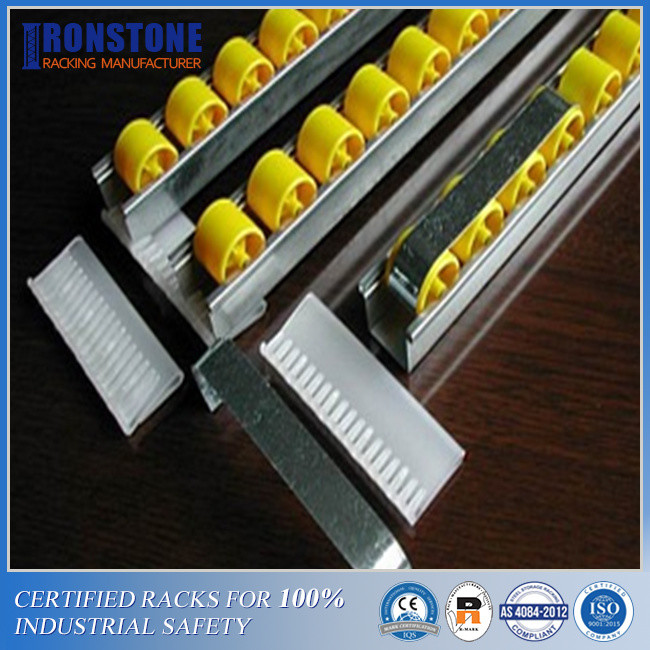

The rack is automatically sliding through gravity, with no power, and low noise. Merchandise is stocked in the rear of the carton flow rack and moves toward the picking station in front on an inclined shelf equipped with a specially designed roller track, which is a very environmentally friendly rack system.



With carton flow rack systems, labor savings of up to 75% can be realized almost immediately. Because items are picked from the front and stocked from the rear, both functions can be performed without interference and with minimized travel.



Warehouse Picking System Carton Flow Rack with Gravity Roller 1
