Industrial Customized Metal Storage Pallet Rack System

Industrial Customized Metal Storage Pallet Rack System
Features Gallery Product Description Request A Quote
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

2000kg Very Narrow Aisle Racking System


Grey Very Narrow Aisle Racking System


FIFO vna racking system

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-SPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Industrial Customized Metal Storage Pallet Rack System

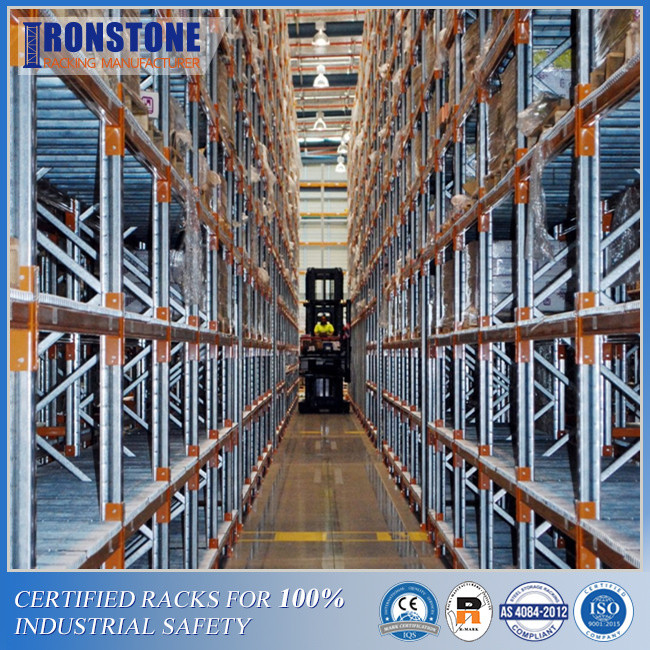

VNA rack system is a kind of selective pallet rack, which is designed for first-in, first-out (FIFO) inventory management. It is named as very narrow aisle rack because the forklift handling channel of its rack system is relatively narrow. It inherits all the advantages of the beam rack system, and the forklift it uses can access any pallet products at any time, which has high storage efficiency and storage density for the warehouse.




Name Warehouse rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available






1. Large quantity of stored cargo, frequent cargoes in and out, and high selection requirements for cargoes. VNA rack, which has higher height space, can store more cargo than ordinary pallet racks.




2. Use an independent storage forklift (do not use a storage forklift to carry out other tasks outdoors). VNA rack system has special requirements for forklifts. The width of the forklift equipped with VNA shelves can just match the width of the aisle, which is different from ordinary forklifts, and their structure is not completely the same in some aspects.




3. Logistics efficiency which requires a higher level. VNA rack has a high storage utilization rate and the storage efficiency is high, The smaller forklift has more flexibility, it could finish bulk task at limited time.




4. The available net height of the warehouse is higher than 8 meters. If the height of a warehouse is higher than the common warehouse, it can take this rack system, which can better use the space above the warehouse.

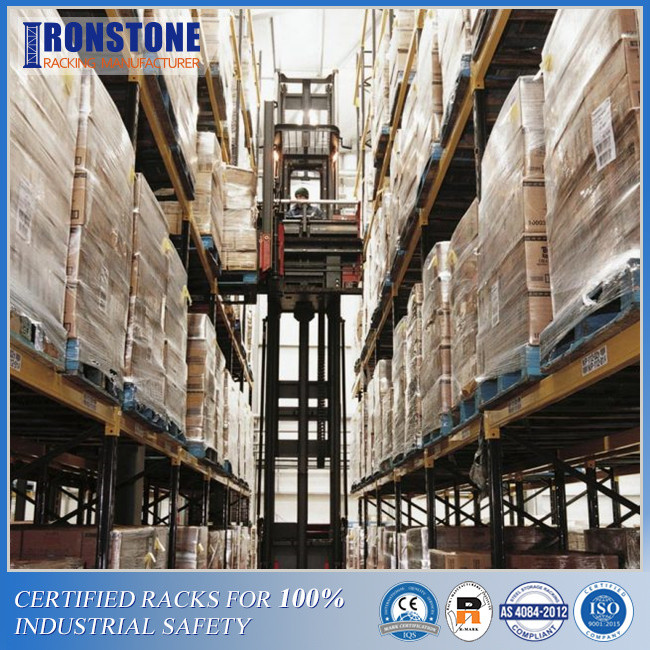

                Industrial Customized Metal Storage Pallet Rack System 0






1. VNA rack should avoid being top-heavy in use and should follow the principle of placing light goods at the top and heavy goods at the bottom, avoiding accidents that heavy products falling from the top.



2. Anti-collision: during the operation of the forklift, it should be handled gently as far as possible to prevent impact on the rack. Column protector plays an important role in this aspect.



3. Because the aisle is relatively narrow, this has requirements on the skills of forklift drivers, their driving skills should be more skilled.



4. When there are cargoes above the rack, the operator should not directly enter the bottom of the rack in case of accidents.

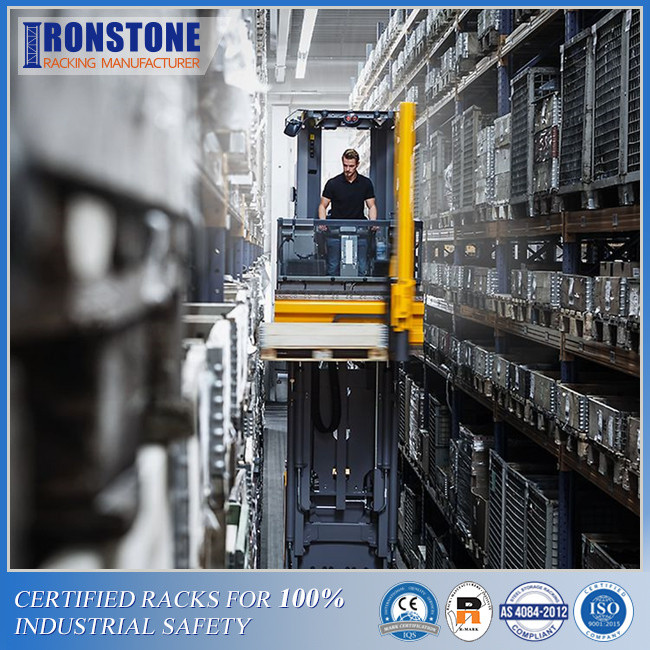

                 Industrial Customized Metal Storage Pallet Rack System 1
