Powder Coated Very Narrow Aisle Pallet Racking System for Warehouse Storage

Powder Coated Very Narrow Aisle Pallet Racking System for Warehouse Storage
Features Gallery Product Description Request A Quote
Name: Very Narrow Aisle Pallet Racking System
Material: Roll-formed Steel Structural Steel
Feature: Anti-rust, Corrosion-protection
Application: High-Bay Warehouse With Limited Space
Forklift Type: Trilateral Forklift
Aisle Width: 1.8-2.3m
Load Capacity: 500kg~4000kg/level
Certification: RMI / AS4084-2012 / CE / ISO9001
Design: Customized According To Your Demands, Free CAD Drawing
High Light:

Trilateral Forklift VNA Narrow Pallet Racking


Narrow Pallet Racking 2m Aisle Width


Q355 Storage Racking System

Basic Infomation
Place of Origin: China
Certification: RMI, AS4084, ISO9001, CE
Model Number: EH-VNA Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Economic High-Density VNA Racking System for Industrial Warehouse Storage



VNA racking refers to very narrow aisle pallet racking, usually used in warehouses to optimize available space. These systems have aisle widths ranging from 1.5 - 2.0 meters, depending on the depth of the pallet is stored. This means that these systems can free up an average of 45% of the building space.



In addition, these systems optimize the height of the warehouse and therefore maximize the available space, as unused vertical areas will become viable storage areas. In addition, this will allow the number of goods stored on pallets to grow and your stock to increase if necessary without the need to relocate to a larger warehouse.




Name Very narrow aisle pallet racking Material

Roll-formed steel

Structural steel

Tiers of each bay 2~15 tiers per bay Color Customized color as client requests
Upright Frame Customized height Load Capacity Customized: ranged from 500~3000kg per beam level
Beam Width Customized: ranged from1000mm~3900mm Upright Depth Customized: ranged from 700mm to 1500 mm
Surface treatment Epoxy powder coated or galvanized steel for corrosion prevention
Package type Plastic stretch film, corrugated paper, cartons, plywood bars, crates, and metal strips, the customized package is also allowable
Assemble & installation Free installation support, and detailed assembly instructions are available



Main Applications of VNA Racking System



VNA racking is particularly recommended for companies whose warehouses have one of the following characteristics:


  • Warehouses that need direct and immediate access to each unit load/pallet, but at the same time, need to optimize the space available.


  • Warehouses that require a large amount of stock.


  • Warehouses that do not have a large footprint, but where the possibility of installing the system is high.



This pallet racking system is used by many different types of industries for companies that have minimal storage capacity in their warehouses but need to increase it within the available space.




Advantages of VNA Racking System


  • Selectivity - 100% access to every SKU or pallet in the system


  • Stock rotation - FIFO (first-in-first-out ordering) is easily achieved through manual processes or warehouse management systems


  • Availability - components are always available and often in stock


  • Investment - this system requires a minimum capital investment on a per-pallet location basis

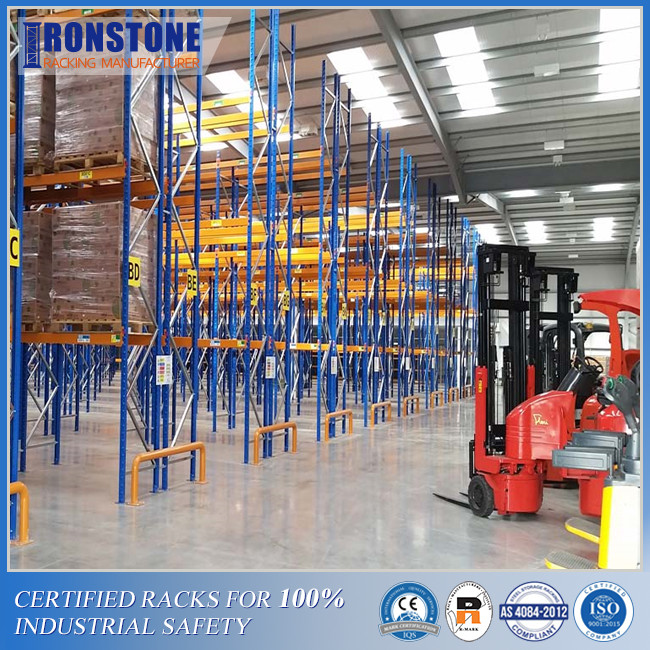

             Powder Coated Very Narrow Aisle Pallet Racking System for Warehouse Storage 0




In order to use these systems effectively, specialist trucks such as articulated or VNA trucks must be used. Very narrow aisle trucks do not turn and can therefore only move vertically. A rail or line guidance system is required to mount the truck to the system's function. Articulated trucks, however, do not require a guidance system. These trucks need to be used because the aisle width is too narrow for a standard truck to operate.

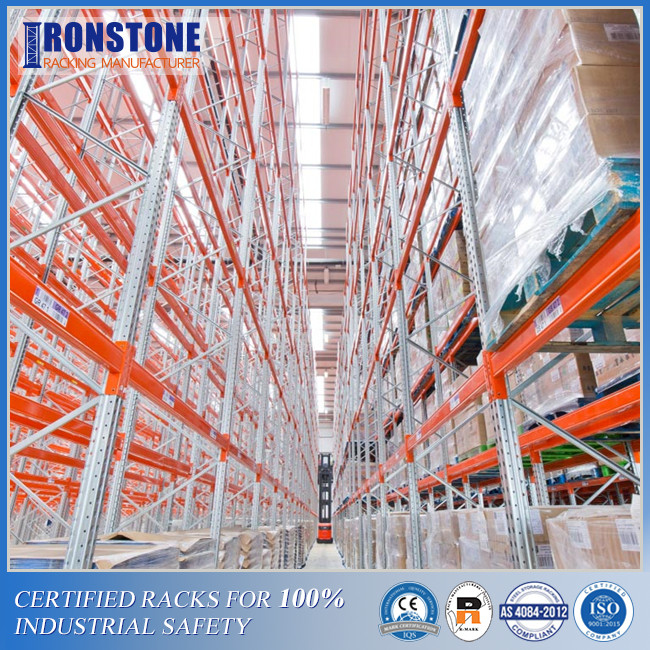

                  Powder Coated Very Narrow Aisle Pallet Racking System for Warehouse Storage 1




In addition to specialist trucks, there are other requirements for very narrow racking systems. One of these consists of a flat, preferably concrete floor. This ensures the safety of the racks and employees, as on uneven surfaces the racks can be hit by trucks, creating a health and safety hazard.
