Cost-Effective Very Narrow Aisles Pallet Racking System for Space-Saving

Cost-Effective Very Narrow Aisles Pallet Racking System for Space-Saving
Features Gallery Product Description Request A Quote
Certification: RMI / AS4084-2012 / CE / ISO9001
Name: Compact Very Narrow Aisle Pallet Racking
Steel Type: High Quality Q355 Steel With High Tensile
Character: Narrowed Working Aisle, High Density Storage
Application: Warehouse With High Ceiling And Flat Ground
Forklift Type: VNA Forklift, High Bay Forklift
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Service: Customized With Warehouse Layout, Free CAD Drawing
High Light:

Q355 Very Narrow Aisle Racking System


Very Narrow Aisle Racking System ISO9001


ISO9001 VNA Pallet Racking System

Basic Infomation
Place of Origin: China
Model Number: VNA Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

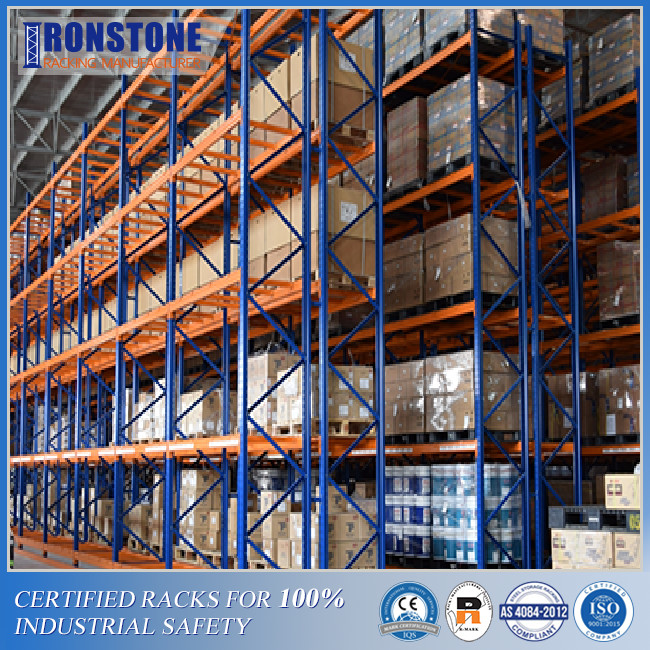

Compact Very Narrow Aisle Racking System Of Industrial Palletized Cargoes Storage





Brief Introduction



Very narrow aisle pallet racking is very compact storage solution for palletized product with reduced laneway width. Forklifts working in VNA racking system has limited activity space compared to those vechicles in standard pallet rack. In this case, special made VNA forklifts are indispensable for effective material handling.




Details of VNA Pallet Racks



Rack type VNA racking,very narrow aisle pallet racking Material

Roll formed steel

Structural steel

Beam levels Customized levels ranged from 2~15 Beam width Customized: ranged from1000mm~3900mm
Upright frame Customized height ranged from 5000mm to 15mmm Load capacity Customized load ranged from 500~3000kg per beam level
Base plates Welded and bolted are optional Upright depth Customized depth ranged from 700mm to1500mm
Surface treatment Epoxy powder coated and galvanized surface are both available for corrosion protection
Package type Standard package include plastic stretch film, corrugated paper, cartons, plywood bars, crates, and metal strips, customized package is available as customer's request
After-sale services Free installation support, detailed assemble instructions are available




Cost-Effective Very Narrow Aisles Pallet Racking System for Space-Saving 0




Main Structures



1.Upright frame height is commonly ranged from 5000mm to 15000mm, limited by warehouse ceiling height and forklift maximum reach height.



2. VNA racking beam length isually ranged from 1000mm to 3300mm, depending on storage requirement and overall safety factors.



3. The aisle width for forklift operation can be decreased to 1500mm to 2000mm according to material handling trucks and warehouse layout.



4.Guild rails are about 200 mm high manufactured with angle steels.





Main Virtues




1. As one kind of beam-type racking, very narrow aisle pallet racking systems posess all the features that standard pallet racks have such as selectivity, accessibility, flexibility and adaptability.



2. VNA racking offers more pallet positions compared to common pallet racks in same space.



3. Very narrow aisle pallet rack is cost-saving with less wasted room.




Minor Faults



1. Commonly used forklifts are not suitable for VNA racking, narrow aisle forklift must be used with relatively high price.



2. Very narrow aisle racking systems with constrained space require higher vehicle operational skill of workers.



3. Guide rails should be installed facilitating fast and safe material handling.



4. For space saving, VNA pallet racking system is higher and tighter organized leaving stricter demands over warehouse layout and fire suppression.




Suitable Suitation



1. Warehouses and facilities require higher storage density.



2. Storage products have large quantity with fast stock rotation.



3. The warehouse ceiling height is over 8 meters.





Design Cases from Ironstone

Cost-Effective Very Narrow Aisles Pallet Racking System for Space-Saving 1Cost-Effective Very Narrow Aisles Pallet Racking System for Space-Saving 2
Cost-Effective Very Narrow Aisles Pallet Racking System for Space-Saving 3
Cost-Effective Very Narrow Aisles Pallet Racking System for Space-Saving 4
