ODM Industrial Very Narrow Aisle Pallet Racking System

ODM Industrial Very Narrow Aisle Pallet Racking System
Features Gallery Product Description Request A Quote
Material Type: High Strength Steel/American Standard Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: H:2~16.5Mts,Depth: 0.6~1.5Mts, Width: 1~3.9Mts, Customizable As Request
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

AS4084 VNA Storage System


VNA Storage System 100% Selectivity


1500kg VNA Warehouse Storage System

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-SPS
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High-Density VNA Pallet Racking Warehouse Storage System with 100% Selectivity




Very narrow aisle pallet racking is a compacted configuration of selective pallet racking. Compared with selective pallet racking, VNA pallet racking enhances the storage density without sacrificing selectivity. If you plan to store a large number of various products within limited space, the VNA pallet racking system is an advisable solution.



Name Warehouse rack Material

Roll-formed steel

Structural steel

Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available

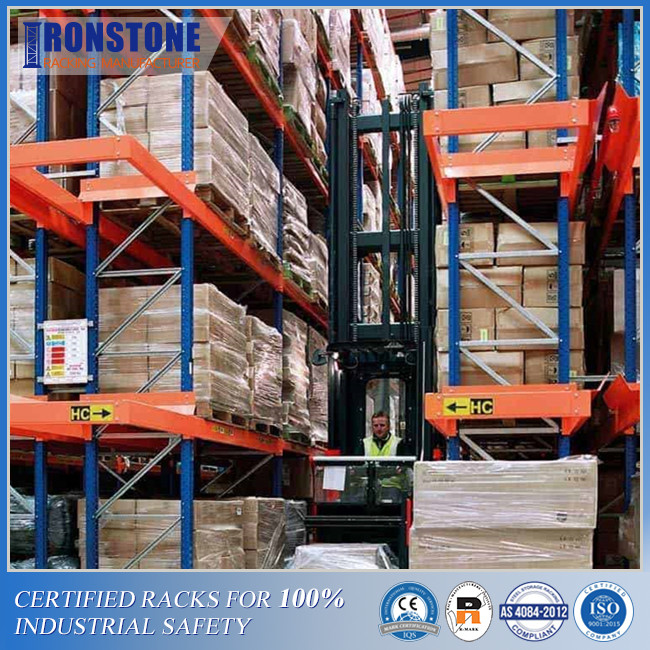

ODM Industrial Very Narrow Aisle Pallet Racking System 0



Features of very narrow aisle pallet racking system:


  • Narrow working aisles

As its name implies, the working aisles in the VNA pallet racking system are much narrower than those in other systems. In order to free up more space for storage, the width of the aisles is reduced by up to 1500mm.

  • High bay racking system

VNA pallet racking system maximizes utilization of both floor space and vertical space. Floor space is at a premium for warehouses, so optimizing the headroom is especially critical. VNA pallet racks are often used in tall warehouses to make best use of height clearance.

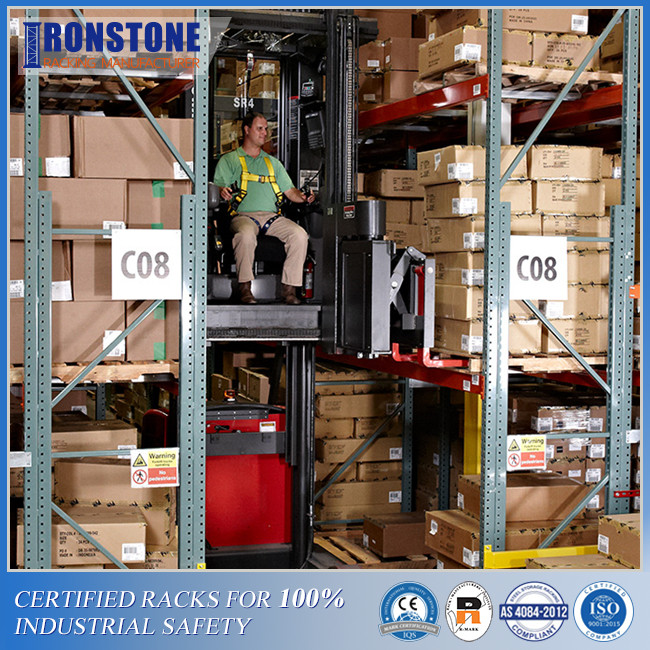

  • Specialized forklift

Standard forklifts are not suitable for such narrow aisles in the system. Thus, a specialized forklift, called atrilateral turret truck, is necessary for daily storage and retrieval. Trilateral turret truck is able to maneuver in narrow aisles and reach up to 15 meters.

  • First in, first out

Every pallet can be accessed directly in the system, so stored products adhere to the principle of first pallet in, first pallet out, favorable for storing products with short shelf life.

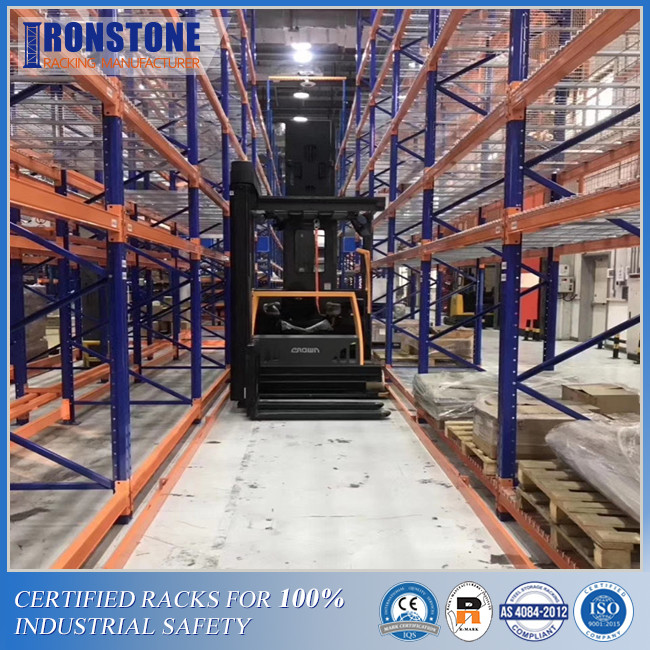

ODM Industrial Very Narrow Aisle Pallet Racking System 1



Benefits of very narrow aisle pallet racking system:


  • 100% Selectivity

Similar to the selective pallet racking system, VNA pallet racks are arrayed in single row or back-to-back row, making every pallet accessible without moving away other pallets. So it is suitable for storing a great variety of products.

  • High-density storage

By means of decreasing aisle width and increasing rack height, space utilization rates are raised greatly, allowing a significant increase in storage capacity. Pallets are stacked intensively to satisfy increasing storage needs.

  • Cost-effective

Taking full advantage of vertical space can store more pallets in a one-floor space area, saving the cost of per pallet position. Although it requires more expensive material handling equipment, it is much less compared with the cost of expanding the warehouse.
