ODM Very Narrow Aisle Racking System RMI Warehouse Pallet Racking System

1*20ft
MOQ
USD$0.85/KG
Price
ODM Very Narrow Aisle Racking System RMI Warehouse Pallet Racking System
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Very Narrow Aisle Pallet Racking System
Material: Roll-formed Steel Structural Steel
Feature: Anti-rust, Corrosion-protection
Application: Warehouse With Limited Space
Forklift Type: Trilateral Forklift
Aisle Width: 1.8-2.3m
Load Capacity: 500kg~4000kg/level
Certification: RMI / AS4084-2012 / CE / ISO9001
Design: Customized According To Your Demands, Free CAD Drawing
High Light:

ODM Very Narrow Aisle Racking

,

Narrow Aisle Racking System RMI

,

RMI Warehouse Pallet Racking System

Basic Infomation
Place of Origin: China
Brand Name: IRONSTONE
Certification: RMI, AS4084, ISO9001, CE
Model Number: HB-VNA Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Customizable Very Narrow Aisle Pallet Racking System for High Bay Warehouse







Very Narrow Aisle Pallet Racking (VNA) is a variation of the standard adjustable pallet racking system, compressed into a small area. This creates a high-density storage system, allowing the storage capacity of the warehouse to be increased without the need for additional space.

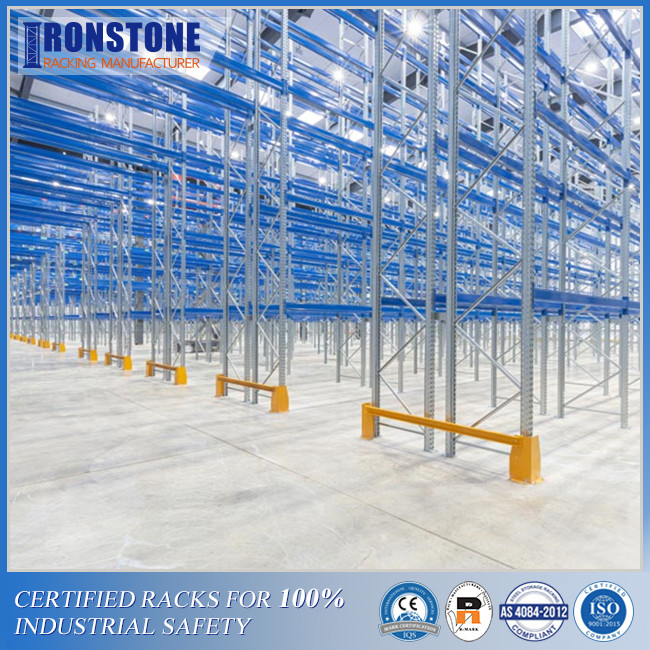

               ODM Very Narrow Aisle Racking System RMI Warehouse Pallet Racking System 0





The very narrow aisle pallet racking makes optimum use of floor area and roof height, providing high-density storage, 100% accessibility and good stock turnover. The pallet racks can be placed very tightly as they are loaded and unloaded using a side-loading forklift truck. This makes for very narrow aisles and ensures efficient use of space. With very narrow aisle pallet racking, stock rotation and access is not compromised and the amount of product stored in the warehouse is maximized.







Name Very narrow aisle pallet racking Material

Roll-formed steel

Structural steel

Tiers of each bay 2~15 tiers per bay Color Customized color as client requests
Upright Frame Customized height Load Capacity Customized: ranged from 500~3000kg per beam level
Beam Width Customized: ranged from1000mm~3900mm Upright Depth Customized: ranged from 700mm to1500mm
Surface treatment Epoxy powder coated or galvanized steel for corrosion prevention
Package type Plastic stretch film, corrugated paper, cartons, plywood bars, crates, and metal strips, the customized package is also allowable
Assemble & installation Free installation support, and detailed assembly instructions are available





Advantages of Very Narrow Aisle Pallet Racking



  • Minimizing storage potential in the aisle space



  • Take advantage of the building's up to 14m vertical height with manual upward capability to reduce wasted space



  • All pallets are easy to load and unload by crane



  • Less product damage and picking errors occur compared to bulk stacking



  • 100% accessibility and good stock turnover



  • 45% more floor space through wide aisle solutions



  • Stacking heights can be up to twice as high as some other racking systems

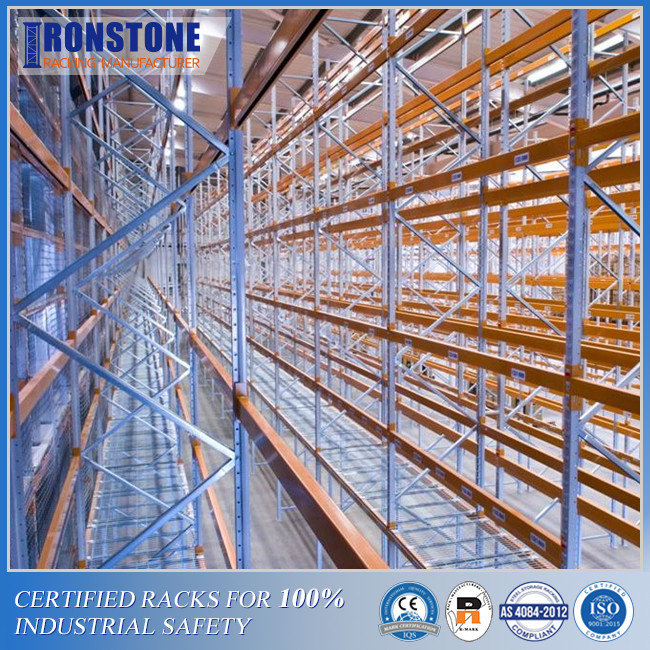

                ODM Very Narrow Aisle Racking System RMI Warehouse Pallet Racking System 1







Typically, a very narrow aisle pallet racking system offers 45% more floor space and up to twice the stacking height of a wide aisle solution. In addition, not only does very narrow aisle racking increase the use of vertical space for pallet storage, but it maintains the advantage of selective racking, ensuring 100% selectivity.





Aisle floor guidance is mandatory and design interfaces between the individual systems are required. As forklifts are guided in the aisles, the risk of damage is minimized, thus reducing maintenance costs. Very flat floors, close tolerance racking, evenly dimensioned pallets and stock positioning systems are necessary for a successful narrow aisle system.

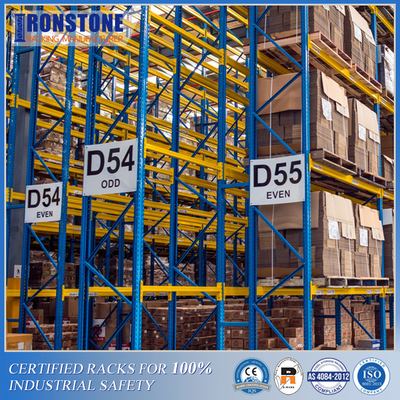

              ODM Very Narrow Aisle Racking System RMI Warehouse Pallet Racking System 2





Specialized high-lift fork rotary material handling equipment operates in very narrow aisles, providing high-density and individual pallet access. Very flat floors, tight tolerance racking, evenly dimensioned pallets, and stock positioning systems are all prerequisites for a successful narrow aisle system.
