Sophisticated Handling Feature VNA Industrial Racking with High Security Coefficient

1*20ft
MOQ
USD$0.85/KG
Price
Sophisticated Handling Feature VNA Industrial Racking with High Security Coefficient
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Very Narrow Aisle Pallet Racking System
Material: High Strength Steel
Feature: Efficient Product Turnover, Cost-saving Solution
Application: Warehouse With High Ceiling And Flat Floor
Forklift Type: Trilateral Forklift
Load Capacity: 500kg~4000kg/level
Certification: RMI / AS4084-2012 / CE / ISO9001
Design: Customized With Warehouse Layout, Free CAD Drawing
High Light:

RMI Very Narrow Aisle Racking

,

Narrow Aisle Racking System 3 Tiers

,

3 Tiers vna racking system

Basic Infomation
Place of Origin: China
Brand Name: IRONSTONE
Certification: RMI, AS4084, ISO9001, CE
Model Number: HD-VNA Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

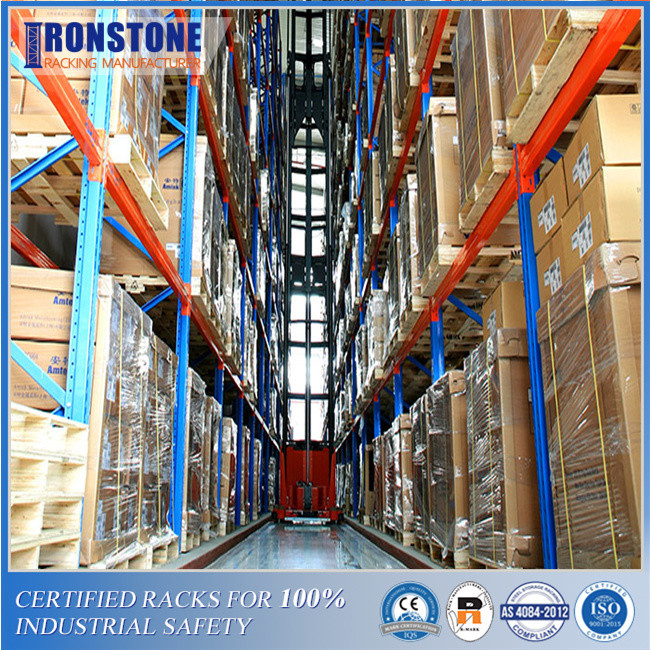

Heavy Duty Warehouse Very Narrow Aisle Pallet Racking System for Industrial Storage







Narrow aisle racking is a space-efficient pallet storage system. It enables companies to achieve greater storage capacity in their warehouses and is perfect for areas with limited floor space, while enabling efficient access to each pallet for picking, handling or retrieval.





Very Narrow Aisle Racking (VNA) is a system where the racks are installed in a configuration that places each row of racks as close together as possible, while still allowing easy access to each pallet. The aisles between each row of racking are designed to be as small as possible, which means that the racking can be placed on the largest possible floor surface for highly dense and space-efficient pallet storage.







Name Very narrow aisle pallet racking Material

Roll formed steel

Structural steel

Tiers of each bay 2~15 tiers per bay Color Customized color as client requests
Upright Frame Customized height Load Capacity Customized: ranged from 500~3000kg per beam level
Beam Width Customized: ranged from1000mm~3900mm Upright Depth Customized: ranged from 700mm to1500mm
Surface treatment Epoxy powder coated or galvanized steel for corrosion prevention
Package type Plastic stretch film, corrugated paper, cartons, plywood bars, crates, and metal strips, customized package is also allowable
Assemble & installation Free installation support, detailed assemble instructions are available

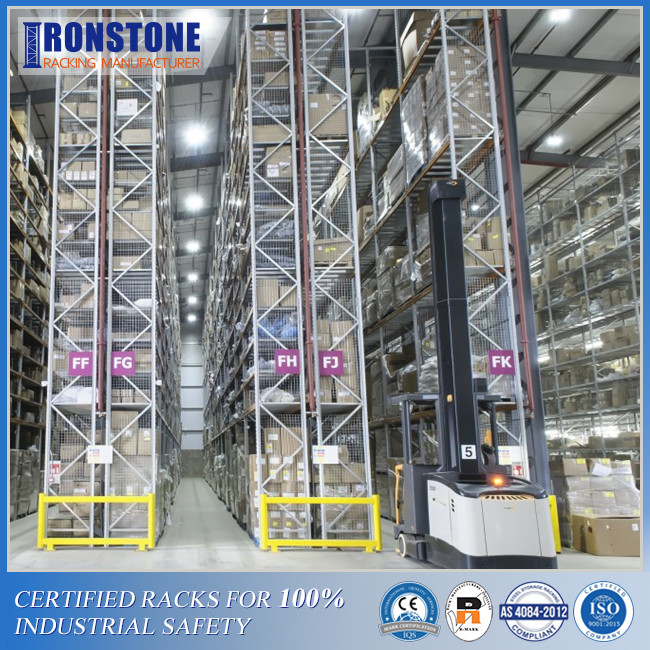

How Does Very Narrow Aisle Pallet Racking Work?





By allowing forklift trucks to operate in aisles half the width required for conventional adjustable beam pallet racking, narrow aisle racking means that more space is available for racking and storage. IRONSTONE's narrow aisle racking also maximizes the height at which goods can be stacked.





This combination of full-height and closely spaced rows makes good use of the space available in the facility. Narrow aisle racking works well on good quality, flat warehouse floors that are on a solid substrate to withstand heavy traffic.





                Sophisticated Handling Feature VNA Industrial Racking with High Security Coefficient 0

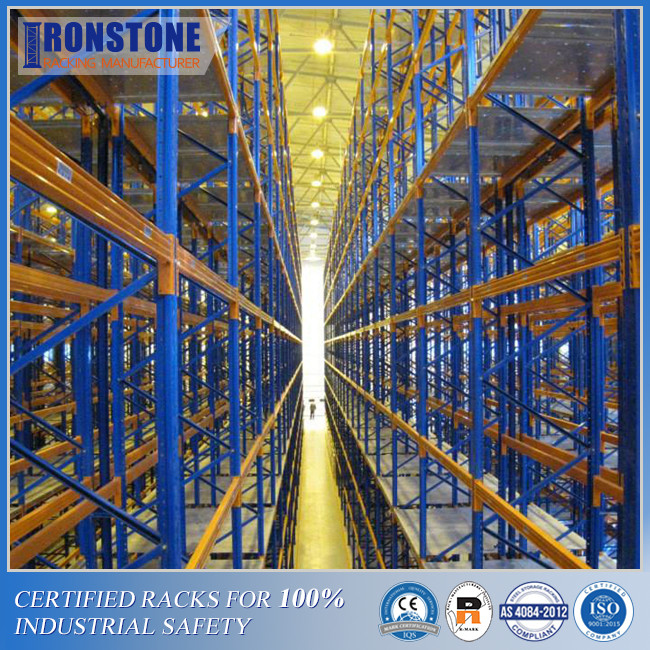

Benefits Of Very Narrow Aisle Pallet Racking System:





Very narrow aisle racking, offers benefits mainly related to increased storage density and efficiency, so they are particularly beneficial to companies wishing to achieve high productivity levels in limited floor space.



  • High density storage, maximizing floor space and roof height



  • Tight pallet storage, reducing aisle width by up to 50%



  • 100% accessibility per pallet using narrow aisle trucks



  • Allows for fast throughput and picking speeds



  • Provides good stock turnaround



  • Reduced damage rates as narrow aisle trucks are usually guided by wires or rails





              Sophisticated Handling Feature VNA Industrial Racking with High Security Coefficient 1







Narrow Aisle Forklifts & Handling





Narrow aisle racking systems often require the use of specialized forklifts which require less working space than standard counterbalance forklifts. However, the additional investment that narrow aisle forklifts may require to improve storage and picking rates can often be recouped and can be achieved.
