Name: Radio Shuttle Pallet Racking System
Material Type: High Strength Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Load Capacity: 1000-5000kg/level
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Usage Range: Automated Product Storage And Retrieval Warehouses
Key Component: Radio Shuttle Cart
Efficiency: High Speed, High Efficiency, Improved Productivity
Stock Rotation: Both FIFO And LIFO Available
Maintenance: Regular Checks And Charges For Shuttle Cart
High Light:

LIFO Radio Shuttle Racking System


Radio Shuttle Racking System 3000kg


3000kg Pallet Shuttle Racking

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: RSPRS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

High Compact Radio Shuttle Pallet Racking System for Warehouse Storage




Radio Shuttle Pallet Racking System is a semi-automated storage solution based on lane storage, combining Drive-in, Pushback, and Live storage systems. The shuttle pallet is controlled remotely by the user and moved from one storage lane to another by the forklift operator. It moves goods independently by manually or automatically optimizing the lanes for storage, loading, and unloading phases.



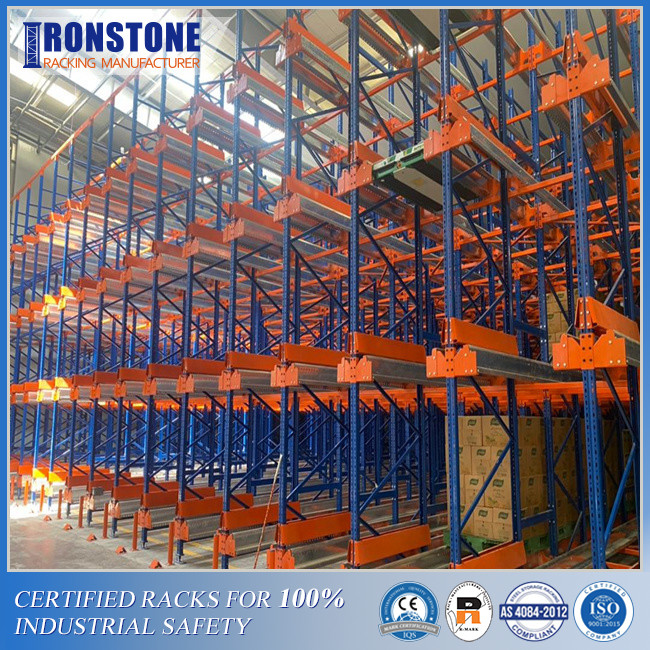

                 High Density Radio Shuttle Pallet Rack System for Improved Stock Management 0



The radio shuttle pallet racking system is ideal for storing high-density pallets of reference and bulk storage products. The use of the radio shuttle significantly reduces the maneuvering time per operation and optimizes the storage capacity of the compact system. The system uses shuttles that move independently of the racks themselves, which means that there is no need for forklifts to reach the inside of the storage aisles.




Specifications of Radio Shuttle Cart





Basic Data



High version: TDRII-A-1012-1.5T


Appropriate Pallet

Width:1016mm Depth:1219mm

Entry: 1016mm

Max Load Capacity

Max 1500kg




Vmax empty:1.5m/s,Vmax full:1.0m/s






Brushless servo motor: 48VDC 600W

Imported from America

Servo Driver

Brushless servo driver



Lift Height




Brushless motor: 48VDC 500W

Imported from America


Move Positioning:laser sensor

Germany P+F/SICK

Pallet Positioning:laser sensor

Germany P+F/SICK

Lift Positioning:proximity switch

Germany P+F

Object Detection

Background suppression photoelectricity

Germany P+F/SICK

Control System

Programmable controller:S7-200 PLC



Work frequency: 433MHZ;

Communication distance: at least 100m if in open environment.

Imported customized IMT

Two-way communication, with LED display

Temperature:-40℃~+80℃ IP67

Power Supply

Lithium iron phosphate power battery

Domestic, high quality

Battery Parameter


  running time:≥8h;

  charging time: 3h;

  charge times:1000


Speed Control Mode

Servo control, constant torque at low speed


Shuttle Control Mode

Remote control


Running Noise



Painting Requirements

  Frame (black)

  Others (light gray)


Ambient temperature

  Temperature: 0℃~50℃

  Humidity: 5% ~ 95% (no condensation)


Anti-collision Device

Polyurethane cushioning strip and anti-collision sensor are installed on the end surface


Advantages of Radio Shuttle Pallet Racking System



  • Crash-free storage


  • Optimal space utilization due to low rack compartment height


  • Sufficient height and width for multiple pallet aisles


  • Reduced loading and unloading times and increased depth storage capacity as forklift trucks do not need to drive into the racking structure


  • Shuttle cart is equipped with a battery that regenerates energy during deceleration and can therefore operate for up to 8 hours on a single charge

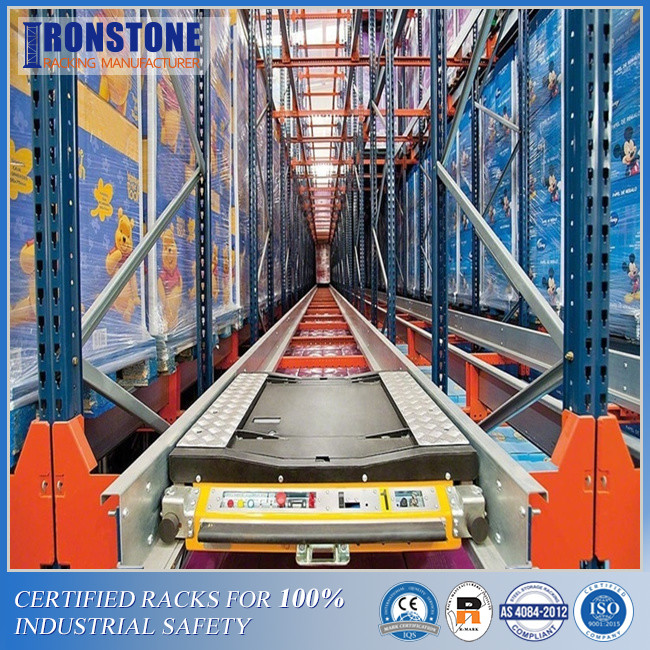

The forklift truck places the goods on top of the radio shuttle, which moves along the track and places the goods in the correct position. Several sensors precisely control the radio shuttle. The forklift operator can easily give all entry and exit commands via the remote control unit.



As there is no forklift in the lanes and due to the building's construction system, there is virtually no risk of accidents. Another advantage of the system is that there is less damage to the steel structure because the forklift trucks do not reach the racks.



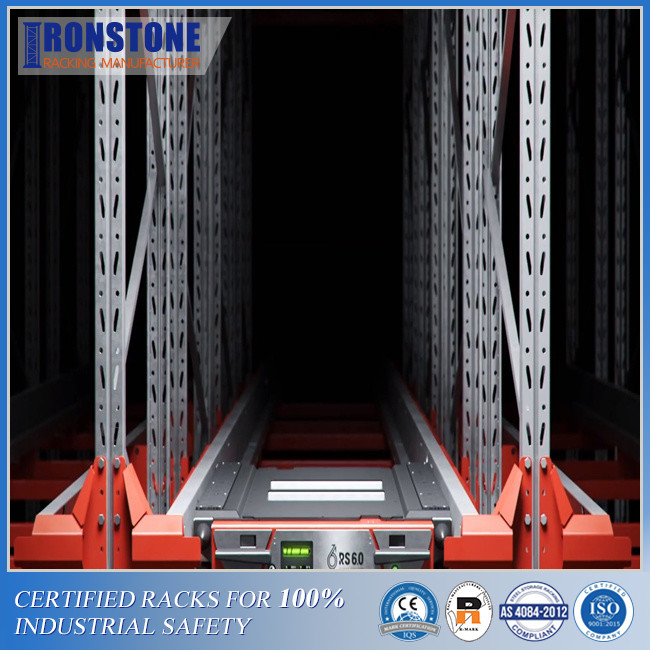

               High Density Radio Shuttle Pallet Rack System for Improved Stock Management 1



Our radio shuttle systems are an efficient way of space storing bulk goods such as food, beverage, and other palletized items which are usually entered by car, pushed back, or stored in a pallet live racking system. It is particularly suitable for high volume-low SKU applications.



Our radio shuttle system converts car-free pallet racking into an automated storage solution by storing items with an automatic shuttle running on a support track.



               High Density Radio Shuttle Pallet Rack System for Improved Stock Management 2



Pallets are loaded onto the front rails from where the shuttle lifts the goods and transports it to the furthest downstream point. Built-in sensors on the shuttle racking system detect the position of the next pallet and place the new load at a predetermined, but adjustable, distance from them back to the start face. Unloading is simply the opposite operation.



Pallet shuttle movement is controlled via remote control, allowing the forklift operator to move to the next task while the shuttle moves the pallet to the correct storage location. The shuttle system is serviced by a standard forklift truck.
