ODM Motorized Storage Metal Pallet Shuttle Racking For Increases System Efficiency

ODM Motorized Storage Metal  Pallet Shuttle Racking For Increases System Efficiency
Features Gallery Product Description Request A Quote
Name: Radio Shuttle Racking System
Material Type: High Strength Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Special Designed According To Your Requirement
Load Capacity: 1000-5000kg/level
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Design: Professional Design For Your Requirement And Offer You Free CAD Drawing
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

2500mm Upright Shuttle Radio Racking


Shuttle Radio Racking 3000kg


3000kg pallet shuttle racking system

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: IMPSRSS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

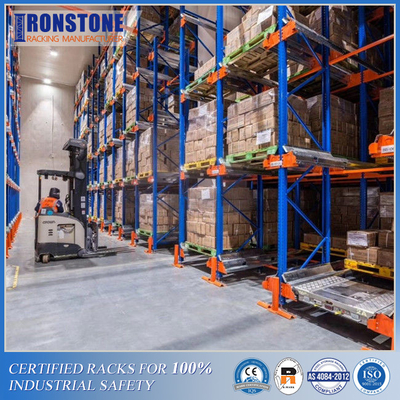

Industrial Multi-functional Pallet Storage Radio Shuttle Racking System




Radio shuttle pallet racking system is a semi-automated storage solution for handling goods within the lane similar to a car rack set-up. The pallet shuttle system eliminates the need for forklift access to the aisles and therefore provides a cost-effective and time-saving storage solution.



The system is a semi-automated system for storing goods in side-by-side pallet aisles or rows. Goods are placed in the aisles by remotely controlled automated pallet shuttles (battery trolleys), eliminating the need for forklift access to the pallet racks themselves and saving manpower, equipment, time, and huge maintenance costs. Outside the racks, pallet handling can be done by standard forklift trucks.




Name Pallet racking Material High Strength Steel
Beam levels 2~15 tiers per bay rack Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available as well as dispatching installation engineer for project installation at site.


Features of Radio Shuttle Pallet Racking System



  • The efficient system with compact storage for low SKU warehouses.
  • No need for dedicated forklift trucks.
  • Reduces risk and stress for warehouse operators and increases system efficiency.
  • Optimized storage, loading, and unloading phases.
  • Low levels of damage and risk to equipment - loading machinery and racks.
  • IRONSTONE pallet shuttle systems can simplify any operation by reducing labor and equipment costs while providing a safer, less stressful working environment.


               ODM Motorized Storage Metal  Pallet Shuttle Racking For Increases System Efficiency 0



In addition to providing similar capabilities in terms of cubic storage in push-back racking systems and drive-in racking systems; utilizing the high ceilings of modern industrial and storage units, radio shuttles are a more viable solution for deep storage.



Push-back racking systems and drive-in racking systems will encounter selectivity problems when reaching certain heights. FIFO pallet life requires very consistent pallet placement to avoid "crabs", which become more difficult to reach as high as you go.


                 ODM Motorized Storage Metal  Pallet Shuttle Racking For Increases System Efficiency 1



This motorized shuttle solves these problems by allowing pallets to be placed at the front of the rack without the need to pull on the mast or push. The pallet can be placed on the shuttle at the front of the rack and reliably transported further into the track without the risk of crabs or capture.



When driving slows down to operate higher up the storage track to go (more care is needed to position it correctly at height); the radio shuttle solves these problems for you, the shuttle itself does the positioning work for you, ensuring the best position every time. All that needs to be done is to place the pallet well between the rails at the front of the rack.



OEM ODM service


We can provide OEM ODM service, we know that brand owners care about the quality of products, so our products from the selection of materials, and product style design will be strictly in accordance with your product design drawing design. At the same time, we have a professional research and development team. If you need a product with special functions and requirements, you can also communicate your ideas with us.
