Wireless Remote Control Warehouse Radio Shuttle Racking With High-Density Storage

Wireless Remote Control Warehouse  Radio Shuttle Racking With High-Density Storage
Features Gallery Product Description Request A Quote
Name: Pallet Storage Radio Shuttle Racking System
Material Type: Q355 B Steel
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Customized As Required
Load Capacity: 1000-5000kg/level
Certifications: (RMI) R-Mark Certification/ AS4084/ CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Design: Professional Design For Your Requirement And Offer You Free CAD Drawing
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

RMI Radio Shuttle Racking System


Radio Shuttle Racking System 2000kg


2000kg 5 Tier Automatic Pallet Storage

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI (R-Mark), AS4084, ISO9001, CE
Model Number: PSRSRS Model
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

Automatic Pallet Storage Radio Shuttle Racking System with High Productivity




Pallet Storage Radio Shuttle Racking System is a semi or fully-automated storage solution for handling goods in the aisle, similar to the Drive-In system. The pallet shuttle system eliminates the need for forklift access to the loading area and therefore provides a cost-effective and time-saving solution.



It is a high-density pallet storage system making it easier to load and unload goods thanks to a motorized wagon called the Pallet Shuttle. The system uses the shuttle to move independently inside the rack, meaning that the forklift does not need to reach the inside of the storage aisle.




Name Pallet racking Material High Strength Steel
Beam levels 2~15 tiers per bay rack Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Frame Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assemble & installation Detailed assembly instructions are available as well as dispatching installation engineer for project installation at site.




Advantages of Radio Shuttle Pallet Racking System


  • Efficient compact storage system for warehouses with low stock levels.


  • Optimized storage, loading, and unloading phases.


  • Low risk to warehouse operators.


  • Low risk or damage to machines and racks for loading equipment.


  • No special forklift trucks are required.


  • Very high throughput.


  • Attention to load handling.


  • Less chance of damage to racks due to the fact that fork lights do not enter the loading area.



Applications of Radio Shuttle Pallet Racking System



Radio shuttle pallet racking system is ideal for storing large, heavy items with low quantities of different items. The shelf storage system combines the advantages of block storage and shelf storage.


  • FMCG companies


  • Food production


  • Meat Processing


  • Beverage production & distribution


  • Cold storage


  • All drive-in/drive-thru racking users

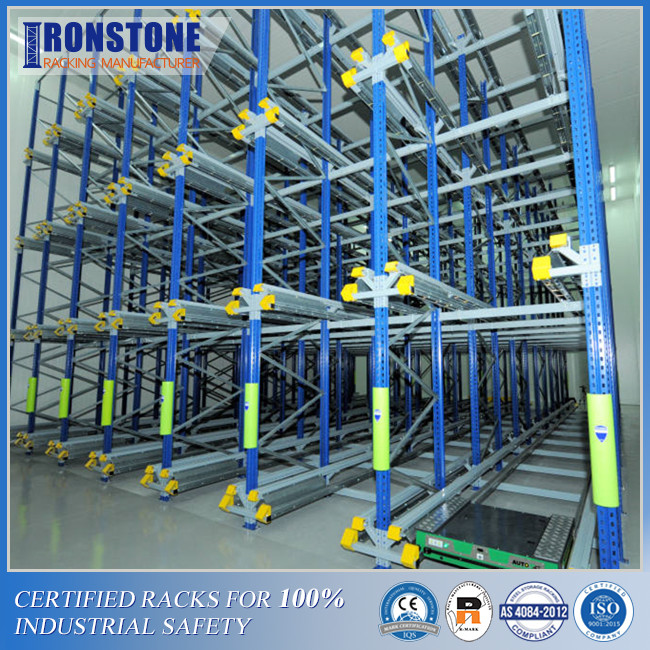

        Wireless Remote Control Warehouse  Radio Shuttle Racking With High-Density Storage 0



The operator can perform all the procedures for storing and picking up pallets using just one remote control. Jay Storage will provide you with the best quality radio shuttle pallet racking, satellite racking, and aisle storage systems. Please contact us for more details.



With an independently charged radio shuttle, the pallets can be run on rails under manual radio control. The shuttle can reach underneath the pallet, drive the goods deeper into the pallet and lift the goods off the rails to the front goods exit.

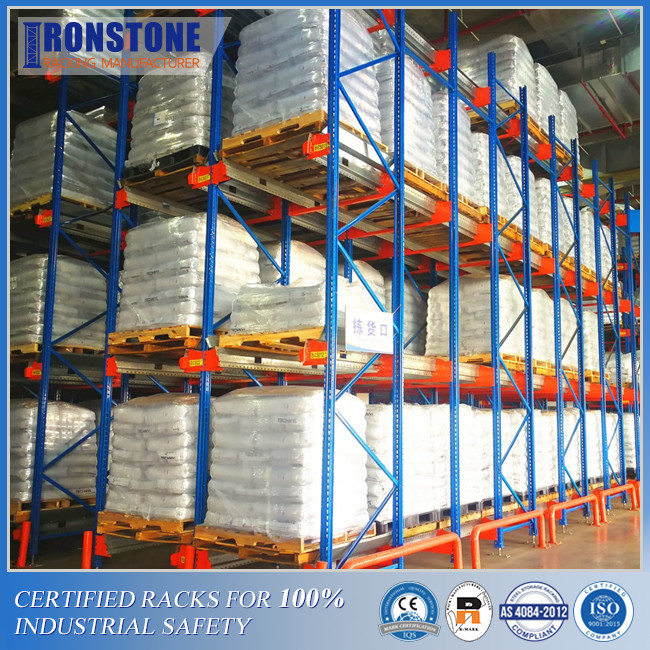

               Wireless Remote Control Warehouse  Radio Shuttle Racking With High-Density Storage 1



A forklift truck can unload the goods from the rails or transfer them to another rail. One forklift truck can match all the radio shuttles in most cases, taking into account factors such as length and number of aisles. With an average space utilization of 90%, the radio shuttle system meets the needs of single categories and large volumes.
