Compact Very Narrow Aisle Pallet Racking System For Warehouse Storage Solution

Compact Very Narrow Aisle Pallet Racking System For Warehouse Storage Solution
Features Gallery Product Description Request A Quote
Name: VNA Pallet Racking System
Material Type: High Strength Steel-Q355
Color: RAL Code: Blue, Green, Orange, Yellow, Grey, Galvanization, Etc.
Usage Range: General Warehouse Distribution, Logistics, Cold Warehouse Storage, E-Commerce, Manufacturing, Food&Beverage, Retail, 3PL, Automotive, Record Storage
Dimension: Customized According To Your Demands
Load Capacity: 500kgs~4000kgs/Layer, 4000kgs~30000kgs/Bay
Certifications: RMI / AS4084-2012 / CE / ISO9001
Safety Accessories: Wire Decks, Column Protectors, Pallet Supports, Etc.
Products Package: Steel Strip, Stretch Film, Corrugated Paper, Bubble Film, Plywood Pallets
Services: Free CAD Design, ODM&OEM, Transportation, Project Installation, Systems Maintenance Etc.
High Light:

ASRS Very Narrow Aisle Racking System


1000mm Very Narrow Aisle Racking System


1000mm vna storage system

Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: Ironstone
Certification: RMI, AS4084, ISO9001, CE
Model Number: VNA-HD
Payment & Shipping Terms
Packaging Details: Plastic stretch film, corrugated paper, Cartons, Plywood Pallet, bubble film, and metal strips, etc.
Delivery Time: 15~25 days
Payment Terms: L/C, T/T
Supply Ability: 3000 Tons per month
Product Description

VNA High Density Selective Pallet Racking System for Industrial Warehouse




Very narrow aisle pallet racking is a traditional selective pallet racking configuration with narrower aisles that can be used with specially designed turret trucks. Although these trucks are usually more expensive than standard forklift trucks, using narrow aisles allows you to store more in less space, resulting in significant savings in construction costs and providing the option of an automated storage and retrieval system (ASRS).




Name Warehouse rack Material Steel
Shelf levels 2~15 tiers per shelving unit Color (RAL Code) Green, Orange, Blue, Yellow, Etc.
Upright Frame Height 2500mm~15000mm Weight Capacity 500~3000kg per level
Beam Width 1000mm~3900mm Depth 700mm~1500mm
Finish Epoxy Powder Coated for corrosion prevention
Usage Cargos Storage
Package Plastic stretch film, corrugated paper, Cartons, wooden bars, crates, and metal strips, etc.
Accessories Bolts and nuts, Upright protectors, decks, etc.
Certification RMI/AS4084-2012 /CE/ ISO9001
Delivery time 7~25 days as per order quantity
Assembly & installation Detailed assembly instructions are available

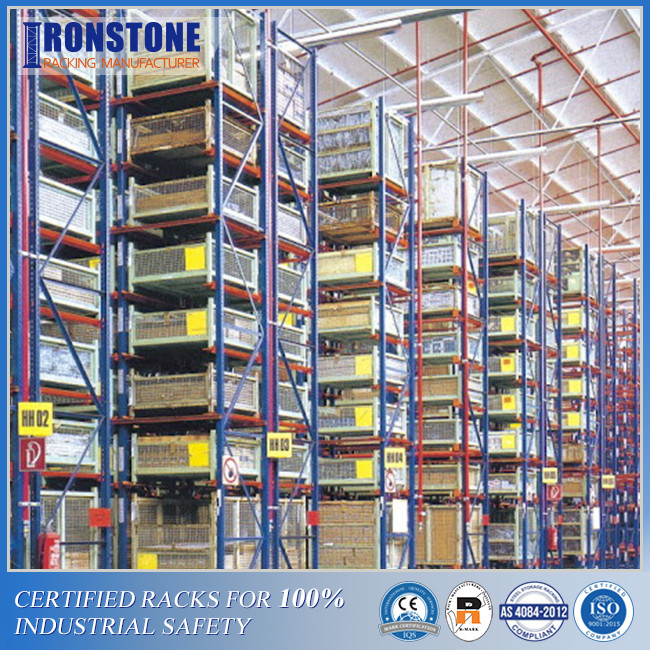

Compact Very Narrow Aisle Pallet Racking System For Warehouse Storage Solution 0




Benefits of Very Narrow Aisle Pallet Racking System:



  • Ideal for lower-throughput items and bulk reserve storage.


  • Suitable for high-bay applications.


  • Minimises aisle width and increases net area utilisation.


  • Save on potential building costs to create extra storage in small areas.


  • Provides options for automated storage and retrieval systems (ASRS).



Our Very Narrow Aisle Pallet Racking System Comprises:



  • Racks of varying width, depth and thickness


  • A universal range of beam sections with three or four tang welded connectors


  • Unique diamond shaped slot profile provides stronger and more effective interlocking between vertical and horizontal beams


  • Strong frame support


  • Frame end protection for safe operation


  • Front and rear upright protection to minimise damage


Compact Very Narrow Aisle Pallet Racking System For Warehouse Storage Solution 1




Features of Turret Truck:



Narrow aisle turret trucks allow free access to aisles in narrow aisle pallet racking systems, bringing selective benefits without compromising storage density. Some turret trucks are designed to reach heights of up to 30 metres, utilising the full height of the building and providing a very dense pallet storage solution.



In the Very Narrow Aisle (VNA) pallet racking system, the space for separating parallel rack units is significantly reduced and pallets are placed and retrieved using side-loading forklifts. This minimises the size of the aisle between racks and can reduce aisle space by approximately 40%. These pallet racking systems are available in the original slot or teardrop style columns and can be used for heights up to 40 feet.



Forklifts can operate on aisles less than 5 feet wide, which makes VNA storage racks possible. The pallet racking system offers a significant reduction in floor space and generally lowers storage costs. Pallets are 100% selective in very narrow aisle systems. With VNA racking, access to stock is not compromised and the number of products stored in the warehouse is maximised. It is an effective way to increase the amount of pallet storage in a given area.
